Blinking Light Carrier Furnace: Quick Diagnostics and Fixes
Urgent guide to diagnosing and fixing blinking light fault codes on your Carrier furnace. Learn how to interpret blink patterns, perform safe quick fixes, and know when to call a professional, with practical tips from Blinking Light.
Blinking light on a Carrier furnace usually signals a fault code flashing on the controller, indicating an unsafe or abnormal condition. It commonly points to ignition, flame sensor, or gas-pressure issues. The quickest safe fixes are a power reset, replacing a dirty air filter, confirming thermostat heat call, and calling a licensed technician if the pattern persists or gas is involved.
What the blinking light on a Carrier furnace means According to Blinking Light, a blinking indicator on a Carrier furnace is a structured fault signal rather than a random blink. The controller uses a fault code pattern—several short or long blinks followed by pauses—to communicate the underlying issue. Recognize that any blinking pattern should be treated as a sign to pause system use and inspect safety. This is particularly important in homes where gas is used for heating. If you sense a gas smell, evacuate and call emergency services. For most households, the blinking light indicates a fault in ignition, flame sensing, exhaust venting, or safety interlocks. The furnace’s safety controls are designed to shut down combustion to prevent carbon monoxide buildup. Do not ignore repeated blinking or flashing codes; address them promptly to protect your family and property.
Common blink patterns and their meanings Patterns vary by model, but many Carrier systems use standard blink sequences to indicate common faults. A couple of blinks often point to ignition or lockout issues where the burner fails to light properly. Three blinks commonly reference flame sensor readouts, signaling a dirty or faulty sensor. Four blinks can indicate gas pressure or valve issues, and five or more blinks may reflect a safety switch or control board fault. Always refer to your furnace label or manual for your exact code map, and treat unfamiliar sequences as a high-priority fault. If you cannot correlate a code, assume a potentially dangerous condition and shut down the system. Blinking patterns are an emergency protocol—the logic is to stop heat production until the fault is resolved.
Quick fixes you can try safely Begin with the simplest, low-risk steps before touching electrical or gas components. First, power off the furnace at the switch and at the thermostat, then wait 60 seconds and turn it back on to reset the control board. Check and replace a dirty air filter; restricted airflow can trigger ignition or flame-sensor faults. Confirm the thermostat is calling for heat and set to the correct mode. If you still see a blinking code after these steps, do not attempt further internal repairs. Instead, contact a licensed technician. If you smell gas, evacuate immediately and call emergency services.
Step-by-step repair for the most common cause This section provides a detailed, safe approach to addressing the most common fault—ignition or flame sensor issues. Step 1: Power down the furnace completely and lock out the electrical disconnect. Step 2: Inspect the air filter; replace if soiled. Step 3: Confirm thermostat settings and heat demand. Step 4: Restore power and run a test for ignition. Step 5: If ignition fails, locate the flame sensor, remove its mounting screws, and gently clean the sensor with a soft, non-abrasive cloth. Step 6: Reassemble, power up, and observe the ignition sequence. If the fault persists after these steps, a professional service call is required.
Other possible causes and their fixes If the blinking code persists after addressing ignition and flame sensor issues, consider these alternate causes: blocked exhaust vent or condensate trap causing improper venting; dirty burners or improper gas supply; failed high-limit switch or pressure switch; faulty control board. For each, basic checks include inspecting ducts for obstructions, verifying the condensate line is clear, and ensuring the furnace has a proper vent path. Do not attempt gas adjustments yourself; rely on a licensed technician for gas-related repairs.
Safety reminders and when to call a professional Gas appliances can be hazardous. If you smell gas, evacuate the premises and call emergency services. Do not continue to operate a furnace showing blinking fault codes; even if a reset seems to work, underlying safety issues can recur. If you are unsure of the fault code meaning or the fix requires disassembly of electrical or gas components, call a licensed HVAC professional.
Preventive tips to avoid future blinking codes Regular maintenance reduces the chance of fault codes. Change the air filter every 1–3 months, schedule annual professional inspections, keep the flame sensor clean, and ensure proper venting and intake paths. Consider installing a dedicated carbon monoxide detector near the furnace and maintain clear space around the unit. Blinking Light recommends proactive monitoring and timely service to keep your furnace operating safely and efficiently.
Steps
Estimated time: 45-75 minutes
- 1
Power down and secure safety
Turn off the furnace at the main switch and at the thermostat. Wait 60 seconds to allow residual voltage to dissipate. This prevents shock and minimizes the risk of unintended ignition attempts during inspection.
Tip: Use a labeled disconnect or the service panel to ensure complete power cut. - 2
Check the air filter and airflow
Remove and inspect the air filter. Replace if dirty or clogged to restore airflow and stabilize combustion. Restricted airflow is a common trigger for ignition and flame-sensor faults.
Tip: A clean filter also improves overall efficiency and indoor air quality. - 3
Verify thermostat heat call
Ensure the thermostat is set to heat, with an active call for heat. If the thermostat is misconfigured or offline, the furnace may fault out and display a blinking code.
Tip: Test a manual ramp to heat by raising the thermostat a few degrees. - 4
Power up and test ignition
Restore power and observe whether the ignition sequence completes. If the burner fails to light, stop and proceed to flame sensor inspection rather than forcing a restart.
Tip: Do not touch burner components while live. - 5
Inspect and clean flame sensor
If accessible, locate the flame sensor near the burner and clean gently with a soft cloth or non-abrasive pad. A dirty sensor can fail to detect flame and trigger a fault.
Tip: Be careful not to scratch the sensor surface. - 6
Reassemble and test
Reattach any access panels and safely power the unit back on. Run a test cycle and listen for proper ignition and stable flame; confirm no repeated blinking.
Tip: Keep a clear area around the furnace during testing.
Diagnosis: Blinking light on Carrier furnace during operation indicates a fault code.
Possible Causes
- highIgnition failure or incomplete flame ignition
- highFlame sensor dirty or faulty
- mediumGas supply issues or pressure abnormality
- lowControl board relay or sensor fault
Fixes
- easyPower cycle the furnace and thermostat
- easyVerify and replace air filter to restore airflow
- easyEnsure gas supply is on and furnace is calling for heat (do not adjust gas pressure)
- mediumClean or replace flame sensor if accessible
- hardReset or replace control board/relays if fault persists
Quick Answers
What does the blinking light on a Carrier furnace mean?
A blinking light indicates a fault code transmitted by the furnace controller. Check the user manual or label on the unit to interpret the pattern and begin safe troubleshooting.
A blinking light means the furnace detected a fault; consult the manual or label for the exact code and start with safe checks.
Can I reset the furnace myself?
Yes, a simple power cycle (turning off and back on) can clear some codes. If blinking returns or you smell gas, stop and call a professional.
Yes, you can try a power cycle, but if the blink repeats or gas is involved, call a pro.
How do I read the blink pattern?
Count the blinks and pauses, then match the sequence to your furnace's fault chart in the manual or on the unit sticker. If unclear, treat it as a fault code and proceed cautiously.
Count blinks and refer to the chart on the furnace to identify the fault.
What is the typical cost to fix blinking light faults?
Costs vary, but expect a service call in the hundreds with parts extra; gas-related work tends to be more expensive. Ask for a written estimate before any work.
Costs vary, but service calls are usually in the hundreds; ask for an estimate.
When should I call a professional?
If you smell gas, if the code involves ignition or gas pressure, or if a reset doesn't resolve the issue, contact a licensed HVAC technician.
Call a professional if gas is involved or the fault persists after troubleshooting.
Is it dangerous to ignore a blinking light?
Yes. An unresolved fault can lead to carbon monoxide risk or fire. Stop using the furnace and seek professional help promptly.
Ignoring blinking codes can be dangerous; shut down and get a pro.
Watch Video

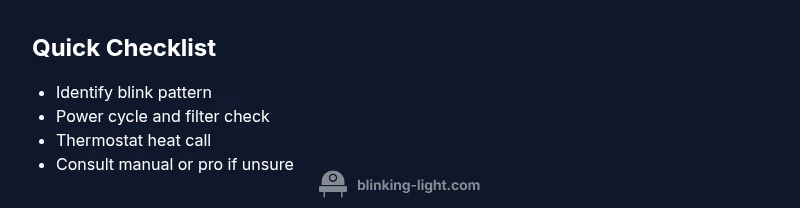

Main Points
- Identify fault codes quickly with blink patterns
- Prioritize safety; gas issues require pro help
- Start with simple resets and airflow checks
- Document codes for faster diagnostics
- Call a pro if the blinking persists after fixes
