Orange Blinking Light on Furnace: Troubleshooting Guide
Urgent guide to diagnose and fix the orange blinking light on furnace. Learn safety steps, common causes, diagnostics, and when to call a pro.
An orange blinking light on furnace almost always signals a safety or ignition issue that needs attention. According to Blinking Light, this is often linked to a flame sensor, pressure switch, or dirty filter. Start with a simple reset, replace a clogged filter, and verify exterior venting; if the light continues, contact a licensed HVAC technician.
What the orange blinking light on furnace Signals
The color and pattern of a furnace indicator light carry specific meanings. An orange blink typically means the system detected a fault that prevented safe ignition or operation. These faults are often tied to safety sensors, flame sensor, gas valve operation, or airflow limits. In many homes, the orange blink is a warning rather than a full failure: the furnace will not run continuously, but it signals that something needs attention. The furnace relies on safety interlocks, flame sensing, and carbon monoxide detectors to protect occupants. If you see an orange blink, treat it as urgent. Do not ignore it or attempt risky work. First ensure you can access a safe space around the furnace, verify the area is well-ventilated, and check whether CO detectors indicate a problem. If you see a CO alert, evacuate immediately and call emergency services. According to Blinking Light, orange blinks are commonly linked to flame sensor issues, restricted venting, or a dirty air filter, and often improve with basic maintenance or a reset when no gas smell is present.
wordCount": 230
Steps
Estimated time: 60-90 minutes
- 1
Ensure safety and power off
Turn off the furnace at the service switch or breaker. If you smell gas or detect CO, leave the area immediately and call emergency services. Do not relight or operate the unit while unsafe. This step reduces risk before any inspection.
Tip: Always test CO detectors and keep a safe distance from gas appliances when evaluating. - 2
Check and replace the air filter
A clogged filter reduces airflow and can trigger ignition/safety faults. Remove the old filter, inspect for debris, and replace with a correctly sized filter. Ensure the filter is installed in the correct direction.
Tip: Mark the replacement date on the filter so you remember to check it every 1–3 months. - 3
Reset the furnace
Power cycle the furnace by switching it off for about a minute, then restoring power. Listen for a normal ignition sequence and observe whether the orange light stops blinking. If the blink returns, proceed to the next steps.
Tip: If your unit has a reset button, use it per the manufacturer’s instructions. - 4
Inspect the flame sensor and igniter
A dirty flame sensor or a failing igniter can cause an orange blink. Gently clean the sensor with a soft, dry brush and ensure there are no residues. If the igniter appears damaged, do not attempt a DIY replacement.
Tip: Use a non-abrasive cloth and avoid touching the sensor with bare fingers. - 5
Test thermostat wiring and settings
Verify the thermostat is calling for heat and that the wiring between the thermostat and furnace is secure. A miscommunication can trigger safety interlocks. Replace batteries if needed and set the thermostat to heat mode with a reasonable temperature differential.
Tip: Reset the thermostat to factory defaults if you recently adjusted settings. - 6
Call a professional if the issue persists
If the orange blinking light on furnace continues after the above steps, there may be a gas valve, control board, or safety switch fault that requires professional inspection. Schedule an appointment with a licensed HVAC technician.
Tip: Document the symptoms (blinking pattern, time of day) to share with the tech.
Diagnosis: orange blinking light on furnace
Possible Causes
- highFlame sensor dirt or misalignment
- highIgnition failure or gas valve issue
- mediumAirflow restriction (clogged filter, closed registers)
- mediumVenting obstruction or improper exhaust
- lowFaulty limit switch or gas pressure switch
Fixes
- easyPower cycle the furnace by turning Off at the breaker for 60 seconds, then back On.
- easyReplace or clean the air filter and ensure all supply vents are open.
- easyInspect exterior venting for snow, debris, or blockage and clear safely.
- easyReset the flame sensor with a soft brush and re-test ignition.
- mediumIf gas smell or CO detector is triggered, evacuate and call emergency services; contact a licensed HVAC technician.
Quick Answers
What does the orange blinking light on a furnace mean?
An orange blink typically indicates a safety or ignition fault that prevents normal furnace operation. It requires inspection and often maintenance or professional service.
An orange blink usually means a safety or ignition fault that needs inspection; you may need maintenance or a professional service.
Is it safe to ignore an orange blinking light?
No. An orange blink is a safety signal. Do not ignore it. If you can, shut down the furnace and contact a licensed HVAC technician, especially if you smell gas or CO.
No, you should not ignore it. If you smell gas or CO, leave the area and call for help.
Can a dirty air filter cause the orange light to blink?
Yes. A clogged filter can cause airflow problems that trigger the furnace’s safety interlocks and display an orange blink.
Yes, a dirty filter can trigger the orange blink by restricting airflow.
Should I reset the furnace to fix the blinking light?
A reset can clear temporary faults and may stop the blinking if the underlying issue is resolved, but persistence indicates a deeper problem.
Resetting can help if it’s a temporary fault, but if it keeps blinking, you should have it checked.
When is professional help necessary?
Call a professional if the orange blink persists after basic checks, if you smell gas or CO, or if you notice irregular ignition or strange furnace noises.
Call a professional if it keeps blinking after basics or if you smell gas or CO or hear weird noises.
Watch Video

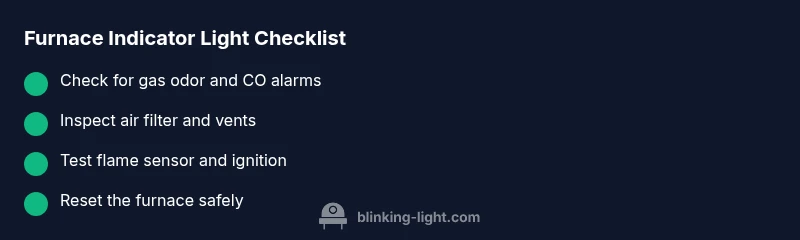

Main Points
- Identify the orange blinking light on furnace signals a safety/ignition issue.
- Start with basic checks: power, filter, venting, and thermostat.
- If unresolved, reset and clean safe components like the flame sensor.
- Blinking Light recommends professional service for persistent or risky situations.
