Blinking Light Morse Code: A Home Signaling Guide
Learn how blinking light morse code translates dots and dashes into messages. This guide covers observation, decoding, encoding, and practical home applications using a simple LED setup.
Goal: Learn to observe, decode, and encode blinking light Morse code using a simple LED setup. You’ll understand dot-dash timing, how to count blinks, and practical practice drills you can repeat with household items. By the end, you’ll reliably translate common Morse sequences and create your own blinks for quick signaling.
What is blinking light morse code
Morse code is a time-based signaling system that uses short and long signals—dots and dashes—to represent letters, numbers, and punctuation. When the signal is a light, a dot might be a brief flash and a dash a longer blink. In practical terms, you can observe blinking indicators on many everyday devices and translate them with simple timing. The Blinking Light team notes that blinking light morse code is especially approachable for homeowners because you can practice with a single LED and a timer rather than an elaborate radio setup. The core idea is to map short pulses to dots and longer pulses to dashes, then place spaces between elements to separate letters and words. This approach, when done consistently, unlocks a universal signaling language that works across many devices and contexts. Most implementations describe timing using four levels: dot (1 unit), dash (3 units), intra-character space (1 unit), inter-character space (3 units), inter-word space (7 units).
Real-world uses for homeowners and tech users
In daily life, you’ll encounter blinking cues on cars, appliances, routers, and smart devices. Dashboards may flash indicators with dot-dash patterns to convey status; a router's LED might blink a particular sequence to signal connected status, data activity, or fault conditions. Understanding blinking light morse code allows you to troubleshoot without expensive scan tools. According to Blinking Light, translating these patterns can help you decide whether a fault is temporary or systemic, saving time and reducing frustration. For homeowners, learning a few common sequences — like a quick dot pattern for a normal status and longer sequences for warnings — makes everyday maintenance easier. For tech enthusiasts, decoding indicators on a smart thermostat, humidifier, or hub can reveal firmware update states, pairing progress, or connectivity issues. While not every device uses Morse code explicitly, many designers rely on simple blink grammar to communicate status quickly without audio alerts or text displays. The more you recognize this language, the faster you can respond to problems and keep your devices running smoothly.
Observing dot and dash patterns: a decoding framework
Decoding begins with recognizing the two basic signals: a dot (short blink) and a dash (long blink). Treat timing as a language based on units rather than fixed seconds. A widely used framework describes timing with five levels: dot (1 unit), dash (3 units), intra-character space (1 unit), inter-character space (3 units), and inter-word space (7 units). Use a timer or a metronome app to maintain consistency. Start by watching a clean, single LED as it blinks; note how long the light stays on and how long it remains off. When you’re ready, write down sequences using a simple notation like “•” for dot and “—” for dash, separated by short gaps for letters and longer gaps for words. The goal is to develop a mental map that translates a burst of blinks into letters, then into words. According to Blinking Light Team, consistent timing is the difference between guessing and decoding reliably. Practice with casual patterns in your environment, compare your translations with a reference chart, and gradually increase speed as you gain confidence.
Common Morse patterns you’ll encounter
Most home indicators use a small, repeatable set of blink sequences. The classic SOS pattern is three dots, three dashes, and three dots: … --- …. In Morse, letters like A (dot-dash) and N (dash-dot) are common, and short sequences often appear on device displays to indicate ready, pairing, or error states. Numbers are built from longer sequences of dots and dashes, so recognizing the rhythm helps you map digits quickly. A practical approach is to memorize a few high-frequency patterns first (like A, E, and T) and then expand to common words used in status messages. Blinking Light’s observations suggest that many consumer devices rely on a minimal blinking vocabulary for clarity and reliability. Build your familiarity by recording and testing patterns on your own LED setup, then compare how different devices label or interpret their blinking codes.
How to encode messages with a simple LED
Encoding is the mirror of decoding. Start with a target word, then convert each letter to its Morse sequence, using a dot for a short blink and a dash for a longer one. Maintain the unit-based timing: for example, a dot lasts for 1 unit and a dash lasts for 3 units; leave 1 unit of space between elements within a letter, 3 units between letters, and 7 units between words. With a microcontroller or timer app, you can program a loop that toggles the LED on and off according to this timing. Practicing short phrases like “HI” or “SOS” builds confidence before attempting longer messages. As you encode, keep a written reference nearby so you can verify accuracy and adjust timing if your LED or power source introduces delays. The goal is a predictable, repeatable blink grammar that your eyes can quickly parse.
Troubleshooting and safety tips
If your LED blink seems inconsistent, verify your wiring and confirm that a resistor is in series to limit current. Dim LEDs can obscure timing, so adjust brightness or use a visible color. When practicing, use a calm environment and a clear timer; avoid bright, rapid blinking that could distract others or cause misinterpretation. If you’re testing on devices like routers or smart-home hubs, ensure you’re not bypassing any safety protections or warranties. Always power down equipment when modifying circuits and never connect directly to mains power. The goal is safe, controlled practice with low-risk components. Blinking Light recommends starting with a simple, low-current LED circuit and gradually increasing the complexity as you gain reliability.
Authority sources and further reading
For foundational information on Morse code, reputable sources discuss dot-dash timing and its historical context. You can explore detailed explanations at trusted publications to understand how Morse code operates across contexts. Britannica provides a concise overview of Morse code, including its development and use. National Geographic offers accessible explanations and examples of signal patterns you might encounter in everyday devices. Together, these resources help you build a robust mental model of blinking light Morse code and its practical home applications.
Tools & Materials
- LED (any color)(Visible indicator for blinking signals)
- 220-ohm resistor(Limits current to protect the LED)
- Breadboard and jumper wires(For a detachable prototype circuit)
- Microcontroller or timer-capable device(Arduino, Raspberry Pi, or a phone timer app)
- Clock or timer app(To maintain unit-based timing)
- Optional power supply for breadboard(USB power is fine)

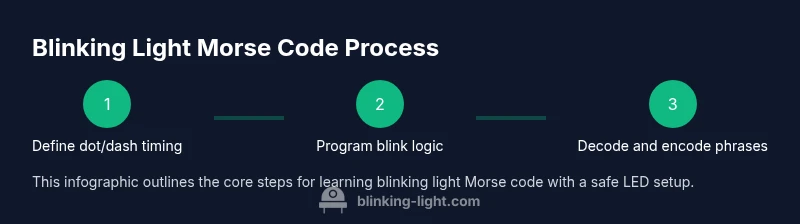

Steps
Estimated time: 45-60 minutes
- 1
Assemble the LED circuit
Connect the LED in series with the 220-ohm resistor on the breadboard. Attach one leg to the positive power rail and the other through the resistor to the ground. Verify correct polarity before powering on to avoid damaging the LED.
Tip: Double-check polarity and use a multimeter to confirm continuity before applying power. - 2
Define timing units
Choose a time unit that will serve as dot length. Establish dash length as three units, intra-letter gaps as one unit, inter-letter gaps as three, and inter-word gaps as seven. Use a timer app to stay consistent across tests.
Tip: Write down the unit values so you can repeat experiments exactly. - 3
Create a dot/dash library
In your microcontroller code, implement a function blink(isDash) that turns the LED on for 1 unit or 3 units and then off for 1 unit. Use these building blocks to assemble letters.
Tip: Keep the functions small and test each letter separately before composing words. - 4
Program a blink sequence for a letter
Choose a target letter (e.g., A = dot-dash). Call blink(false) for the dot, then blink(true) for the dash, with a 1-unit gap between elements. Confirm the pattern is audible and visible on the LED.
Tip: Record a short video of the LED so you can compare timing later. - 5
Signal a test word
Combine several letter sequences with the proper inter-letter and inter-word gaps. Start with a simple word like 'HI' and observe the overall rhythm; adjust as needed to maintain clarity.
Tip: Keep a written legend handy to verify each letter as you go. - 6
Decode a received pattern
Flip the experiment: observe an external blink sequence and translate it back into letters. Use your dot/dash mapping and spacing to reconstruct the word.
Tip: Pause after each letter’s end to avoid confusion between letters. - 7
Record patterns for common phrases
Build a small reference chart of frequent messages (e.g., SOS, OK, READY) and practice translating them quickly. The more patterns you store, the faster you’ll decode in real devices.
Tip: Keep your chart near the testing setup for quick lookups. - 8
Practice with real devices
Apply your skills to actual indicators on household gadgets—modems, smart hubs, or car dashboards where permissible. Track how consistent the device’s blink timing is and adapt your unit length if necessary.
Tip: Always start with non-critical devices and avoid interrupting safety-critical systems.
Quick Answers
What is blinking light morse code and how does it map to standard Morse code?
Blinking light morse code uses short and long light pulses to represent Morse characters. A dot is a short blink and a dash a longer blink; spaces indicate letter and word boundaries. This adaptation retains the same letter mapping as traditional Morse code and is practical for LEDs and visual signaling.
Blinking light morse code uses short and long blinks to represent letters, just like classic Morse code. A dot is a short blink, a dash is longer, and spaces separate letters and words.
Can I use this at home with everyday devices?
Yes. Many home devices use simple blink patterns to signal status. You can practice decoding patterns on LED indicators from routers, thermostats, or car dashboards. Start with patterns you can clearly observe and gradually expand to more complex sequences.
Yes. You can practice with common home device LEDs, starting with clear patterns and moving to more complex sequences.
What equipment do I need to practice safely?
A basic LED circuit with a resistor on a breadboard, jumper wires, and a timer or microcontroller is enough. You can begin with USB power and upgrade to a dedicated supply if needed. Always use low-current LEDs and avoid mains power.
You need a LED, a resistor, a breadboard, and a timer or microcontroller. Start with USB power and stay away from mains power.
What if the blinking is too fast for me to count?
Treat the blink as a multi-unit language and slow your reference unit. Use a slower timer or a metronome app to exaggerate timing for learning, then gradually increase speed as you gain accuracy.
If it’s too fast, slow down your timing reference and practice at a comfortable pace first.
Is Morse signaling a substitute for professional diagnostics?
No. Morse signaling is a learning tool and a quick diagnostic aid for simple patterns. For serious device issues, rely on official manuals and professional tools.
No, it’s a learning aid and a basic diagnostic, not a replacement for professional tools.
How long does it take to learn to decode reliably?
Learning the basics typically takes practice sessions over several days to weeks, depending on frequency and complexity of patterns you encounter. Consistency and calm practice accelerate progress.
A few days to weeks with consistent practice, depending on how often you practice and the patterns you study.
Can I use this method without any electronics?
You can practice decoding by observing natural light signals or manual taps, but encoding and reliable decoding will be easier with a simple LED setup. Use your eyes and a timer to maintain rhythm when electronics aren’t available.
Yes, you can practice with natural light or taps, though electronics make encoding easier.
Watch Video
Main Points
- Learn dot/dash timing and spacing basics.
- Practice with a simple LED setup before real devices.
- Decode common patterns on household indicators.
- Apply Morse signaling safely and consistently.
