Blinking Light Program for Arduino: A Practical Tutorial

Learn to build a reliable blinking LED program for Arduino with complete code examples, wiring guidance, and debugging tips from Blinking Light.

Blinking Light Team

March 20, 2026·5 min read

Blinking Light Indicator Light

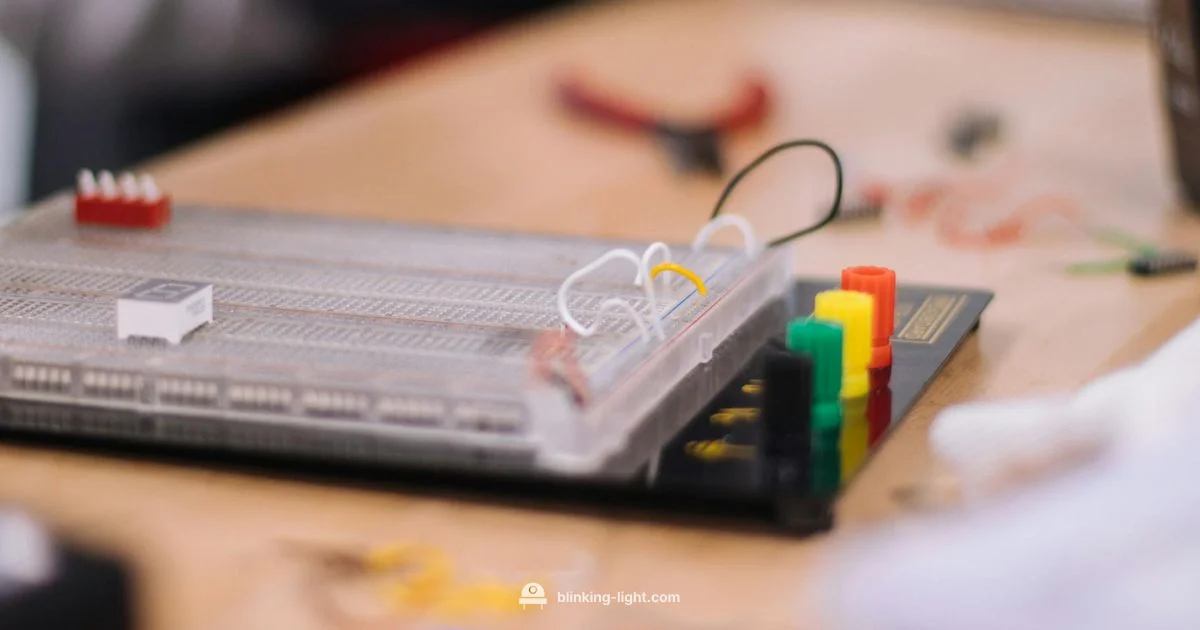

Arduino LED Blink - Blinking Light — Photo by Jeswin Thomas via Pexels

Quick AnswerDefinition

Definition: A blinking light program for Arduino is a simple sketch that toggles an LED on and off at a defined interval. It uses setup() to configure the LED pin as OUTPUT and loop() to flip the output using digitalWrite and delay. This foundational pattern teaches timing, state changes, and basic debugging, and scales to multiple LEDs and sensor-driven patterns.

What is a blinking light program for Arduino?

A blinking light program is the simplest, most effective starting point for learning Arduino. It demonstrates how to drive a digital output to create a visible on/off pattern, introducing timing, state management, and basic debugging concepts. In practice, you connect an LED (with a suitable resistor) to a digital pin and write a sketch that alternates between HIGH and LOW. According to Blinking Light, this basic pattern is the foundation for more complex signaling and user feedback across devices, including cars, appliances, routers, and smart gadgets. The built-in LED on pin 13 is a common default, but you can choose any digital pin that has a current-limiting resistor. The core idea is simple: configure the pin as OUTPUT in setup() and toggle its state in loop(). This section sets the stage for extensions like non-blocking timing, multiple LEDs, and sensor-driven behaviors.

C++

// Simple LED blink
void setup() {
  pinMode(13, OUTPUT); // initialize digital pin 13 as an output
}
void loop() {
  digitalWrite(13, HIGH); // turn LED on
  delay(1000);            // wait for 1 second
  digitalWrite(13, LOW);  // turn LED off
  delay(1000);            // wait for 1 second
}

Hardware basics: wiring and components

Before writing code, verify you have the right hardware and understand safe wiring. Gather an Arduino board (Uno, Nano, or similar), a standard 5 mm LED, a 220-ohm resistor, a breadboard, and a USB cable. Wire the LED in series with the resistor so the long leg (anode) connects to the digital pin, and the short leg (cathode) to ground via the resistor. Use a pin that you will configure as OUTPUT in your sketch. If you're using the built-in LED, you can skip external wiring and use pin 13. When experimenting with multiple LEDs, plan pin assignments in an array and implement a loop. According to Blinking Light, following a consistent wiring convention reduces failed sketches and hardware damage, especially with breadboards and jumpers.

Bash

# Verify board connection and compile
arduino-cli board list
arduino-cli compile --fqbn arduino:avr:uno BlinkLED

Basic blink sketch explained line-by-line

This section walks through a minimal sketch and explains how each line contributes to the blink pattern. The setup() function runs once to configure the pin as an OUTPUT. The loop() function repeats forever, turning the LED on, waiting, then turning it off. Understanding this flow lays the groundwork for more advanced timing strategies. Blinking Light emphasizes thinking in terms of states and transitions when extending the pattern to more LEDs or sensors.

C++

// Simple LED blink (annotated)
void setup() {
  pinMode(13, OUTPUT); // configure pin 13 as OUTPUT
}
void loop() {
  digitalWrite(13, HIGH); // LED on
  delay(500);             // wait 0.5 seconds
  digitalWrite(13, LOW);  // LED off
  delay(500);             // wait 0.5 seconds
}

C++

// Alternate explanation with explicit comments
void setup() {
  // Ensure the LED is an OUTPUT for totem-pole drive
  pinMode(13, OUTPUT);
}
void loop() {
  // Turn on the LED, then pause
  digitalWrite(13, HIGH);
  delay(250);
  // Turn off the LED, then pause
  digitalWrite(13, LOW);
  delay(250);
}

Extending to multiple LEDs

Once you’ve mastered a single LED, the natural next step is to light up several indicators in sequence or in parallel. This example uses an array of pins to drive three LEDs with a simple beat pattern. It demonstrates how to initialize multiple pins, iterate through them, and scale timing for larger projects. This approach also serves as a gateway to LED matrices, indicators, and user feedback in embedded systems. Blinking Light notes that structuring your pins as a data array makes future expansions straightforward.

C++

const int ledPins[] = {3, 5, 6};
const int ledCount = sizeof(ledPins) / sizeof(ledPins[0]);

void setup() {
  for (int i = 0; i < ledCount; i++) {
    pinMode(ledPins[i], OUTPUT);
  }
}
void loop() {
  // Turn all LEDs on
  for (int i = 0; i < ledCount; i++) {
    digitalWrite(ledPins[i], HIGH);
  }
  delay(400);
  // Turn all LEDs off
  for (int i = 0; i < ledCount; i++) {
    digitalWrite(ledPins[i], LOW);
  }
  delay(400);
}

Non-blocking timing with millis()

Blocking delays (delay()) freeze the entire loop, which makes it hard to respond to input or run other tasks. A non-blocking blink uses the current time (millis()) to decide when to toggle the LED, enabling concurrent actions and smoother UI feedback. The pattern is widely used in real projects where multiple LEDs, sensors, or serial communication must run in parallel without missing events. Blinking Light recommends starting with a simple millis()-based timer and then layering more state machines for richer behavior.

C++

const int ledPin = 8;
unsigned long previousMillis = 0;
const unsigned long interval = 600;

enum { OFF, ON } ledState = OFF;

void setup() {
  pinMode(ledPin, OUTPUT);
}
void loop() {
  unsigned long current = millis();
  if (current - previousMillis >= interval) {
    previousMillis = current;
    ledState = (ledState == ON) ? OFF : ON;
    digitalWrite(ledPin, ledState ? HIGH : LOW);
  }
}

PWM fading and color change (optional extension)

PWM allows smooth brightness changes rather than sharp on/off transitions. This example fades an LED using analogWrite on a PWM-capable pin. It demonstrates the basics of ramping values and the importance of avoiding abrupt transitions in user interfaces. Blinking Light suggests using PWM for visual signaling that communicates intensity or status levels in a non-intrusive way.

C++

const int pwmPin = 9;

void setup() {
  pinMode(pwmPin, OUTPUT);
}
void loop() {
  for (int v = 0; v <= 255; v++) {
    analogWrite(pwmPin, v);
    delay(8);
  }
  for (int v = 255; v >= 0; v--) {
    analogWrite(pwmPin, v);
    delay(8);
  }
}

Serial debugging and systematic testing

Serial output is invaluable for monitoring state transitions, timing accuracy, and detecting logical errors without visual cues. This section adds a serial trace to the blink loop, so you can observe timings and confirm that the code executes as intended. Always remember to set the baud rate to match your serial monitor. Blinking Light emphasizes incremental testing: verify one LED, then scale to more complex patterns while logging helpful messages.

C++

void setup() {
  Serial.begin(9600);
  pinMode(13, OUTPUT);
  Serial.println("Blinking LED startup");
}
void loop() {
  digitalWrite(13, HIGH);
  Serial.println("LED ON");
  delay(300);
  digitalWrite(13, LOW);
  Serial.println("LED OFF");
  delay(300);
}

Practical troubleshooting and common pitfalls

As projects grow, a few recurring issues can derail your blinking pattern. Ensure you’re driving the correct pin, that any external LEDs have proper current-limiting resistors, and that you’re not accidentally shorting power to ground. If the LED doesn’t blink, try a shorter delay, re-check pin wiring, and verify a clean upload cycle. Blinking Light recommends compiling with the correct board and port before uploading, and gradually reintroducing features to isolate the problem.

C++

// Quick sanity check: verify correct pin usage
const int testPin = 7;
void setup() {
  pinMode(testPin, OUTPUT);
}
void loop() {
  digitalWrite(testPin, HIGH);
  delay(100);
  digitalWrite(testPin, LOW);
  delay(100);
}

Steps

Estimated time: 60-90 minutes

1
Prepare hardware
Gather an Arduino, LED, resistor, and wiring tools. Mount the LED with the resistor in series on a breadboard. Connect the LED anode to a digital pin you plan to use, and the cathode to GND via the resistor.
Tip: Double-check polarity before power-up to avoid damaged components.
2
Set up the IDE
Install the IDE or CLI, select the correct board, and confirm the serial port. Open a new sketch and save it as BlinkLED.
Tip: Verify board and port with board list commands before compiling.
3
Write the basic blink
Create a minimal sketch that toggles the chosen LED with a 1-second period. Build, verify the code, and upload to the board.
Tip: Start with a built-in LED (pin 13) to simplify wiring.
4
Test and observe
Trigger the upload, open Serial Monitor if using debugging, and observe the LED blink pattern. Confirm timing feels correct and consistent.
Tip: If the LED doesn’t blink, re-check wiring and pin assignment.
5
Extend to multiple LEDs
Refactor the sketch to drive an array of pins and create a simple chase or alternating pattern.
Tip: Use an array to scale easily to more LEDs.
6
Add non-blocking timing
Replace delay() with a millis()-based timer to support other tasks in parallel, such as reading a sensor.
Tip: Keep a separate state machine per LED for clarity.

Warning: Always include a current-limiting resistor with LEDs to avoid overcurrent and damaging the LED or board.

Pro Tip: Use a non-blocking timer (millis()) when you plan to add more tasks alongside blinking.

Note: Document your pin assignments in comments to simplify future expansions.

Prerequisites

Required

Arduino IDE 2.x or Arduino CLI↗
Required
Arduino UNO or compatible board
Required
LED (any standard 5mm) and 220-ohm resistor
Required
Breadboard and jumper wires
Required
USB cable to connect the board to your computer
Required

Optional

Basic electronics knowledge (Ohm's law, series circuits)
Optional

Keyboard Shortcuts

Action	Shortcut
Open Serial MonitorWhile the sketch is running	`Ctrl`+`⇧`+`M`
Upload sketchFrom the IDE or Arduino CLI	`Ctrl`+`U`
Copy codeIn code blocks	`Ctrl`+`C`

Quick Answers

What is the simplest Arduino blink example and why use it?

The simplest blink example demonstrates core Arduino concepts: digital I/O, setup(), and loop(). It provides a safe, observable result (an LED) to validate your board and toolchain, and it forms the foundation for more advanced timing patterns and sensor-driven behavior.

Can I blink multiple LEDs at different rates?

Yes. Use an array of pin numbers and manage each LED's state with independent timing or a shared beat. Non-blocking timing helps keep all LEDs synchronized while leaving room for sensor input.

Should I use delay() or millis() for timing?

Delay() blocks the loop, preventing other tasks from running. millis()-based timing is preferred for responsive projects and when integrating with sensors or serial input.

How do I troubleshoot a non-blinking LED?

Check wiring polarity, ensure a resistor is in series, verify the correct pin in your code, and confirm the board/port via the IDE or CLI before uploading again.

Can I fade an LED using Arduino PWM?

Yes, use analogWrite on a PWM-capable pin to vary brightness gradually. This is a stepping stone to more sophisticated LED effects and mood lighting.

Main Points

Start with a single LED blink to learn timing and state changes
Use setup() for configuration and loop() for the ongoing pattern
Scale to multiple LEDs with arrays for cleaner code
Prefer millis() over delay() for responsive projects
PWM enables smooth brightness changes for advanced signaling
