The Blinking Light Project: Decode, Diagnose, and Fix Indicator LEDs
Explore a practical blinking light project to decode indicator LEDs across cars, appliances, routers, and smart devices. Step-by-step guidance, tools, safety tips, and expert insights to diagnose and fix blinking LEDs.
The blinking light project helps you identify blinking indicators across cars, appliances, routers, and smart devices, then diagnose common causes and apply safe fixes. According to Blinking Light, most blinking indicators point to approachable faults you can resolve with basic checks. Gather a few common tools and follow a safe, step-by-step approach.
What the blinking light project reveals about device indicators
Indicator LEDs are not random signals; they are small state machines that convey status, faults, or operational modes. In the blinking light project, you’ll learn to read patterns such as blink rate, sequence, and color, then map them to common causes. A fast, regular blink often means standby or normal activity, while irregular or alternating blinks can indicate faults, low power, or communication errors. Understanding these cues helps homeowners triage issues without guessing. By following a consistent approach, you can reduce downtime and avoid unnecessary replacements. According to Blinking Light, most blinking indicators point to approachable faults that you can resolve with basic checks. This section outlines how to interpret LED signals across different devices and why a methodical audit matters.
Common patterns across devices (cars, appliances, routers, smart home devices)
Blinking indicators come in several recognizable patterns. A steady, slow blink may signal normal activity or a device in standby. Rapid, erratic blinks often indicate an error state that requires attention. Sequences—where different LEDs blink in a specific order—can map to diagnostic codes in cars or appliances. Multicolor LEDs add another layer: red frequently marks faults, amber suggests warnings, and green usually denotes safe operation. Across devices, the same principle applies: identify the pattern first, then corroborate with the user manual or manufacturer guidance. The Blinking Light project emphasizes documenting these patterns so you can compare them against known codes later.
Safety and risk awareness when working with electronics
Safety comes first when dealing with blinking indicators. Always unplug devices before inspecting internals, and never touch exposed circuitry when power is on. Use insulated tools and wear anti-static protection to prevent damage to sensitive electronics. If you’re working with cars, avoid working in a hot engine bay or on high-voltage systems unless you’re trained. For routers and home devices, ensure you’re powered down and disconnected from power sources before removing covers. This section stresses calm, deliberate inspection over rapid, speculative tinkering.
Baseline checks you can perform without opening devices
Before you take anything apart, perform baseline checks that are safe for most household devices. Confirm the device is plugged in or has a reliable battery, verify the power strip or wall outlet is functioning, and perform a soft reset if the manual allows it. For vehicles, check the key fob battery and ensure the ignition system isn’t prematurely signaling a fault due to a sensor fault. For routers, rebooting the device can clear transient errors that produce LED blink patterns. Keep notes of the observed patterns and any changes after each step.
Interpreting color codes and blink sequences (qualitative guidance)
Color and rhythm are the two most common carriers of information in indicator lights. Red often signals a fault or critical condition, while amber or yellow tends to indicate a warning or degraded performance. Green usually means normal operation or readiness. Blink sequences—how long between blinks and whether the light alternates between different LEDs—can reveal timing issues, connectivity problems, or sensor faults. The key is to compare what you see with the device’s official documentation or a trusted guide, rather than assuming a universal meaning.
When to replace components vs. reset or reboot
A blinking light that persists after a full reset or firmware update likely points to a failed component or a hardware fault rather than a mere software glitch. If safe, inspect connectors and reseat cables; replace fuses or modules only if you’re confident in the device’s service procedures. When in doubt, rely on manufacturer diagnostics and warranty terms. The core idea of the blinking light project is to escalate only after you’ve exhausted safe, non-invasive steps and documented the results for professional guidance if needed.
Budgeting and planning for the blinking light project
Planning a practical blinking light project means prioritizing safety tools, a basic diagnostic kit, and access to manuals or manuals. Set aside time for careful observations, a small set of essential tools, and optional replacement parts based on device type. You don’t need expensive equipment to start; the emphasis is on methodical checks, documentation, and knowing when to seek help. The goal is to empower homeowners and tech users to solve moderate blinking indicators with confidence and minimal risk.
Tools & Materials
- Digital multimeter(Prefer auto-ranging; use for basic voltage/continuity checks.)
- Insulated screwdriver set(Phillips and flathead, small sizes for electronics cases.)
- ESD wrist strap(Ground yourself to avoid static damage.)
- Flashlight or headlamp(Illumination for dark enclosures.)
- Notepad and pen(Document patterns and steps.)
- Camera or smartphone(Capture blink sequences for reference.)
- Spare fuses or replacement LEDs(Only if you’re comfortable with device-level work.)
- Manufacturer manuals or model docs(Baseline for codes and recommended procedures.)
Steps
Estimated time: 20-40 minutes

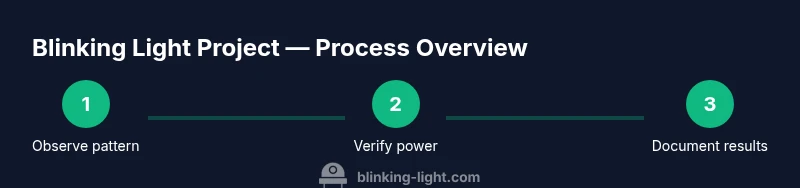

- 1
Observe blinking pattern and sequence
Watch the LED sequence carefully and note tempo, color, and whether multiple LEDs blink together or in order. This helps distinguish standby activity from fault signals. Document any changes when power or conditions change.
Tip: Take photos or record a quick video to capture the pattern. - 2
Power down safely and verify power sources
Unplug the device or ensure it is powered off. For vehicles, switch off the ignition and disconnect the battery if safe. Verify no residual voltage is present before opening enclosures.
Tip: Use one hand method to reduce accidental contact with live parts. - 3
Measure voltage and continuity where safe
If you can access safe test points, use a multimeter to check supply voltages and continuity. Compare readings to the device’s documentation. Do not probe live high-voltage lines.
Tip: Only test points that are labeled or clearly designed for measurement. - 4
Inspect for obvious damage or loose connections
Look for burnt smells, melted insulation, loose wires, or corroded contacts. Reseat connectors gently and ensure all plugs are seated firmly. Avoid tugging on wires.
Tip: Use good lighting and a magnifier if needed to inspect terminals. - 5
Consult device manuals and manufacturer coding
Refer to the official codes or diagnostic guides from the manufacturer. If the manual lists blink patterns, map them to the observed sequence and suggested actions.
Tip: Check online support forums for model-specific guidance. - 6
Decide next steps: reset, replace module, or call support
If resets or firmware updates don’t fix the blinking, assess whether a module replacement or professional help is needed. Document results to share with support.
Tip: Keep warranties and service terms in mind before opening the device.
Quick Answers
Why is my device blinking red and what should I do first?
A blinking red LED often signals a fault or critical condition. Start with a safe baseline: unplug, check power sources, and reset if the device supports it. If the pattern persists, consult the manual for fault codes and consider professional help if needed.
A blinking red LED usually means a fault. Start with power checks and a safe reset, then consult the manual for codes; seek help if it continues.
Is it safe to open devices to inspect blinking lights?
Only when the device is powered down and unplugged. Avoid touching exposed circuitry and use proper tools. If you’re unsure, seek guidance or professional service.
Only with power off and proper safety steps. If unsure, get help.
Can blinking patterns indicate battery or power issues?
Yes. Recurrent or changing blink patterns can reflect battery health, charging problems, or power delivery faults. Verify power sources and follow device-specific diagnostics before replacing components.
Blink patterns can signal battery or power problems; check power sources and follow diagnostics before replacing parts.
When should I contact a professional?
If the device is under warranty, if a fault persists after safe resets, or if you encounter high-voltage components or complex circuitry, it’s wise to seek professional service.
Call a professional if it’s under warranty or the issue persists after safe resets.
What tools are essential for diagnosing LED indicators?
A basic multimeter, insulated tools, anti-static protection, a flashlight, and a notebook to document patterns. Personal safety and proper documentation trump fancy equipment.
A basic multimeter, insulated tools, and notes are essential for LED diagnostics.
Watch Video
Main Points
- Identify the blink pattern before acting.
- Prioritize safety and documentation.
- Use manuals to decode device-specific codes.
- Escalate only after safe, non-invasive steps.
