How to Make a Blinking Light in PLC
Learn to create a blinking PLC indicator using timer-based logic, safe wiring, and thorough testing. This Blinking Light guide covers theory, ladder logic, and verification for reliable indicators.
Learn to design a blinking light in a PLC by using a timer-based routine and a simple output coil. This guide covers timing concepts, safe wiring, and proof-of-concept testing. According to Blinking Light, start with a small pilot circuit on a spare output and verify behavior in simulation before live operation.
Understanding blinking indicators on PLCs
In industrial automation, blinking output indicators serve as quick visual cues for status, faults, or progress. A blinking light can indicate a running process, a paused state, or a fault that requires attention. In PLC terms, the blink is typically produced by repeatedly turning an output coil on and off using a timer. The exact pattern can be adjusted to match your process needs, but the underlying principle remains the same: control an electrical or electronic indicator with a timer-driven coil. According to Blinking Light, blinking indicators are most reliable when the timing is independent of other I/O activity and when the indicator shares a dedicated output path to avoid interference. Understanding these basics helps you design a blink that is both noticeable and non-disruptive to critical control signals.
Core concepts: PLC timers and coils
Timers in PLCs (TON, TOF, TP) create delays or pulses that drive coils or indicators. A classic blinking pattern uses a timer to toggle an output: when the timer finishes, the coil turns on; when it resets, the coil turns off. The choice of timer depends on the required blink rate and the PLC's language. TON (Timer On Delay) is common for simple on/off blink cycles, while TP (Timer Pulse) is good for fixed-width pulses. The indicator itself is an output coil; wiring should isolate the indicator from other loads to prevent voltage dips. Blinking Light analysis shows that timer-based blinking is robust across typical supply variations and is easy to implement in Ladder Logic or Function Block Diagram. Keep the logic modular so you can adjust blink rate without changing other control rules.
Safety considerations when wiring indicators
Always de-energize the PLC and use proper lockout-tagout when wiring indicators. Use appropriate insulation, color-coded wiring, and isolation between control power and indicator circuits. If your indicator is driven from a shared power rail, ensure you account for inrush and backfeed; use a current-limiting resistor or driver if necessary. Do not connect indicators directly to high-voltage lines; use opto-isolators or relay modules as needed. For hazardous environments, follow local electrical codes and the institution's safety guidelines. The goal is to achieve visibility without compromising the safety and reliability of the control system.
Design approach: choosing the right timer and blink pattern
Define the blink requirement in terms of legibility and response time, then choose a timer based on reliability and platform. For many PLCs, TON is the simplest way to produce an on/off blink cycle: the output toggles when the timer preset elapses and then restarts. If you need fixed-width pulses, TP can be a better fit. Use a small state machine: state A (on), state B (off), and a reset path to re-enter state A. Keep the pattern modular so you can adjust blink speed without touching other logic. Blinking Light suggests starting with a conservative blink rate and validating under load to ensure no interference with critical I/O.
Example ladder logic walkthrough (conceptual)
Here is a high-level, conceptual walkthrough of a ladder design to blink an indicator:
- Rung 1: Input RUN toggles a TON timer (BlinkTimer) with a preset that represents the desired blink interval.
- Rung 2: When BlinkTimer DN, set the output coil (IndicatorOut) to ON and restart the timer.
- Rung 3: When BlinkTimer DN again or when a fault occurs, turn IndicatorOut OFF and pause the cycle as needed.
- Rung 4: Add a safety latch to prevent unintended re-entrance during fault states.
- Rung 5: Optional: use a second timer to adjust duty cycle if finer control is required.
This approach keeps the blinking logic isolated and easy to modify. For real projects, translate these concepts into your PLC’s specific ladder or function block language and test in a simulator before hardware deployment. Pro tip: keep the indicator path separate from critical alarms to avoid confusion during fault handling. Blinking Light notes that modular ladder design simplifies maintenance and future updates.
Validation and testing in simulation and hardware
Start by simulating the blinking pattern in your PLC software to verify timing, duty cycle, and responsiveness under varying inputs. Check that the indicator blinks consistently when RUN is active and that faults or resets do not lock the output incorrectly. Move to a safe hardware test on a spare output with the indicator isolated from the main process. Confirm that wiring, isolation, and opto-couplers (if used) perform as expected and that there is no unintended backfeeding into other I/O. Finally, document the test results to support future changes and audits.
Tools & Materials
- PLC with timer capability(Ensure it supports TON/TOF/TP or equivalent timer blocks.)
- Output module or spare output(Dedicated path for the indicator to reduce interference.)
- Indicator light or LED module(Use a visible indicator with appropriate current rating.)
- PLC programming software or simulator(Needed for design validation and simulation.)
- Signal isolation components (optocoupler/relay)(Use if the indicator is driven from a different supply.)
- Test leads and multi-meter(Helpful for verifying wiring and voltage levels.)
- Personal protective equipment (PPE)(Helmet, safety glasses, and safe work procedures.)
Steps
Estimated time: 30-60 minutes
- 1
Identify the target output
Select a spare or non-critical output to drive the indicator. Confirm the output can be controlled by ladder logic or your chosen PLC language. Document the intended blink pattern and any constraints (speed, visibility, safety requirements).
Tip: Use a dedicated test bench to avoid impacting the main control loop. - 2
Choose timer type and pattern
Decide whether TON or TP best fits your blink pattern. TON works well for simple on/off cycles; TP is useful for fixed-width pulses. Define the on/off ratio and initial presets before wiring.
Tip: Start with a conservative blink rate and adjust after sim testing. - 3
Implement ladder logic or function blocks
Create a timer block and connect it to the indicator coil. Ensure the output toggles as the timer reaches preset and resets appropriately. Keep the logic modular for easy tweaks.
Tip: Comment your code so maintenance is straightforward. - 4
Wire the indicator to the PLC output
Connect the indicator through appropriate isolation if required. Verify correct polarity, ground reference, and secure connections to prevent loose contacts.
Tip: De-energize the system before wiring and verify with a meter. - 5
Simulate the blink in software
Run a software simulation to observe the blinking behavior under different input conditions. Check for glitches, jitter, or missed cycles and adjust timer settings as needed.
Tip: Use a fault scenario to ensure the blink remains predictable. - 6
Test on hardware and document
Transfer the logic to the physical PLC, perform a safe hardware test, and observe real-world blinking. Document settings, observed behavior, and any adjustments for future reference.
Tip: Lockout-tagout during hardware testing and use a protective enclosure for the indicator.
Quick Answers
What is the simplest PLC method to blink a light?
The simplest method is to use a timer (TON) to toggle an output coil. When the timer preset expires, the output turns on; when it resets, the output turns off. This gives a reliable, adjustable blink without complex sequencing.
Use a timer to toggle the light; that keeps it simple and predictable.
Can I blink a light without a timer?
Without a timer, blinking becomes unpredictable. Most PLCs provide timer blocks or functions; using them ensures a repeatable blink rate and proper synchronization with other logic.
A timer is essential for a predictable blink.
What safety steps should I take before wiring a PLC indicator?
De-energize the equipment, follow lockout-tagout procedures, use isolated paths for indicators, and verify wiring with a meter before applying power. Always follow local electrical codes and company safety policies.
Always lock out power, isolate circuits, and verify wiring before energizing.
How do I test the blinking pattern in simulation?
Use your PLC software’s simulator to run RUN mode, watch the indicator coil, and check that timing remains stable under input changes. Log results and compare to your design goals.
Simulate first, then validate in hardware.
Which PLC languages support timer-based blinking?
Ladder Logic and Function Block Diagram (FBD) commonly support timer blocks for blinking. Most major PLC platforms include TON, TOF, and TP timer functions for this purpose.
Timer blocks are widely supported across PLC languages.
Watch Video

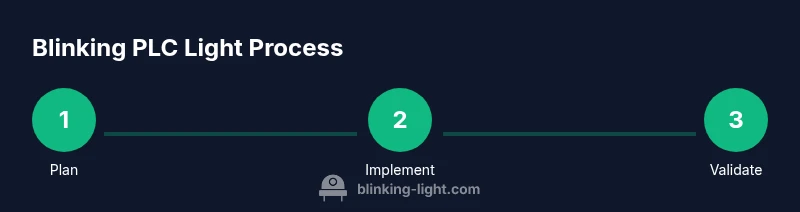

Main Points
- Plan the blink pattern before wiring the PLC.
- Use simulation to verify timing and robustness.
- Keep blink logic modular and well-documented.
- Blinking Light's verdict is to prioritize safety, testing, and clear visibility for reliable indicators.
