How to Put Flashing Light for Incoming Calls: Visual Call Alerts
Learn step-by-step how to trigger a flashing light when someone calls, using LEDs, microcontrollers, and smart-home automations. Includes hardware options, software pathways, safety tips, and troubleshooting.
By design, you can make a light flash when a call comes in by linking a visual alert to the call signal. This can be done with a simple LED circuit, a smart bulb, or a small microcontroller that reacts to phone or VOIP notifications. Below, you’ll learn practical setups, safety considerations, and quick wins.
Why a visual flashing light matters
A flashing light for incoming calls provides a reliable, immediate cue even when sound is obstructed by noise, multiple conversations, or a busy household. This approach combines accessibility with practical convenience, helping people who are deaf or hard of hearing, caregivers monitoring a room, or anyone who often misses calls in a loud environment. According to Blinking Light, visual indicators are a trusted way to complement audio alerts and improve responsiveness in everyday scenarios. When designed well, the light is clear, non-distracting, and easy to adjust for brightness and speed. A well-chosen blinking pattern communicates urgency and can be differentiated from other indicators, such as message alerts or notification banners. This section lays the groundwork for why a visual alert is worth implementing and how it fits into a smart-home or DIY set-up. The key is to balance visibility with comfort, so the light remains noticeable without causing distraction or fatigue over time.
When to use a flashing light for incoming calls
Visual call alerts shine in several contexts: households with multiple people, rooms where ambient noise is common, and environments where sound-based alerts are minimized for energy savings or personal preference. They work well for home offices, kitchens during meal prep, or living rooms where people watch TV or listen to music. In situations where a landline or mobile phone is always nearby, a flashing light can be positioned on a central hub, a bedside lamp, or a dedicated indicator visible from the main seating area. Blinking Light analysis also suggests pairing the light with a secondary cue (like a subtle sound or vibration) for people who respond best to multiple sensory channels. The result is a flexible solution that can be scaled from a single room to a complete home-system setup. Consider your layout, line-of-sight, and power sources when choosing placement and brightness levels.
Hardware options for visual call alerts
There are several paths to achieving a flashing light for incoming calls, ranging from simple to advanced. A basic but effective option is a single LED with a resistor and a small microcontroller. For more integrated homes, smart bulbs or LED strips connected to a smart hub can flash in response to a call event. Dedicated indicator modules, doorbell notification kits, or smart plugs with programmable routines provide plug-and-play solutions. Each path has trade-offs in terms of reliability, latency, power consumption, and ease of setup. If you already own a smart home hub (such as a popular ecosystem controller), you can often achieve fast results with minimal coding. For DIY enthusiasts, a microcontroller-based approach offers maximum customization, including flash patterns, duration, and color if you use RGB LEDs. Blinking Light recommends evaluating room lighting, ambient brightness, and legibility to select a light type that remains clear even in daylight or against busy backdrops. </br></br>In short, the hardware choice should reflect your skill level, desired aesthetics, and how you intend to place the indicator for the best visibility.
Getting signals to trigger the flashing light: triggering methods
Connecting a call event to a light requires a trigger signal that conveys “incoming call” to your device. Common approaches include smartphone automation apps and VOIP integrations that can emit a digital event, a local network message, or a Bluetooth/Wi‑Fi signal. If you’re using a microcontroller, you can route this trigger through a USB, Wi‑Fi, or Bluetooth module. IFTTT or Shortcuts on phones provide accessible ways to bridge the call signal to a smart-plug or LED controller. For VOIP setups, some routers and endpoints offer notifications that you can convert into a lighting cue. The practical plan is to test each path with your actual call source—mobile, desk phone, or VOIP—before committing to a single pipeline. This ensures the system is robust against minor latency or occasional dropouts. A reliable approach often combines a primary trigger (the phone or VOIP signal) with a fallback cue (a preset button or a secondary automation) to minimize missed alerts.
DIY: step-by-step Arduino-based flashing alert for calls
A hands-on route to a visual alert uses a microcontroller like an Arduino with a small LED. You’ll connect the LED (with a resistor) to a digital output, then program the board to flash when it detects a trigger. The trigger can be a network message from a phone, a Bluetooth notification, or a simulated signal that you can test with a PC script. Start with a simple blink pattern (e.g., 500 ms on, 500 ms off) and adjust brightness so the light is visible but not glaring. This block walks you through setting up the hardware (breadboard, jumper wires, power supply), wiring the LED, loading a basic sketch, and validating the response with a test signal. If you want color-based alerts, upgrade to an RGB LED and add software logic to change color by event type. Blinking Light emphasizes starting with a safe, low-brightness pattern to avoid disturbing sleep or concentration, then escalating only if needed.
Software-first routes: IFTTT, Shortcuts, and VOIP integrations
Automation platforms are ideal for non-programmers or quick-prototyping. IFTTT can connect a phone’s incoming-call trigger to a smart plug or LED controller, while Apple Shortcuts and Android equivalents enable conditional routines (for example, flash the light only during daytime hours). For VOIP ecosystems, look for native call-notification hooks or webhooks that can drive a compatible smart hub or microcontroller. The benefit of software routes is speed and flexibility; you can adjust triggers, delays, and patterns without touching hardware. But expect occasional latency depending on network conditions and app responsiveness. If you’re integrating with a home assistant or hub, you’ll likely create a dedicated automation flow that fires on “incoming call” events, then sends a command to the light controller. Always test with real calls to verify timing and reliability across different devices and environments.
Accessibility, safety, and brightness calibration
The goal is a light that communicates clearly without causing glare or discomfort. Choose an LED brightness that’s prominent but not harsh; consider using a diffuser or housing to soften direct glare. For people with photosensitive conditions, provide an option to reduce brightness or disable flashing after a short acclimation period. Use distinct flash patterns (short and frequent vs. long and sparse) to convey urgency without confusing other indicators (like doorbells). Color choices also matter—red or amber often reads as urgent, while blue or green can indicate lower priority or activity idle signals. If you use RGB LEDs, you gain the ability to map call types to different colors (e.g., incoming calls = red blinking, video calls = blue). Finally, document the system with a simple diagram so family members know what to expect and how to reset if the pattern stops working.
Troubleshooting common problems and quick fixes
If the light fails to flash on incoming calls, verify the trigger is actually firing. Check connections, ensure the LED is wired with a current-limiting resistor, and confirm the microcontroller or hub is receiving the signal. Latency issues can arise from network congestion or app delays; adding a local, hardware-based trigger can reduce this problem. If the light is flashing erratically, reassess your timing settings and debounce logic to prevent false positives. For smart-hub-based setups, ensure firmware is up to date and that the automation has the necessary permissions to run in the background. If all else fails, re-test with a simple, known-good trigger to confirm the hardware is functioning—then gradually reintroduce the original signal path. Blinking Light recommends maintaining a small, documented test routine that you run weekly to catch drift or firmware changes early.
Deployment checklist and final checks
Before finalizing your setup, confirm placement for optimal visibility (line-of-sight, not behind furniture), verify that the light won’t disturb neighbors, and annotate any brightness limits in the settings. Ensure the system gracefully recovers from power interruptions by including a startup check that reinitializes the LED state. Document the exact wiring, firmware version, and automation flow for future maintenance. Finally, consider creating a backup alert option (such as a phone vibration or message) in case the visual cue fails. A well-planned deployment minimizes false triggers and ensures consistent performance over time.
Tools & Materials
- LED light (single color or RGB)(Choose a brightness level appropriate for the room; RGB offers color-coded alerts)
- Resistors (220-330 ohm)(Current-limiting to protect the LED)
- NPN transistor or MOSFET(Useful for driving higher-power LEDs from a microcontroller)
- Breadboard(For prototype wiring without soldering)
- Jumper wires (male-to-male, female-to-male)(Varied lengths; organize to avoid loose connections)
- Microcontroller (e.g., Arduino Uno or ESP8266/ESP32)(ESP32 adds built-in Wi‑Fi for network triggers)
- USB power supply or USB cable(Power for the microcontroller; ensure clean supply to avoid flicker)
- Smart hub or bridge (optional)(Needed if you use IFTTT/SmartThings/Google Home for triggering)
- Smartphone with automation app (IFTTT or Shortcuts)(Helpful for rapid prototyping and non-coder setups)

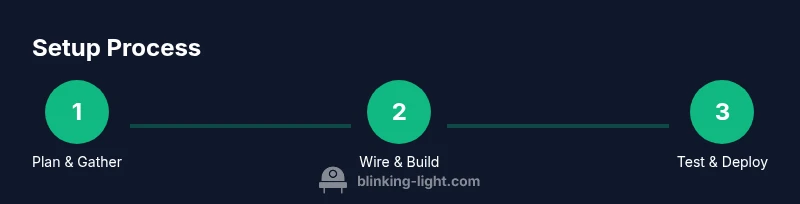

Steps
Estimated time: 1-2 hours
- 1
Gather all hardware and plan placement
Collect the LED, resistor, microcontroller, breadboard, wires, and power supply. Decide where the indicator will be placed for best visibility in daytime and nighttime. This step ensures you have all essential parts on hand before wiring begins.
Tip: Lay out components on the table to visualize routing and avoid accidental short-circuits. - 2
Wire the LED to the microcontroller
Connect the LED anode to a PWM-capable output pin via a resistor; connect the cathode to ground. If using RGB, repeat for each color channel you want to drive. Ensure the resistor value limits current to safe levels (typically 220–330 ohms for a 5V supply).
Tip: Double-check polarity before powering to prevent damage. - 3
Load a simple blink program
Upload a basic blink sketch to verify the LED can flash. Start with a 500 ms on, 500 ms off pattern to confirm timing and visibility.
Tip: Test with a short delay to ensure the LED returns to OFF state after a trigger. - 4
Create a trigger input
Add a trigger input that will drive the LED flash when a signal is received. This can be a local network message, Bluetooth notice, or a USB/serial command. Program the microcontroller to respond with your chosen pattern on signal detection.
Tip: Keep the trigger debounce-clean to avoid false positives. - 5
Integrate with your call signal
If you’re using a phone or VOIP, configure an automation (IFTTT/Shortcuts) to send the trigger to the microcontroller through a hub or direct USB/Wi‑Fi link. Test with a real call to verify latency and reliability.
Tip: Document the exact event name in your automation for easy maintenance. - 6
Calibrate brightness and flash pattern
Adjust LED brightness to a noticeable but non-intrusive level. Experiment with longer blink intervals for daytime use and shorter, more frequent blinks for nighttime alerts. Confirm that the pattern remains distinct from other indicators in the room.
Tip: Keep a simple brightness reference card to quickly compare settings. - 7
Test end-to-end and document
Run end-to-end tests using real calls or simulated events. Verify that the signal reliably triggers the LED within an acceptable time window and that the LED resets after a call ends. Create a quick diagram showing wiring and automation flow for future maintenance.
Tip: Record the working setup with photos to aid future expansion. - 8
Deploy safely and monitor
Move the hardware into its final enclosure or mount, ensuring that wiring is secure and that no hot components contact skin. Monitor performance for a week and note any missed triggers or steady-state flicker. If needed, refine the code or adjust the trigger timing.
Tip: Install a small label with troubleshooting steps for family members.
Quick Answers
Is it safe to use flashing lights around pets or people with photosensitive epilepsy?
Flashing lights can trigger photosensitive responses in some individuals. Use moderate brightness, offer a non-flashing alternative, and provide a quick disable option in case of discomfort. Consult a healthcare professional if unsure about specific sensitivities.
Flashing lights can affect some people with photosensitive conditions, so use moderate brightness and provide an option to disable flashing if needed.
Will this drain phone battery or affect network performance?
The impact is typically minimal when the trigger is a local wireless or hub-based signal routed to a low-power LED. If you rely on constant network listening for triggers, consider scheduling or using a dedicated controller to reduce phone power use.
Usually minimal battery impact if the trigger runs on a dedicated device rather than the phone itself.
Can I do this without coding or a microcontroller?
Yes. You can use smart bulbs or LED kits that respond to IFTTT or a hub routine to flash on an incoming call. This is a great entry path for non-programmers, though it may offer fewer customization options than a microcontroller.
Absolutely—no coding needed if you use smart-home automations connected to a call trigger.
What brightness level is best for day and night?
Aim for a brightness that is clearly visible without being distracting. A mid-range LED brightness with a gentle diffusion works well in most rooms; consider reducing brightness during nighttime hours.
Choose a comfortable brightness that’s visible but not glaring, and allow easy nighttime adjustments.
Will this work with doorbells or other indicators?
Yes. The same triggering concept can apply to doorbells or other indicators. Map the doorbell event to the lighting system, so it flashes when someone rings the bell or when a call comes in.
Absolutely—you can reuse the trigger for other indicators like doorbells.
Do I need a smart home hub for this to work?
A hub makes setup easier and centralizes control, but you can DIY with direct microcontroller connections and a Wi‑Fi module. Choose the approach that matches your comfort with networking and maintenance.
A hub helps, but it’s not strictly required if you’re comfortable wiring a direct trigger to a microcontroller.
Watch Video
Main Points
- Identify a clear visual cue that matches room lighting.
- Choose a triggering method that fits your tech comfort level.
- Test thoroughly and calibrate brightness for comfort and readability.
- Document the setup for easy maintenance and upgrades.
- Prioritize accessibility and safety in every step.
