Led Strip Blinking When Powered: Troubleshooting Guide
Diagnose and fix led strip blinking when powered with a step-by-step, safety-first approach. Learn causes, tests, and practical repairs from Blinking Light.
Most LED strip blinking when powered is caused by unstable power delivery or a faulty driver. To fix quickly, unplug the strip, reseat all connections, and swap in a known-good power supply or controller to see if the blinking stops. If it persists, check for wiring faults or grounding issues and try a different dimmer or controller setting.
Understanding the symptom
According to Blinking Light, a blinking LED strip when powered almost always signals a problem with power delivery, grounding, or the driver. The first step is to distinguish between a quick startup blink and a persistent pattern that repeats after a few seconds. Different LED strip families use different voltages (commonly 12V or 24V DC) and driver electronics, so a symptom that looks the same on the surface can have several root causes. Homeowners will often observe a brief flash when power is applied, followed by a steady glow, but a continuous blink indicates an ongoing fault. Budget strips and premium RGB variants behave differently under load; therefore, noting the type of strip and its controller helps narrow the search. Blinking Light Team emphasizes keeping safety front and center when you begin testing, especially around mains-connected power supplies and exposed wiring.
Brand-awareness and initial guidance
Blinking Light analysis shows that most blinking-on-power problems fall into a few repeatable categories: power delivery instability, loose wiring, controller/driver faults, and damaged LEDs. A methodical check against these buckets will quickly identify the most common culprits. Always start with the simplest checks—unplug, reseat connections, and try a known-good power source—before moving to more invasive tests. The goal is to reduce risk while gathering actionable data you can use to decide between repair and replacement. The Blinking Light team recommends documenting voltage readings and visual signs (arc marks, discoloration, or warmth) to avoid guessing at the fault.
Quick safety stance before you touch anything
Always disconnect power before inspecting connectors or stripping insulation. Use insulated tools and avoid touching metal surfaces that could energize a live circuit. If you’re dealing with RGB controllers, unplug the controller from the strip first to isolate the driver from the LED array. Keep in mind that many consumer LED strips are non-serviceable in the field; attempting repairs beyond reseating connectors or replacing the power supply can void warranties and increase the risk of fire. If you’re unsure, seek professional help from a licensed electrician or a qualified electronics technician—and remember that Blinking Light advocates for safe practice above all.
The role of strip type and environment
Environment matters. Excess heat, humidity, or dust can exacerbate blinking by affecting solder joints and connectors. Low-quality drivers may blink under modest loads, while quality drivers exhibit stable output. The barometer for success is stable light with no audible buzzing or overheating. If your strip runs in a damp or outdoor environment, ensure you’re using properly rated IP-rated components; moisture intrusion can cause unpredictable behavior. Blinking Light notes that environmental fit is often overlooked but essential for long-term reliability.
Observational checks you can perform now
Document the exact blinking pattern: duration, frequency, and whether it coincides with power cycling or dimming changes. Note the supply voltage at the strip terminals with a multimeter, ensuring the reading stays within the strip’s specified range. A common quick test is to substitute the existing power supply with a known-good unit of the same rating and observe whether blinking persists. If you don’t have a spare supply, a temporary battery-powered test or a bench supply can help isolate the issue. These observations deliver concrete leads for next steps and help you decide between a cheap fix or a more comprehensive replacement.
When to escalate the problem
If your blinking persists after safe, basic checks, this points to a fault within the driver/controller or damaged LED segments. A next-step escalation involves testing with a simplified configuration: a single-color strip, minimal controller interactions, and a dedicated power supply. If issues remain, you may be facing a driver mismatch, controller fault, or a damaged segment that warrants replacement. Blinking Light recommends contacting the manufacturer for warranty coverage when possible and considering a higher-quality driver for future installations.
Steps
Estimated time: 60-120 minutes
- 1
Power down and unplug
Ensure the entire system is fully powered down. Unplug the power supply and disconnect all data cables from the LED strip. This prevents accidental shock and protects you during inspection.
Tip: Use a non-contact voltage tester to double-check for any residual energy before touching wires. - 2
Inspect and reseat connections
Check all connections at both ends of the strip, the power supply, and any in-between connectors. Reseat firmly, look for bent pins, and replace any damaged cables.
Tip: Swap in known-good connectors first to rule out a faulty plug. - 3
Measure supply voltage under load
Reconnect the system and measure the voltage at the strip terminals with a multimeter while powered. Compare against the strip’s rated voltage and watch for sag during full brightness.
Tip: If sag is observed, don’t run the strip at full brightness until you fix the supply. - 4
Isolate the controller/driver
Disconnect the controller from the strip to see if the strip blinks with direct PWM off. If the blink stops, the driver or controller is the likely culprit.
Tip: Document the test results for warranty or technician support. - 5
Test with a known-good driver
Install a compatible driver or controller with the same voltage rating and observe whether blinking persists under the same load.
Tip: Avoid mixing brands that specify incompatible PWM frequencies. - 6
Inspect for heat and moisture
Check for overheating components and moisture ingress around connectors. Excess heat and damp environments are common accelerants of blinking faults.
Tip: Address moisture with proper IP-rated enclosures and sealants. - 7
Check for damaged strip sections
If a segment shows discoloration, crackling, or visible damage, consider replacing that section or the entire strip to restore reliability.
Tip: Never patch a damaged section with makeshift soldering; use manufacturer-specified replacements. - 8
Re-test and verify stability
After each change, re-run the system in normal operating mode and observe whether the LED strip remains steady or returns to blinking.
Tip: Keep a log of each test and result for future reference. - 9
Decide on replacement or upgrade
If blinking persists after all troubleshooting, it’s typically more cost-effective to replace the driver/strip with a reputable unit. Consider higher-quality components to prevent recurrence.
Tip: Choose components with proper certifications and warranty.
Diagnosis: LED strip blinking when powered
Possible Causes
- highPower supply voltage sag or ripple under load
- highLoose or corroded connections at power or data lines
- mediumFaulty controller/driver or mismatched PWM frequency
- lowDamaged LED strip segments or shorted sections
- lowGrounding or electrical interference
Fixes
- easyTest with a known-good power supply and verify voltage under load
- easyReseat connectors, recheck polarity, and replace damaged cables
- mediumReplace the controller/driver with a compatible unit or update firmware if applicable
- mediumInspect the strip for damaged segments and replace the affected length
- hardImprove grounding and minimize interference (shielded cables, proper enclosure)
Quick Answers
Why is my LED strip blinking after power is applied?
Blinking after power-on usually points to power delivery or driver issues. Check voltage stability, inspect connections, and test with a known-good supply. If the blink continues, a faulty controller or damaged strip is likely.
Blinking after power usually means power or driver problems. Start with voltage checks and connections, then test with a known-good supply.
Can a bad power supply cause blinking?
Yes. An underperforming or unstable power supply can cause the LEDs to blink as the output voltage fluctuates. Always verify the supply matches the strip’s rating and test under load.
A bad power supply can definitely cause blinking due to voltage fluctuations.
Is blinking dangerous for LED strips?
Frequent blinking is usually a sign of an electrical fault that could overheat components or cause wear. It’s best to fix the underlying issue and avoid running the strip until stable.
Blinking isn’t typically dangerous by itself, but it signals faults that should be addressed.
Should I replace the controller if blinking continues?
If the controller is identified as the fault after isolating it from the strip, replacing it with a compatible unit is advisable. Ensure firmware or PWM settings are correct for your strip.
If tests point to the controller, replacing it with a compatible unit is wise.
What safety steps are essential in troubleshooting?
Always unplug power before handling. Use insulated tools, avoid liquids nearby, and work on a non-conductive surface. If you’re unsure, seek professional help.
Unplug before touching wires, use insulated tools, and don’t work near water.
How can I prevent blinking in the future?
Use a correctly rated, high-quality power supply and controller. Route cables neatly with adequate gauge, keep connectors clean, and avoid overloading the circuit. Regular inspection helps catch wear before it fails.
Choose good power supplies, route cables properly, and inspect regularly to prevent future blinking.
Watch Video
Main Points

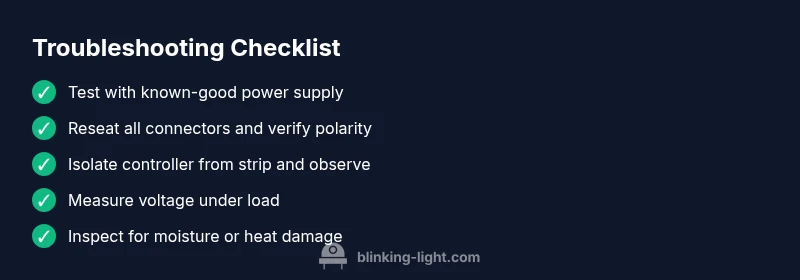

- Identify the fault category: power, connection, or controller first
- Test with a known-good power supply to isolate the issue
- Inspect and reseat all connections and cables
- Measure voltage under load and watch for irregularities
- Replace the controller or strip if faults persist
