LiftMaster Wall Control Not Working: Blinking Light Troubleshooting

Understanding LiftMaster Wall Control Blink Codes and What They Mean

When a LiftMaster wall control blinks, it signals a fault in power, wiring, or signal between the wall control and the opener. The Blinking Light team notes that different blink patterns can indicate different issues, but a consistent blinking light on a non-responsive system usually points to a simple fix. In the context of liftmaster wall control not working blinking light, focus on power, pairing, and wiring first.

The most common pattern is a slow, single blink that resets when the wall control is pressed; this typically means the opener is not receiving the command due to a loose connection or a momentary power dip. A rapid, continuous blink may indicate a locked button or an out-of-sync receiver. While it’s tempting to replace hardware right away, most garage door indicator problems can be cured with targeted tests and careful re-pairing.

According to Blinking Light, starting with the power supply and the wall-control wiring eliminates many simple faults. If you only replace the wall control, you risk missing a deeper issue inside the opener’s receiver or a fault in the wall box. By understanding these patterns, you can triage quickly and avoid unnecessary replacements.

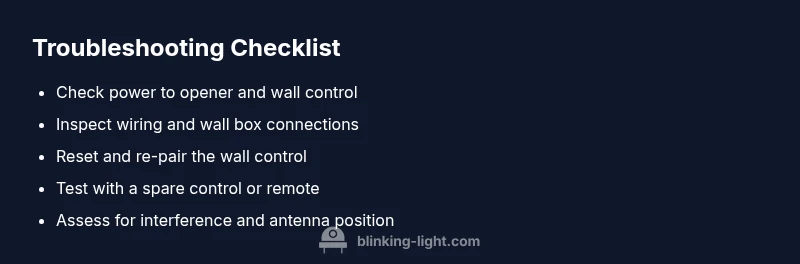

Quick Home Checks You Can Do Before Diving Deeper

Before you dive into more complex troubleshooting, run through a few quick, safe checks that cover the most common culprits. These checks don’t require tools beyond a screwdriver and your eyes, but they can save you time and frustration.

• Verify the opener has power: if the unit is plugged into a switched outlet, ensure the switch is ON and the circuit is live. Check your home’s breaker panel for any tripped breakers related to the garage. A quick reset can resolve many power-related blinking lights.
• Inspect the wall control: look for loose screws at the wall box, damaged or frayed wires, and a button that sticks when pressed. Tighten screws and reseat connectors if you can do so safely.
• Check the control indicator: many LiftMaster wall controls have an LED; if the LED is dim or off, the issue may be a power fault or a failing control module. Consider testing with a spare wall control if you have one.
• Test with another controller: if remotes or keypads work while the wall control does not, the wall control or its wiring is the likely fault. This helps you distinguish between opener issues and the control itself.
• Look for a lock/hold setting: some models include a lock switch that disables the wall button. Ensure Lock is not engaged.
• Review safety sensors and emergency disconnect: a fault in safety sensors can affect operation and sometimes trigger blinking indicators.

Diagnostic Flow: Symptom to Diagnosis

A structured diagnostic flow helps you avoid wasted steps and safely isolate the root cause. Start with the simplest checks and progress to targeted tests.

• Symptom: The wall control blinks when pressed and the door does not move. This is the most common signal of a fault in power, pairing, or wiring.
• Causes:
  • Power issue — power to the opener or wall control is interrupted. likelihood: high
  • Loose/damaged wall-control wiring — the low-voltage circuit between the wall switch and opener is compromised. likelihood: high
  • Out-of-sync learn/pair — the opener’s receiver has lost its pairing with the wall control. likelihood: medium
  • Damaged wall-control PCB — internal electronics are failing. likelihood: low
• Fixes (in order):
  • Check outlet and reset breakers, then test again. difficulty: easy
  • Tighten screws at the wall box and reseat connectors; inspect for corrosion. difficulty: easy
  • Perform the Learn/Pair procedure on the opener and the wall control. difficulty: medium
  • If the light still blinks after these steps, replace the wall control or seek professional service. difficulty: hard

Step-by-Step: Reset, Re-Pair, and Test

Following a structured reset and re-pair sequence can resolve most blinking-light issues tied to pairing or power. Proceed in order and test after each step.

1. Power cycle the entire system: unplug the opener for 30 seconds, then plug back in and confirm power at the outlet. 2) Reset the wall control to factory defaults if your model supports it; consult the manual for the exact sequence. 3) Put the opener in Learn/Training mode by pressing and holding the Learn button until the LED blinks. 4) Re-pair the wall control by pressing its button until the opener acknowledges the pairing. 5) Test the wall control and confirm the door responds. 6) If needed, repeat with a spare wall control to isolate the issue.

Tip: Keep the wall control and opener within the recommended range to ensure strong signals during testing.

Step-by-Step: Check Power, Wiring, and Interference

A strong, repeatable signal depends on solid power and clean wiring. Follow these steps to verify that the basics are solid before moving to advanced diagnostics.

1. Confirm the opener and wall control share a reliable power source. Check for tripped breakers or a warm outlet that hints a problem. 2) Inspect the wall-control wiring at both ends for loose screws, damaged insulation, or pinched conduits; reseat and tighten as needed. 3) Eliminate interference: move cordless phones, routers, or other electronics away from the wall control and receiver. 4) Test with a known-good wall control if available to determine whether the fault lies with the original unit.

Tip: Document any wiring changes so you can revert if needed.

Step-by-Step: Validate the Receiver and Antenna Alignment

Sometimes the receiver inside the opener or the antenna can be misaligned or dirty, causing intermittent communication faults that show as a blinking light on the wall control.

1. Inspect the receiver board and antenna for physical damage or moisture. Gently reseat connectors if your model allows access. 2) Ensure the antenna string is not bent or clipped and is directed unobstructed toward the ceiling. 3) Clean any dust or corrosion on contact points with a dry brush; avoid liquids that could short components.

Tip: If your opener is older, an aftermarket receiver upgrade may restore reliable communication and reduce blinking indicators.

Common Pitfalls and When to Call a Pro

Even diligent DIY troubleshooting has its limits, especially when dealing with high-voltage components or moisture ingress. Avoid panicking and avoid wiring repairs beyond your comfort level. If you see scorching, burnt smells, or see exposed conductors, stop immediately and call a licensed technician. Incorrect handling can create a shock hazard or cause further damage to the door system.

A professional should also be consulted if the wall control continues to blink after all basic tests, or if you suspect a failed control module or PCB. Pro service can diagnose subtle issues in the opener receiver, wiring harness, or control circuit that aren’t obvious from surface tests.

Prevention Tips to Keep Your LiftMaster Wall Control Working Smoothly

Preventive maintenance reduces the chance of repeat blinking problems and keeps your garage running reliably. Apply these best practices to minimize future outages.

• Regularly inspect the wall-control buttons and housing for wear or moisture.
• Keep the wall control and receiver area clean and free of dust and moisture.
• Periodically re-pair remotes and wall controls to maintain a clean signal map.
• If you install new electronics in the garage, test their interference with the opener’s signaling and adjust placement as needed.
• Schedule annual checks of outlets, breakers, and wiring connections in your garage for safety and reliability.
