Repair Blinking LED Light: Practical, Safe Steps and Tips

Understanding blinking LED signals across devices

Blinking LED indicators are among the most common trouble signals homeowners encounter on cars, appliances, routers, and smart home gear. The Blinking Light team emphasizes that most blinking patterns are not random aesthetics; they encode a fault, overload condition, or firmware misconfiguration. When you approach a blinking LED, you’re diagnosing a signal that points you toward the root cause rather than chasing a single, generic fix. In this first section we’ll outline what blinking typically means in different contexts—power supply faults, loose connections, and calibration or software issues. Recognizing the pattern helps you decide whether you can safely tackle the repair or if professional service is warranted. As you read, keep in mind that a structured diagnostic mindset reduces wasted time and unnecessary part swapping.

Common causes of blinking LEDs and what they imply

Blinking can arise from several root issues. Power supply fluctuations, faulty capacitors, or sagging voltage during startup are frequent offenders. Loose connections or corroded contacts can also trigger intermittent blinks, especially in outdoor or humid environments. In some devices, firmware or configuration mismatches produce blinking as a warning that the system is not in an expected state. Temperature, moisture ingress, and aging components contribute to drift in current or voltage, which the LED then communicates as a blink pattern. By categorizing faults into electrical, mechanical, and software domains, you create a clear roadmap for testing and repair. This section also introduces a practical diagnostic ladder you’ll use in the step-by-step sections that follow.

Safety first: when to stop and seek professional help

Electrical work carries risk when you work with live circuitry or mains-powered devices. If you encounter a high mains supply (AC), large capacitors, or devices without clear labeling, pause and unplug the device. Never touch exposed conductors with power applied. For any operation involving disassembly of sealed housings or potential battery hazards, consult the manufacturer’s service manual or call a qualified technician. Personal protective equipment (PPE) such as safety glasses and non-conductive gloves should be used, and static-sensitive work practices maintained when handling logic boards or semiconductor components. If you’re unsure about voltages or safe disassembly, opt for professional service to avoid injury or further damage.

How to prepare and set up your diagnostics workspace

Create a clean, well-lit workspace with a static-safe mat or an anti-static wrist strap. Gather essential tools in advance: a multimeter, appropriate screwdrivers, and a known-good LED or indicator module for testing. Label wires and connectors as you remove them to restore the original configuration accurately. Clear the area of liquids and clutter to prevent accidental shorts. If you’re testing devices that run on batteries, ensure batteries are fresh and installed correctly to avoid skewed readings. Finally, document the model numbers and LED specifications to ensure compatible parts if replacements are needed.

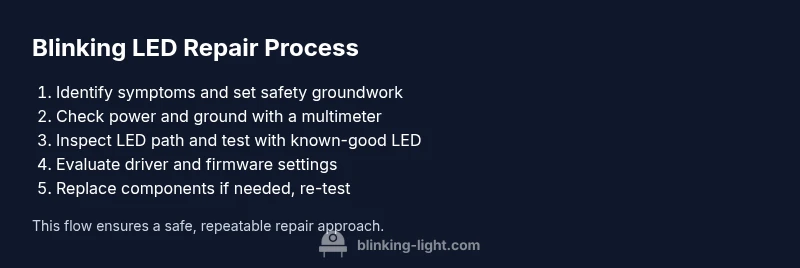

Diagnostic workflow overview you’ll follow

A disciplined workflow helps you trace the blink to its source. Start with a quick visual inspection of the LED, its housing, and nearby connectors for signs of damage or corrosion. Move to safe power checks: verify supply voltage with your multimeter, confirm ground continuity, and measure expected current through the LED path. If readings look off, test the wiring harness and connectors for continuity or shorts. When electrical checks pass, review firmware or configuration settings that could cause blinking due to calibration, boot sequences, or security features. This structured approach minimizes unnecessary steps and gives you a repeatable process you can use again with other devices.

Tools and safety: what you need before you begin

Before you touch a live device, assemble your toolkit. Essential items include a digital multimeter capable of measuring voltage, current, and resistance; a small screwdriver set; and a dull precision knife or snips for wire trimming if needed. An anti-static wrist strap or mat is recommended to protect sensitive electronics. Keep a spare LED indicator or compatible replacement module on hand in case you determine the LED itself is at fault. For soldering steps (if required), use lead-free solder and a temperature-controlled iron. Finally, have a notebook or digital document ready to record readings, configurations, and results for future reference.

Step-by-step diagnosis: verify power and ground first

Start by unplugging the device and discharging any high-voltage capacitors if applicable. Use the multimeter to confirm that the input supply matches the device’s rated voltage. Check the ground path to ensure there are no open grounds that could cause misbehavior. If the LED blinks during power-on, note the pattern and the temperature of nearby components. Document readings in your repair log. This early phase often reveals the simplest fixes and protects you from chasing phantom faults later.

Step-by-step diagnosis: inspect connections and LED path

Carefully inspect all connectors and cables leading to the LED. Look for loose pins, bent terminals, or signs of corrosion. Wiggle test wires at the LED and connectors while monitoring readings to spot intermittent faults. If the LED has a dedicated resistor, you should measure its resistance to verify it sits within the expected range. When a connection shows a poor contact, reseat or replace the connector. If corrosion is present, clean or replace the affected segment to restore a stable path for current.

Step-by-step diagnosis: test the LED and its driver

With power off, verify the LED’s forward voltage and brightness under controlled conditions. If there’s a separate LED driver circuit, check its output voltage and current with the multimeter or a bench supply. Replace the LED indicator with a known-good module temporarily to confirm whether the issue lies with the LED or the driver. If the driver is faulty, you may need to replace or repair that board section rather than the LED itself. Always ensure you’re testing within safe limits to avoid damaging components.

Step-by-step diagnosis: firmware, software, and configuration checks

In devices with firmware or configurable LEDs, incorrect settings can cause blinking patterns. Access any available service menus to reset LED behavior to default or to check for firmware updates. If you suspect a software fault, perform a safe reset or reflash to the latest version from the manufacturer. Make sure to back up data before performing resets. After any firmware changes, re-test the LED to verify whether the blinking persists.

Step-by-step diagnosis: component-level fixes and when to swap parts

If the LED, its driver, or related passives show signs of aging or damage, component replacement is a common next step. Replace the LED with a compatible unit, ensuring the forward voltage and current ratings match the original. When replacing a resistor or capacitor, re-check the circuit to confirm values after soldering. If soldering isn’t your strength, consider a modular replacement that includes the entire indicator assembly. After any swap, reassemble, power the device, and run a functional test to confirm successful repair.

Preventive maintenance to minimize future blinking

Once you stabilize the LED behavior, adopt a routine to prevent recurrence. Keep devices in a dry, cool environment and shield sensitive electronics from moisture, dust, and temperature extremes. Use surge protection and clean power supplies to minimize voltage fluctuations. Periodically inspect connectors and re-seat them to avoid corrosion and looseness. Document any service performed for future reference, so you can learn from each repair and improve your troubleshooting efficiency.

Real-world scenarios and quick, safe fixes you can apply now

Many blinking LED issues in home devices resolve with a simple reseat of connectors or a power cycle. In routers and modems, blinking often signals a startup or firmware update; a missed update can cause repeated blinks in some models. If you’re working on appliances, check for clogged fans or blocked vents, as overheating can trigger protective LED signaling. In wearables or smart devices, battery condition and charging circuits are frequent culprits. Use the diagnostic ladder described above to approach these scenarios consistently and safely.

Authoritative sources you can trust for electrical safety and LED basics

For safe handling, consult established authorities and technical references. OSHA provides electrical safety guidelines for handling voltage and circuits. NIST offers standards and best practices for measurement and calibration of electronic components. CDC/NIOSH covers worker safety and PPE when working with live equipment. By referencing these sources, you’ll ensure your LED repair work aligns with industry safety standards and measurement practices.
