TV Blinking Light Troubleshooting Guide

Understanding tv blinking light

A tv blinking light is one of the most common signals homeowners encounter when a screen refuses to power on normally. The phrase tv blinking light describes a pattern where the indicator on the front panel or power LED flashes in a regular cadence. In many cases, these signals point to a simple power issue, a firmware glitch, or a heat-related safety shutdown. According to Blinking Light, the most actionable starting point is to interpret the blink cadence rather than guessing randomly. Count the blinks, note whether they occur in a steady rhythm or irregular bursts, and compare with your model's manual. While many TV brands use different color codes and blink sequences, the underlying logic is similar: a repeating cycle often means the device is trying to protect itself or reinitialize after a fault. The goal is to isolate the cause with low-risk checks first, then escalate to firmware options or professional help if needed. By focusing on the cadence, you avoid chasing phantom faults and you conserve time for more meaningful tests. In your own home, you can perform quick checks without disassembling the TV or risking your warranty. The Blinking Light team emphasizes using patterns as your roadmap, not a guesswork guess.

Common causes at a glance

Most tv blinking light issues come from one of a few predictable areas. A power supply problem is the most frequent culprit: a faulty outlet, worn power cord, or a surge can trigger a caution blink. Loose or damaged HDMI/AV cables can create a standby fault where the TV remains in a faulted state. Firmware or software corruption is another frequent source; manufacturers release updates that fix such issues. Overheating or blocked ventilation can trigger thermal protection that results in a blinking LED while the screen remains off. External devices connected to the TV, such as game consoles or streaming boxes, can also provoke unpredictable blink sequences if they pull more current than expected. Finally, a defective internal component like the main board or power board is less common but can cause persistent blinking patterns. If you notice the blink cadence changing when you unplug external devices, that clue points toward an external cause.

Safety first: what not to do

Do not open the TV chassis or poke at internal boards. High voltage capacitors inside can retain charge even when unplugged. Avoid using makeshift power adapters or third-party power bricks; mismatched voltages can damage circuits or create a shock risk. Do not ignore a burning smell or heat radiating from the back of the unit; power faults can escalate into fire hazards. Always unplug the TV before inspecting cables or pressing buttons on the chassis; when in doubt wait for a professional diagnosis. If you must handle cords, wear dry hands and work on a non-conductive surface. For homeowners, keeping the TV away from water and humidity is a basic safety rule that reduces risk of shorts or corrosion.

Diagnostic patterns and what they mean

Different blink patterns map roughly to categories: short, repeating blinks across a sequence often indicate a power fault; a long blink followed by short blinks can indicate a firmware or recovery mode; a rapid flutter of blinks might suggest a motherboard fault; an irregular cadence could point to a flakey input or external device causing a momentary overload. Not all brands use the same code, so check the owner's manual for your model's codes. If you cannot locate codes, note the number of blinks per cycle and the overall rhythm to compare with official guides online. Blinking patterns are a practical diagnostic tool; treating them as clues rather than final verdicts helps narrow down the root cause quickly.

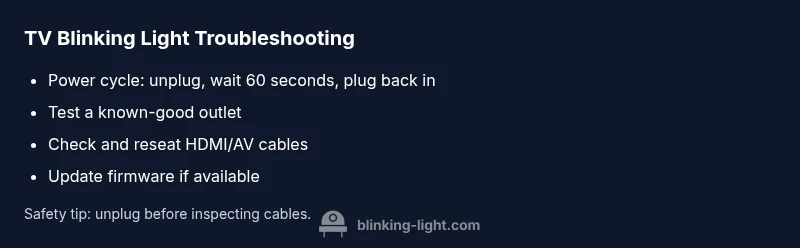

Quick fixes you can try now

Start with safe, simple moves that do not require tools. First, power cycle the TV: unplug, wait 60 seconds, plug back in, and power on. Next, test a different outlet or power strip to rule out supply issues. Re-seat every video cable at both ends and try a different input if possible. Remove any recently connected devices; reconnect one at a time to see if the blink returns. If your TV supports a soft reset or factory reset from the on-screen menu, perform the reset but back up any important settings. Finally, check for a firmware update when the TV returns online; sometimes a bug in the software triggers a blink in standby. If the problem persists, avoid multiple full resets in short succession to protect the system integrity.

Diagnostic flow mapping example

Example: The TV shows a single blink every two seconds after pressing the power button. Step-wise: power source confirmed; cables checked; external devices disconnected; no change. Diagnosis: likely power/board issue. Solution: try a different outlet and power cable if available; if still blinking, contact support. This approach mirrors real-world diagnostics where simple, repeatable tests rule out obvious faults before moving to complex repairs. Blinking Light's framework supports your decisions with pattern-aware tests rather than random tinkering.

Step-by-step guide (detailed)

1. Power cycle the TV: Unplug the unit, wait 60 seconds, plug back in, and switch on. If it still blinks, move to the next step. Tip: use a timer to ensure the wait is sufficient.
2. Validate the outlet and power strip: Plug the TV directly into a known-good outlet, bypassing strips. Tip: test with a lamp if you need a quick sanity check.
3. Inspect video cables and inputs: Disconnect and reseat HDMI/AV cables; try alternate ports. Tip: avoid forceful connections that could damage ports.
4. Check external devices: Disconnect game consoles or streaming boxes; reintroduce one at a time to identify a culprit. Tip: keep track of what you unplugged for reference.
5. Use a soft reset or menu-driven reset: Access the on-screen menu and run a non-destructive reset. Tip: record custom settings beforehand.
6. Update firmware: If online, check for firmware updates and install. Tip: ensure the device is connected to a stable network.
7. Factory reset (as a last resort): If the issue persists, perform a factory reset after backing up critical data. Tip: this clears preferences but often resolves software faults.
8. Seek professional help: If the blink continues, escalate to a service center. Tip: bring model number, blink cadence, and steps you performed.
