LED Strip Flicker Troubleshooting Guide

Understanding LED strip flicker and its causes

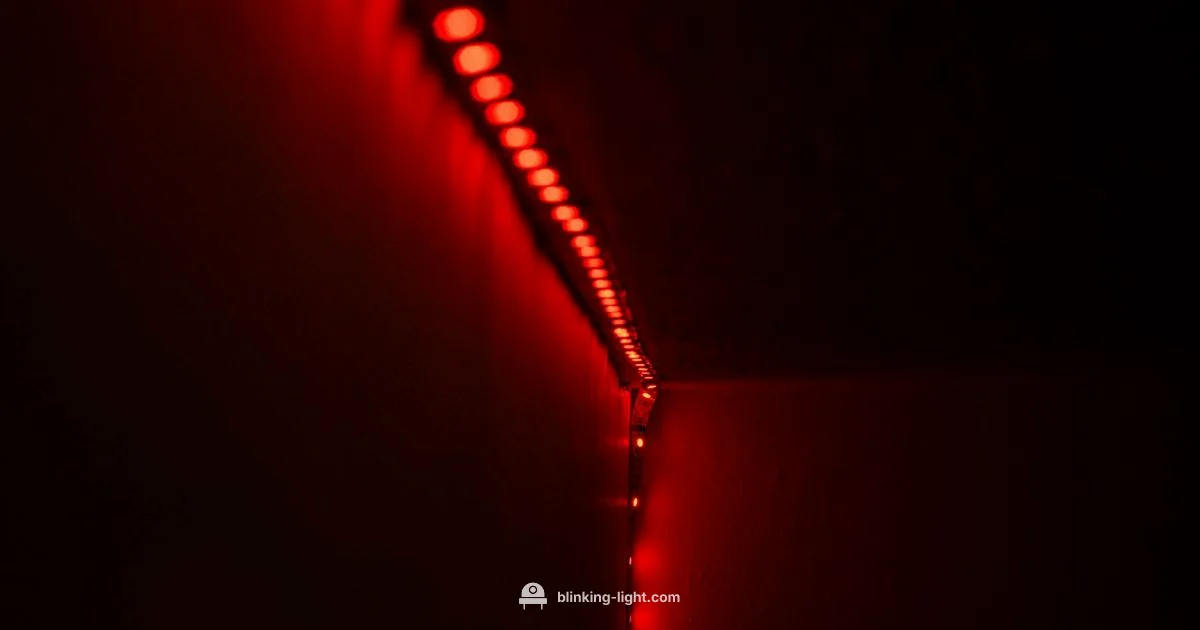

LED strip flicker happens when light output varies in brightness or color as you watch. In home setups, flicker is especially annoying because it can cast banding or cause eye strain. According to Blinking Light, LED strip flicker is typically caused by power supply instability, dimmer compatibility, or a damaged segment or loose connection. The Blinking Light team found that many flicker issues originate at the power source or with control hardware rather than the LED strip itself. Before you replace an entire strip, check the basics: consistent voltage, solid connectors, and compatible control gear. Understanding the root cause guides you to the right fix and prevents unnecessary replacements. If you see color shifts or partial sections dimming, document when it happens (time of day, ambient temperature) because thermal effects can contribute to flicker in longer runs. Keeping notes helps you verify a fix later and prevents recurring problems. Resolving the issue typically requires a calm, methodical approach rather than a full replacement.

Quick checks you can perform right away

Start with the simplest steps: unplug the setup and reseat all connectors; a loose ribbon or connector can introduce intermittent contact. Verify the power supply rating matches the strip’s voltage and current requirements; underpowered or aging drivers are frequent culprits. If you use a dimmer or controller, bypass it temporarily by connecting the strip directly to the power supply to see if flicker persists. Inspect for damaged or corroded contacts, bent pins, or water exposure in outdoor installations. Check that the strip segments are correctly cut and joined with proper solder or connectors; a miscut segment creates uneven current paths that produce flicker. If you’re using a long run, consider breaking it into shorter segments with their own drivers to reduce voltage drop. Finally, check for controller firmware updates if you’re using a smart controller—firmware can fix PWM timing issues that cause flicker. If the issue remains, proceed to systematic testing described in the diagnostic flow.

Electrical considerations: drivers, PWM, and voltage

LED strip flicker often traces back to the power chain. The driver converts AC to low-voltage DC, and any instability translates into visible flicker. Constant-current drivers handle long runs better than simple constant-voltage supplies, but only if the strip is designed for that approach. PWM dimming, common on smart controllers, rapidly cycles brightness; low PWM frequencies are easier to perceive as flicker. High-frequency PWM reduces perceptibility, but only if the controller and strip support it. Voltage drop along long runs can cause sections near the power source to be bright while farthest sections dim. This is especially noticeable with high-density strips or higher-powered colors (like white and blue). To test, temporarily bypass dimming and measure voltage at the far end with a multimeter; you should see a stable reading close to the rated supply. If the flicker stops when bypassed, your dimmer/driver is the root cause. Select a driver rated for the length and total current, and verify the color temperature remains stable across the strip.

Diagnostic flow: symptom → diagnosis → solutions

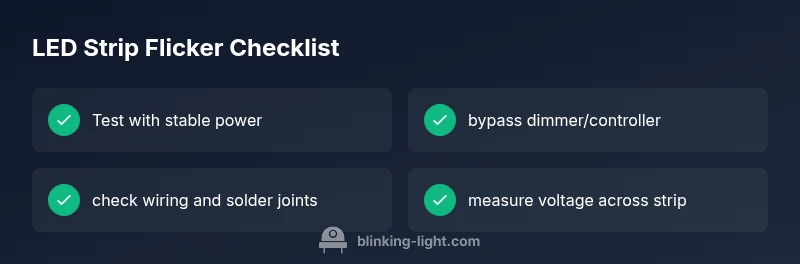

Use a simple flow to isolate the cause quickly. Symptom: Visual flicker, especially at high brightness or when color shifts occur. Potential causes include power instability, dimmer incompatibility, loose wiring, or damaged segments. Action: Test with a known-good power supply, bypass dimmers, reseat connectors, and measure voltage across the strip. If the symptom persists, escalate to replacing the driver or strip segment, or updating firmware for smart controllers. This flow keeps you focused and avoids unnecessary replacements.

Step-by-step fixes for the most common causes

1. Power cycle and direct test — Power down, unplug, and connect the strip directly to a known-good supply. Then re-power to verify if flicker persists. Tip: Always unplug before handling. 2) Test with a known-good power supply — Use a supply rated for the full length and current; measure voltage at the far end. Tip: Avoid using multiple adapters in series. 3) Bypass dimmer/controller — Temporarily connect straight to the supply to see if flicker remains; if gone, the dimmer/controller is the culprit. Tip: Check PWM frequency compatibility. 4) Check wiring and connectors — Re-seat all connections, clean contacts, and replace damaged connectors. Tip: Use proper crimping or soldering for reliability. 5) Isolate damaged segments — Cut out flickering sections and replace with compatible segments; test incrementally. Tip: Maintain consistent color and density. 6) Driver and strip compatibility — If flicker continues, replace with a driver designed for the strip length and verify the entire run is within spec. Tip: Keep spare drivers on hand for quick swaps.

Safety tips and warnings

LED strip work involves mains-adjacent components in some setups. Always disconnect power before handling, especially indoors or outdoors where moisture is present. Use only rated drivers and connectors designed for your strip; mixing voltage and current can worsen flicker or cause damage. If you smell burning insulation or observe overheating, stop and call a professional. Do not pinch or crush wires; avoid bending the strip beyond manufacturer specs. When in doubt, consult a qualified electrician or the manufacturer’s support resources.

Prevention and long-term maintenance for consistent LED strip performance

To prevent future flicker, plan your layout to minimize voltage drop by keeping runs short or using separate drivers for long sections. Use high-quality, compatible drivers and controllers, and avoid mismatched PWM settings. Seal outdoor installations against moisture and dust; check seals annually. Keep a small spare of the most common strip length and a spare driver for fast swaps. Regularly inspect connectors for corrosion and re-seat them if you notice looseness. Finally, document changes and firmware updates to trace what fixes work over time.
