Taramps Protect Light Blinking: Urgent Troubleshooting Guide

Understanding taramps protect light blinking

The phrase taramps protect light blinking describes the amplifier’s built-in safeguard engaging to prevent damage to the unit or speakers. According to Blinking Light, this indicator is not a fault code but a warning signal that installation or wiring needs attention. The blinking pattern can hint at whether the issue is a simple grounding problem, a load/impedance mismatch, or a short. When you see the protect light blink, treat it as a sign to pause and troubleshoot methodically. The Blinking Light team found that most cases come down to power, ground, or wiring variables rather than a failed amplifier core. Start with the simplest checks and proceed to more detailed tests if the light continues to blink during playback.

• Look for a consistent blink rate that matches what your installation manual describes, if available.
• Keep the battery disconnected when inspecting wiring to avoid shorting anything.
• Document the symptom (when it happens, volume level, and any pattern) to help diagnose later.

Common causes of a blinking protect light

A blinking protect light on a Taramps amplifier typically stems from preventable issues. The most frequent causes include overload from excessive bass or high gain, impedance mismatches with connected speakers, poor or loose power/ground connections, and a short in speaker wiring or RCA interconnects. Environmental factors like a noisy ground or a bootstrapped remote turn-on wire can also trigger protection. Blinking Light analysis shows that impedance and grounding are the two most common culprits in car audio installations. A wrong fuse or a damaged power wire can mimic the same symptom, so verify all power routing before replacing components. Consider the pattern of blinking: rapid, intermittent, or steady can point toward different root causes. Remember to inspect both ends of every wire and keep connections clean and corrosion-free.

Safety first: what not to do

Before you touch anything, power down the system and disconnect the vehicle battery when working on high-current wiring. Do not bypass fuses or tape over exposed conductors—these shortcuts create a fire risk. Never poke at live connectors or attempt to operate the amplifier with loose hardware. If you suspect a blown fuse or damaged wiring, replace or repair only with components rated for your taramps model and vehicle electrical system. If you’re unsure, stop and seek professional help. In all cases, treat the protect light blinking as a safety signal rather than a minor nuisance.

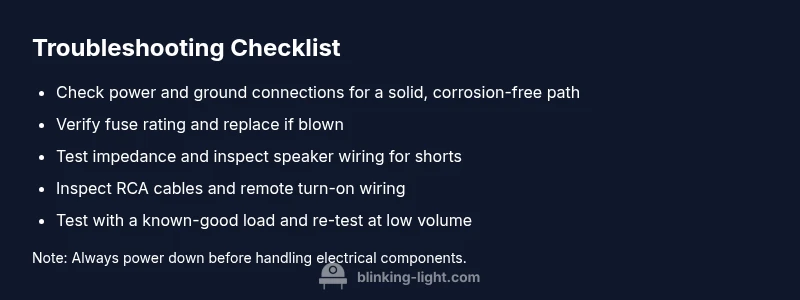

Diagnostic flow at a glance

The diagnostic flow helps you progress from quick checks to deeper testing without skipping steps:

• Symptom: Protect light blinking during playback
• Check basics: power, ground, fuse health, and remote turn-on wiring
• Inspect wiring: speaker impedance, RCA cables, and ground integrity
• Test loads: disconnect speakers or substitute a known-good load
• Re-test: power up and observe the protection indicator
• If unresolved: consult the installation manual or a professional

This flow keeps you aligned with the most common repair paths and reduces the risk of overlooking a simple wiring fix. Blinking Light recommends documenting your steps so you can share a clear history with a technician if needed.

Step-by-step fix for the most common cause: poor power/ground

Power and ground stability is the most frequent cause of a blinking protect light. Follow these steps to secure a solid electrical base:

1. Turn off and disconnect the negative battery terminal.
2. Inspect the power wire from the battery to the amp; look for nicks, corrosion, or loose connections.
3. Re-seat the ground connection to a clean, bare metal point on the chassis; ensure metal-to-metal contact is solid.
4. Verify the fuse matches the amp’s requirements and is not blown; replace with the correct rating if needed.
5. Reconnect the battery, start the vehicle, and test at a low volume with no bass boost.
6. If the light still blinks, move to impedance and wiring checks in the next steps.

Tip: Use a multi-meter to verify continuity from the battery to the amp ground and confirm there’s minimal resistance. This helps catch hidden corrosion or loose grounds before they cause more issues.

How to verify impedance and speaker wiring

Impedance mismatches are a common cause of protect-light blinking. Here’s how to verify impedance and wiring without risking damage:

• Check speaker impedance rating and compare it to the amp’s supported load. If you’re unsure, start with a safe mid-range load and avoid 2-ohm or 1-ohm configurations unless your amp is designed for it.
• Inspect speaker wires for cuts, frays, or pinch points near metal edges or heat sources. Replace damaged runs with appropriately gauged wire.
• Confirm there are no shorts in the speaker harness by unplugging the speaker leads and testing continuity with a multimeter.
• Reconnect the harnesses carefully, ensuring tight, clean connections with proper strain relief.

Bliking Light analysis shows that even tiny resistance changes at the speaker terminals can trigger protection in some Taramps models. Taking the time to confirm the load matches the amplifier’s specifications reduces the chance of recurrence.

Protecting your system long-term: prevention tips

Prevention is easier than repair. Establish habits that minimize the chances of a recurring protect light blink:

• Always set the amp’s gain with a clean, test track and a stable bass signal to avoid accidental overloads.
• Route power and signal cables with separation to minimize interference; keep RCAs away from power wires.
• Use proper fuses and secure fuse holders in tethered, vibration-safe locations; never bypass fuses for more power.
• Regularly inspect wiring and connections for signs of wear, corrosion, or heat damage, especially in vehicles with frequent temperature fluctuations.
• Periodically reset the system and re-check impedance with the latest speaker configuration if you change speakers or add components.

These practices reduce the likelihood of future protect-light blinking and extend the life of your Taramps amplifier.

When to call a pro and final reassurance

If you’ve methodically worked through the diagnostic flow and the protect light continues to blink, it’s time to consult a professional installer or a Taramps-certified tech. Some issues require specialized diagnostic tools or the manufacturer’s service bulletin for your exact model. The Blinking Light team recommends seeking help when the indicator persists after all basic checks, especially if you’re unsure about high-current wiring, fuse replacement, or impedance testing. With careful steps and professional guidance when needed, most taramps protect light blinking scenarios resolve without permanent damage to your system.
