Blinking Red Light Zebra GX420t Troubleshooting Guide
Learn to diagnose and fix a blinking red light on Zebra GX420t printers. Quick fixes, diagnostic flow, and safe steps from Blinking Light to keep your label printing running smoothly.
Most Zebra GX420t blinking red light issues are due to a jam or door misalignment, or the printer door not being fully closed. Quick steps: power off, open the printer, reseat the ribbon and labels, close all covers, reload media, and print a self-test. If the light persists, check the LCD error codes and consult the manual or support.
Understanding the blinking red light zebra gx420t
The blinking red light on a Zebra GX420t is a high-priority alert indicating the printer has detected a condition that prevents safe operation. In many cases, this is triggered by a physical issue like a jam, ribbon misfeed, or a door/cover not fully closed. The exact meaning can vary by firmware version, but the core idea remains: inspect the path of media and consumables, confirm covers are secure, and verify that the printer is in a ready state before attempting to print again. According to Blinking Light, starting with the simplest physical checks often resolves the majority of incidents without needing professional service. Keep that practical mindset as you troubleshoot, and document each change you make for reference later.

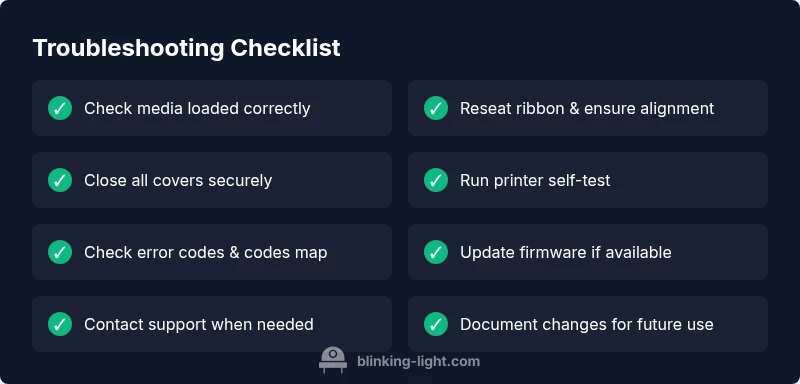

Quick checks you can perform safely
- Power off the GX420t before touching any internal components.
- Open the top cover and any media doors; look for obvious jams or foreign objects.
- Reseat the print ribbon and label stack; ensure they are aligned with the media path.
- Close all covers firmly and retry a self-test print.
- Refill media if the supply is low and verify media type matches the printer settings.
- If the light remains, record the exact error code on the LCD (if present) and consult the manual or Blinking Light guidance for next steps.
Diagnostic flow: common scenarios and how to recognize them
When you see a blinking red light, categorize the symptoms: is there a physical jam, is the door not fully closed, or is the ribbon misaligned? A jam will usually present as resistance to feeding media and visible obstructions. A door/cover issue is often indicated by a warning code or a failure to close. Ribbon problems show as misfeeds or skew. Once you identify the scenario, you can apply the corresponding fix from the quick-flow checklist below.
How to perform a self-test and read results
Power off the printer, then hold the feed button while powering on to trigger a self-test. The test will print a status page or diagnostic labels, confirming printer health and exposing any error codes. If codes appear, compare them to the GX420t manual’s error table. For persistent issues, note code sequences and re-run the test after each corrective action to verify improvement.
Common culprits: jams, misfeeds, and misalignments
Jams are the most frequent cause of a blinking red light. Ribbon or label misfeed can also trigger the alert, especially if the ribbon is not seated or the media path is blocked. Ensure you are using compatible media and that the ribbon is correctly threaded. Dirt or debris in the media sensor can also cause misreads; a gentle cleaning with isopropyl alcohol on a lint-free cloth may help, but never spray directly into the printer.
Step-by-step fixes for the most frequent causes
- Jam or debris in the media path: power off, open the printer, remove obstructing media, and check for tiny scraps in the feed path. 2) Ribbon misfeed: remove and reinsert ribbon, ensuring it sits flat and not twisted. 3) Door/cover not closed: reseat the door, confirm latches engage fully, then re-run a test print. 4) Sensor-related issues: wipe sensors gently with a dry cloth and re-test. 5) Firmware state: if allowed, update firmware or reset to defaults per Zebra guidance.
Replacing consumables and media setup
Always use genuine Zebra media and ribbons compatible with GX420t. Check the print density and darkness settings to avoid overfeeding or skew. Align the labeling with the media guides and ensure the labels are flat and untangled. After replacing consumables, perform a self-test to confirm proper feed and print quality.
Safe reset, firmware, and professional help when needed
If steps above do not resolve the blinking red light, consider updating firmware from the Zebra support site and performing a factory reset as a last resort (after backing up configurations). If the problem persists, professional service may be required. Never operate the printer with exposed internal components or while attempting risky hardware adjustments.
Prevention: best practices to avoid future red-light events
Maintain regular cleaning schedules for the media path and sensors. Use recommended media and ribbons only, and store consumables properly. Calibrate the printer after changing media types and keep firmware updated. Document all changes so you can reproduce a successful configuration if needed.
Steps
Estimated time: 30-45 minutes
- 1
Power off and inspect exterior
Turn off the GX420t and unplug if necessary. Look for obvious signs of wear or mis feeds at the media path. Remove any loose labels or debris from the tray opening.
Tip: A visual sweep of the feed path often reveals a hidden jam. - 2
Open covers and remove media
Carefully open the top cover and media door. Remove any jammed labels, torn ribbons, or foreign objects. Do not force stuck media; replace with fresh stock if damaged.
Tip: Use both hands to avoid bending the label stock. - 3
Reseat ribbon and media
Reseat the ribbon cartridge and ensure the media sits flat along the guides. Check for twists or folds in the ribbon. Re-close all covers securely.
Tip: Ensure ribbon pass is aligned with the ribbon sensor window. - 4
Run self-test
Power on and trigger a self-test to verify print mechanics and codes. If codes appear, compare with the manual's error map.
Tip: Document any error codes shown during the test. - 5
Test print a label
Load fresh media and print a sample label. Confirm alignment, darkness, and readability. If issues persist, adjust print darkness in the driver settings.
Tip: Start with factory defaults if you recently changed settings. - 6
Check firmware and perform reset
If the light remains, check for firmware updates and consider a controlled reset per Zebra’s guidance. Do not reset unless you’ve backed up settings.
Tip: Firmware updates can resolve sensor misreads and compatibility issues. - 7
Consult documentation or support
When unresolved, reference the GX420t user guide for error codes and reach out to Zebra support or a qualified technician.
Tip: Prepare serial number and firmware version before contacting support.
Diagnosis: Printer shows blinking red light
Possible Causes
- highJam or misfeed in media path
- highDoor/cover not fully closed
- mediumRibbon misalignment or missing ribbon
- lowMedia out or incorrect media type
Fixes
- easyPower off, open covers, remove jam, reseat media, and re-feed
- easyClose all covers firmly and run a self-test
- easyVerify ribbon installation and media alignment; reseat ribbon if needed
- mediumUpdate firmware or reset to factory defaults if advised by the manual
Quick Answers
What does a blinking red light mean on the GX420t?
A blinking red light typically signals a jam, door/cover not closed, or a ribbon/media misfeed. It indicates the printer cannot safely proceed until the issue is resolved. Consult the error code if shown and perform the recommended checks.
A blinking red light usually means there's a jam or misfeed. Check the doors and reseat the ribbon, then run a self-test.
How do I perform a GX420t self-test?
Power off the printer, hold the feed button, and power it on to initiate a self-test. The test prints a status page with potential error codes to guide the next steps.
Turn off the printer, hold feed while powering on, and read the test page for codes.
What if the red light stays after fixes?
If the red light persists after jams and door checks, verify media and ribbon compatibility, update firmware if available, and consult the manual's error map. If unresolved, contact support.
If it still blinks after fixes, check the media and ribbon compatibility and seek support.
Can firmware updates fix blinking red light issues?
Yes, firmware updates can resolve sensor misreads and compatibility problems that cause red-light alerts. Always follow Zebra's official update procedures.
Firmware updates can fix some red-light issues; follow the official steps to update.
When should I call for professional help?
If the red light remains after all recommended steps or if you notice hardware faults (strange noises, loose parts), seek professional service. Do not attempt risky hardware repairs.
If it still blinks after trying steps, contact a technician.
Watch Video
Main Points
- Follow a logical flow from simple checks to complex fixes
- Self-tests reveal error codes that guide repairs
- Use genuine consumables and verify media alignment
- Firmware updates can resolve sensor-related red lights
- Escalate to professional help if the issue remains
