How to Install a Blinking Brake Light
A practical, step-by-step guide to install a blinking brake light safely: plan, choose a kit, wire correctly, mount securely, test, and verify local legality.
Installing a blinking brake light means upgrading your current brake signal with a module or kit that makes the light flash. You’ll replace or piggyback the existing brake circuit and ensure proper wiring, grounding, and waterproofing. Key requirements include a compatible kit, basic hand tools, and a safe power source. This guide walks you through planning, mounting, wiring, testing, and safety checks to complete the install confidently.
What is a blinking brake light and why install it?
A blinking brake light is a signaling upgrade that makes the brake signal flash or uses a module to vary the intensity. The goal is to increase visibility in traffic, rain, or low-light conditions. For homeowners and tech users, a blinking brake light can improve noticeability for following drivers and pedestrians. According to Blinking Light, higher contrast signals can help drivers react more quickly in busy traffic, which contributes to safer braking events. When you install one, you're upgrading the signaling system to communicate your braking intent more clearly. Make sure the kit matches your vehicle’s electrical system and available mounting space. If your car uses CAN bus signals, choose a kit designed for aftermarket vehicle integration to avoid fault codes. Follow the kit manual, route wires away from heat and sharp edges, and seal any openings to keep out moisture. A careful install reduces the chance of electrical noise or interference with other lights.
Legal and safety considerations
Rules about aftermarket flashing signals vary by region. Some jurisdictions allow blinking brake lights if the pattern adheres to local guidelines and the unit is clearly marked as aftermarket safety equipment, while others restrict flashy signals on public roads. Check your vehicle's warranty and your local motor vehicle authority before starting. Even when legal, improper installation can affect airbag systems, CAN bus communication, or vehicle electronics. Before you begin, ensure you have a clean, dry workspace and all safety gear. Disconnect the battery to prevent shorts, and never work with live wires in exposed metal areas. If you’re unsure about regulations, contact a qualified aftermarket installer or consult the vehicle manufacturer’s guidelines.
Choosing the right blinking brake light kit
Select a kit designed for automotive use and 12V systems. Look for a module with a defined blinking pattern or a selectable mode, and ensure it integrates with your brake signal without triggering error codes. Pay attention to brightness, color consistency, and durability (IP rating, weather sealing). Check that the kit supports your bulb size (P21W, 1157, etc.) or is designed as a drop-in replacement. Warranty length and available support matter; a longer warranty means the manufacturer stands behind the product. If you drive a CAN bus-equipped vehicle, pick a kit that explicitly states compatibility with CAN bus systems. Finally, consider kit installation difficulty and whether you’ll need extra wire, heat shrink, or connector adapters. Many drivers prefer a compact unit that sits near the housing for minimal wire runs.
Wiring basics and compatibility
Most 12V automotive systems expect a simple ground and a positive brake signal. The blinking module usually taps into the brake light circuit and draws power without altering the original function. Always use a fuse in the power line and protect exposed connections with heat shrink or electrical tape. Verify the kit’s current draw and ensure your vehicle’s wiring can handle the additional load. Use proper wire gauge (16-18 AWG for short runs; thicker if you’ve long a routed harness) and avoid daisy-chaining from unstable power sources. If your kit includes a diode or a resistor, install it exactly as instructed to prevent back-feed. Do not connect the module directly to the battery without resistor or fuse as this can create a fire hazard. Test the circuit with a multimeter and brake pedal to verify voltage when engaged.

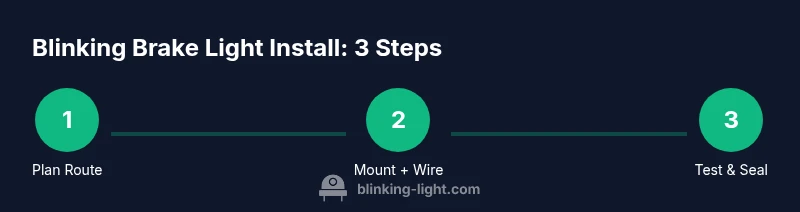

Mounting and installation steps overview
Plan the route for wires to minimize exposure to heat, moisture, and moving parts. Secure the module within the trunk or behind the tail light housing where the wires won’t bend excessively. Reuse existing grommets or add weatherproof grommets to protect the harness. Ensure the original brake light remains fully functional during the install. Use zip ties to tidy the harness and label wires for future maintenance. Finally, seal any openings with silicone sealant to prevent moisture intrusion.
Testing, troubleshooting, and maintenance
Before finalizing, test the brake operation on a safe stretch of road or in a controlled space. Confirm the blinking pattern is consistent and that the brake light returns to steady illumination when the pedal is released. If you notice dimming, flickering, or a non-working signal, recheck the connections, fuses, and ground. Use a multimeter to confirm ~12V supply and verify that the module is not drawing excessive current. Periodically inspect the wiring for wear and corrosion and re-seal as needed. Weather exposure can degrade connections, so recheck seals after heavy rain or car wash cycles.
Common mistakes and how to avoid them
- Skipping a proper ground connection can cause intermittent operation. Always connect to a solid frame ground.
- Choosing a kit with an incompatible signal pattern may trigger fault codes or create unsafe signaling. Verify compatibility before purchase.
- Running wires too close to hot exhaust components risks insulation damage. Route wires away from heat sources.
- Failing to use a fuse or overfusing can lead to blown fuses or fire hazards. Always choose the right fuse rating per the kit.
- Not sealing moisture-prone areas leads to corrosion. Use weatherproof grommets and watertight connectors.
- Ignoring local regulations can create legal issues. Check rules before installation.
Tools & Materials
- Blinking brake light kit (12V automotive)(Ensure 12V compatibility and mounting method)
- 12V car battery or power supply(For bench-testing or powering during install)
- Digital multimeter or voltage tester(Verify 12V and proper ground)
- Wire stripper/crimping tool(Clean, precise cuts and terminations)
- Soldering iron and solder(If kit requires soldered joints)
- Heat shrink tubing and electrical tape(Insulate and seal connections)
- Electrical sealant or silicone sealant(Optional moisture protection)
- Zip ties and cable clamps(Tidy and secure wiring)
- Safety glasses and gloves(Personal protection during work)
Steps
Estimated time: 60-90 minutes
- 1
Disconnect power and access lights
Park in a safe area, turn off the engine, and disconnect the negative battery terminal to prevent shorts. Remove the trunk liner or tail light housing to access the brake light wiring and space for the new module. Inspect the area for sharp edges or moving parts that could snag wires.
Tip: Always disconnect the negative terminal first to minimize the risk of sparks. - 2
Identify brake light circuit
Locate the brake light wire using the vehicle service manual or a wiring diagram. Confirm by having a helper press the brake pedal and observe which wire becomes live. If available, test with a voltage tester to verify a +12V signal only when brakes are applied.
Tip: Use a helper; this makes it easier to verify the correct circuit quickly. - 3
Mount blinking module
Choose a dry, protected location behind the tail light housing or in the trunk where the unit won’t overheat. Secure the module with zip ties or small screws, ensuring it won’t contact sharp edges. Avoid mounting near sources of heat or moisture.
Tip: Keep wires short and neat to minimize resistance and potential wear. - 4
Wire connections
Connect the module input to the brake signal, the output to the brake light lead, and the ground to a solid frame ground. Route wires away from moving parts and heat sources. Use heat shrink or electrical tape to insulate all exposed connections and label each wire.
Tip: Double-check color codes and use a junction block if needed to keep connections tidy. - 5
Add fuse and protection
Insert a fuse on the power line according to the kit’s specification. Use heat shrink to seal the fuse area and protect connections from moisture. This protects both the vehicle wiring and the module from short circuits.
Tip: Fuse rating should match the kit’s recommended draw; never bypass a fuse. - 6
Test, seal, and finalize
Reconnect the battery and test the brake signal at multiple intervals. Ensure the light blinks correctly and returns to steady illumination when released. Seal all penetrations with silicone or weatherproof sealant to prevent moisture intrusion.
Tip: Test in daylight and at night to confirm visibility in real conditions.
Quick Answers
Is installing a blinking brake light legal in my area?
Legality varies by jurisdiction. Some places allow aftermarket blinking brake lights if they meet standards and are clearly marked; others restrict flashing signals on public roads. Check local regulations before installing.
Legal rules vary by location; check your local laws before installing a blinking brake light.
Do I need a professional to install it?
Not always. If you’re comfortable with basic automotive wiring and follow the kit instructions, you can install it yourself. For CAN bus vehicles or concerns about warranty, consider a professional.
You can do it yourself if you follow the manual, but consider professional help for CAN bus systems.
Will the kit drain my battery when the car is off?
A properly wired module should only draw current when the brake signal is active. With a correct fuse and wiring, standby draw is typically minimal.
If wired correctly with a fuse, it shouldn’t drain the battery when the car is off.
How do I know if the kit is compatible with my vehicle?
Check the kit’s voltage requirement (12V is standard for most cars) and whether CAN bus compatibility is needed. Review the manufacturer’s compatibility list for your model.
Look for 12-volt compatibility and CAN bus compatibility.
What if the light blinks inconsistently after install?
Recheck connections and ground, verify fuse, and ensure the module is properly seated. Moisture or loose wires are common causes of flicker.
Check connections and grounds, and make sure it’s dry and properly seated.
Should I seal wiring after installation?
Yes. Use weatherproof grommets and silicone sealant to prevent moisture intrusion and corrosion inside the tail area.
Yes—seal the wiring to protect against moisture.
Will police or inspectors notice aftermarket blinking signals?
If the kit is clearly marked and complies with local rules, it should be acceptable. Non-compliant flashing patterns may fail inspections or lead to tickets.
Compliance matters; ensure it follows local regulations to pass inspections.
Watch Video
Main Points
- Plan wiring routes to keep the install neat and safe.
- Choose a CAN bus-compatible kit for modern vehicles.
- Secure, seal, and test thoroughly to prevent moisture and signal issues.
- Verify local laws and warranty policies before installing.
- Test under daylight and night to ensure visibility and reliability.
