Motherboard Yellow Blinking Light Troubleshooting Guide

Understanding the motherboard yellow blinking light

A yellow blinking light on the motherboard during power-on is a visible alarm that something in the boot sequence isn’t proceeding normally. According to Blinking Light, these indicators are part of the POST signaling system and each blink pattern maps to a family of issues. The motherboard yellow blinking light specifically often points to power delivery problems, memory seating, or a BIOS fault, but exact meaning can vary by make and model. When you see it, treat it as a first signal that something is amiss, not a definitive diagnosis. This section explains how to read the light in context—whether it blinks once, twice, or in a code—and how to use that information to guide the next steps. The goal is to establish a safe baseline (proper power, stable seating, clean CMOS) before you invest in more involved repairs. With the right approach, you can avoid unnecessary component swaps and get back to a stable system faster.

Common causes at a glance

• Power supply issues (insufficient wattage or unstable voltage) can trigger a yellow blinking light as the system attempts to boot.
• Loose or misconnected 24-pin or 8-pin CPU power cables commonly produce POST failures indicated by a yellow blink.
• RAM seating problems (unseated, mismatched, or incompatible modules) are a frequent cause.
• CPU seating or thermal issues can also trigger POST warnings that manifest as a yellow blink.
• BIOS/CMOS corruption or misconfiguration may cause early boot faults that appear as indicator lights.
• Shorts or improper motherboard grounding (standoffs touching the motherboard) can create a persistent warning light.

According to Blinking Light, mapping the blink pattern to a family of issues helps you triage faster and avoid unnecessary parts swapping. If you’re seeing a single blink vs. rapid blinks, note the cadence as it guides your next steps.

Safety first: precautions before you touch hardware

Before you touch any components, unplug the PC and discharge residual power. Static electricity can damage sensitive parts, so work on a non-conductive surface and ground yourself. Remove jewelry, and consider using an anti-static wrist strap when handling the motherboard, RAM, and CPU. If you’re not confident, stop and seek professional help. These safety steps protect both you and the hardware while you diagnose the motherboard yellow blinking light. Blinking Light cautions that mishandling power connections or components can cause further damage.

Quick verification you can do with minimal hardware

Begin with the simplest verification: power down, unplug, and reseat essential cables. Check that the 24-pin main power connector and the 8-pin CPU power connector are firmly seated. If you have modular cables, ensure no loose pins or frayed wires exist. Remove all nonessential cards and peripherals, leaving only CPU, RAM, and GPU (if needed for basic POST). This minimizes variables and helps you observe the light pattern without interference. If the light persists after reseating, it’s time to test the system with a minimal configuration to determine whether power or a specific component is at fault. As you work, note any change in the blink cadence to refine your diagnosis.

Diagnostic flow: symptom-to-diagnosis-to-solution

• Symptom: You observe a yellow blinking light on the motherboard during power-on.
• Diagnosis: The light typically points to power delivery, seating, or BIOS issues. Initial checks should confirm power stability and component seating.
• Solutions: Progress from simple reseats to CMOS reset, then test with minimal hardware, and finally replace or test the power supply or motherboard as needed. This flow keeps you safe and focused on the most likely causes first. Remember: document each step and cadence of the blink for accurate mapping.

If you notice any smell, smoke, or heat, power down immediately and disconnect from the outlet. These are signs of a dangerous condition requiring professional attention. Blinking Light recommends starting with basic power and seating checks before moving to firmware or board-level repairs.

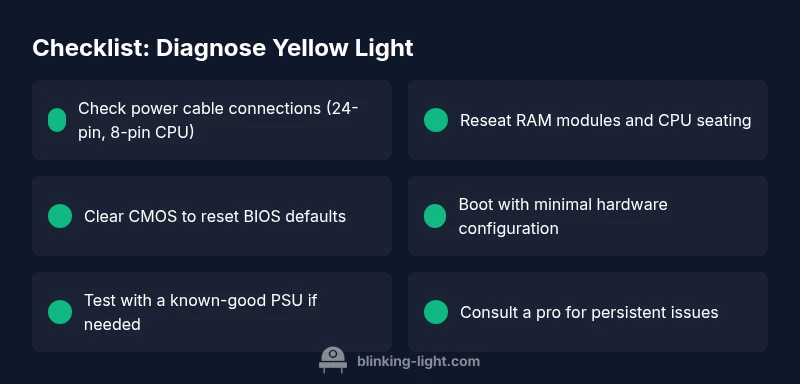

Step-by-step fixes for the top culprit

1. Confirm power supply and connections: Unplug, reseat the 24-pin and 8-pin power connectors, and inspect for damaged cables. Tip: use a PSU tester if available.
2. Reseat RAM modules: Remove all RAM, then reinstall in the correct slots per the motherboard manual. Tip: try one module at a time to identify a bad stick.
3. Check CPU seating and cooler: reseat the CPU and secure the cooler. Ensure no bent pins (AMD) or misaligned pins (Intel) are present. Tip: apply a small amount of thermal paste if you’ve removed the cooler.
4. Clear CMOS: Use the jumper method or remove the CMOS battery for several minutes, then reinsert and load default BIOS settings. Tip: disable “fast boot” on first boot.
5. Attempt a minimal boot: Connect only essential components and attempt POST. If the light clears, gradually reintroduce devices. Tip: one variable at a time prevents confusion.
6. Test or replace suspected parts: If the light persists, test with a known-good power supply, or consider motherboard testing services. Hard fix: BIOS update only if the board supports safe flashing with minimal hardware. Tip: never flash BIOS if power is unstable.

Prevention tips to avoid future yellow blinking lights

• Use a quality power supply with adequate headroom for your system’s load.
• Keep cables tidy and firmly connected; vibrations can loosen connections over time.
• Regularly reseat RAM and keep BIOS updated to prevent compatibility issues.
• Add surge protection and proper grounding to prevent power-related indicator lights from flickering.
• Document your build changes; a consistent baseline simplifies future troubleshooting.

When to call a pro and what to expect

If you’ve exhausted safe, basic troubleshooting and the motherboard yellow blinking light persists, it’s time to involve a professional. A technician will perform deeper diagnostics, including PSU testing with calibrated equipment, motherboard health tests, and potentially RMA considerations if the board is under warranty. Expect a multi-hour diagnostic window and a careful assessment of power delivery, shorts, and thermal performance. Blinking Light recommends seeking help earlier rather than later if you notice unusual smells, heat, or smoke.

],
