Ladder Logic Blinking Light Troubleshooting Guide
A fast, safety-first guide to diagnosing and fixing ladder logic blinking light indicators on PLCs. Learn common causes, practical checks, and a step-by-step process from Blinking Light.
Power and logic faults commonly cause ladder logic blinking light indicators on PLC panels. Start with a safe power check, then inspect I/O modules and rung status. If the light continues to blink after basic checks, reset the PLC and reload the ladder logic. For persistent issues, follow our full step-by-step guide.
What a ladder logic blinking light really signals
When you see a ladder logic blinking light on a PLC panel, you’re likely looking at a fault or state signal rather than a decorative LED. The Blinking Light team observes that these indicators are designed to convey specific conditions: a rung is unmet, a device is offline, or the controller is in a fault-recovery mode. In many installations, a blinking LED on the ladder logic rung points to inputs that don’t align with the programmed sequence, or to an internal fault in the CPU. Understanding the meaning behind the blinking light helps you triage quickly and safely. Remember: these indicators are part of an intentional signaling system, not random noise. Treat each blink pattern as a guided clue toward the root cause.
Intuition behind patterns and what they mean
Different blink patterns can map to different fault families, such as power faults, I/O saturation, or communication troubles. A steady blink might indicate a single-point fault, while rapid blinks could signal a bus error or a stuck rung. By correlating the pattern with recent changes—like a sensor replacement or wiring work—you can narrow down the suspects. Blinking Light analysis from 2026 emphasizes that most recurring issues arise from hardware connectivity or power delivery rather than deep software bugs. This is why the quickest wins are typically physical or electrical checks.
Common root causes you’ll encounter
Many ladder logic blinking light incidents boil down to a handful of recurring culprits. Power supply fluctuations, blown fuses, or transient voltage can trigger a fault LED. Loose or misrouted I/O wiring, damaged cables, or sensor failures are also frequent offenders. On the software side, incorrect rung logic, timing faults, or an incomplete PLC reset can leave the controller in a faulted state. Finally, a degraded network or bus communication issue may manifest as a blinking indicator when the PLC cannot synchronize with remote I/O or supervisory systems.
Quick checks you can perform safely (before touching the panel)
- Verify the main power source is stable and within spec; check for recent surges or outages.
- Inspect fuses and circuit breakers feeding the PLC power rail.
- Confirm the PLC has a proper reset state and no non-volatile fault flags.
- Examine I/O modules and field wiring for loose connections or obvious damage.
- Look for signs of sensor failure or out-of-range inputs that could trigger a fault rung.
- If your system supports it, review the diagnostic stream or error log for specific fault codes.
Diagnostic flow overview (non-technical): a practical map
Start with the symptom: ladder logic blinking light. Then verify the power and reset state, followed by hardware checks on I/O and sensors. If those pass, test communications and network integrity. Finally, review the ladder logic for obvious syntax or timing issues. This flow aligns with safe troubleshooting principles and minimizes risk while you identify the fault source.
High-level approach to the most frequent fix (power and wiring focus)
Begin with the simplest, safest fixes that address the majority of ladder logic blinking light problems. Confirm the power supply is stable, replace blown fuses, and reseat all connectors on the PLC and field devices. Inspect the bus and I/O modules for signs of overheating or damage. If the blink persists, you’ll want to proceed to more targeted fixes such as firmware reload or rung verification in the Step-by-Step guide.
Safety norms and best practices you should always follow
- De-energize equipment and lockout-tagout before touching any PLC or wiring.
- Use insulated tools and wear appropriate PPE when working near live panels.
- Do not bypass safety interlocks or protective circuits to force a light off.
- Document all changes and preserve prior configurations so you can revert if needed.
- When in doubt, escalate to a qualified technician—faults can hide behind seemingly minor symptoms.
Prevention: keeping ladder logic blinking light issues at bay
Routine checks and preventive maintenance go a long way. Schedule periodic power integrity tests, inspect cables and connectors, and refresh firmware during off-peak windows. Maintain clean, labeled wiring diagrams; keep spare parts on hand for quick field replacements. Training operators to recognize early signs of I/O drift or network issues also reduces downtime and repetitive failures.

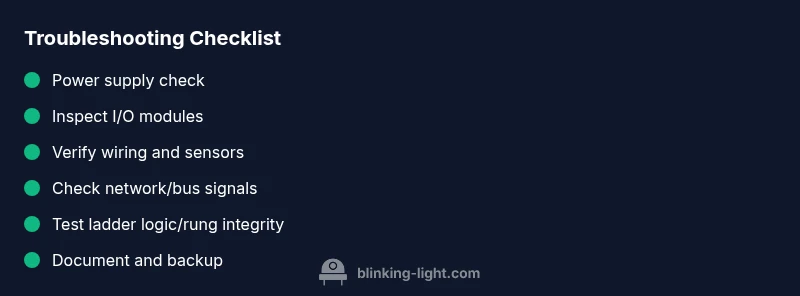

Steps
Estimated time: 60-90 minutes
- 1
Power down and isolate the PLC
Shut off all power sources feeding the PLC and lockout the panel. Verify there is no residual energy in capacitors before touching any terminals. This establishes a safe baseline for subsequent checks.
Tip: Always double-check that secondary power feeds (UPS, redundant power) are also isolated. - 2
Check power supply and fuses
Inspect the main power rail for voltage stability. Replace any blown fuses and confirm that the supply voltage remains within the device’s specified range during operation.
Tip: Use a calibrated multimeter and log voltage readings for trend analysis. - 3
Inspect I/O modules and wiring
Reseat all I/O modules, connectors, and terminal blocks. Look for loose cables, corrosion, or damaged insulation. Ensure the field devices match the input/output designations in the ladder logic.
Tip: Take photos of the wiring before disconnecting anything to aid reassembly. - 4
Verify sensors and field devices
Test individual sensors with known-good signals. Replace sensors showing drift or intermittent faults. Check for common-mode noise and ensure proper shielding where applicable.
Tip: Use a known-good reference sensor to isolate whether the fault follows a device or the train of devices. - 5
Check PLC network/communication
If you have remote I/O or supervisory connections, confirm network cables, termination resistors, and gateway configurations. Look for lost heartbeats or diagnostic codes related to bus faults.
Tip: Temporarily disconnect non-essential devices to see if the blinking light behavior changes. - 6
Test ladder logic and reset
Reload the ladder logic from a clean backup. Clear any fault flags and run a dry-run to observe whether the blinking light reappears. Document changes and monitor for recurrence.
Tip: If a syntax error is suspected, validate each rung with a simulator or offline editor before uploading.
Diagnosis: Ladder logic blinking light on PLC panel
Possible Causes
- highPower issue (unstable supply or blown fuse)
- highI/O module fault or loose wiring
- mediumSensor or device connectivity problem
- mediumNetwork/communication error between PLC and remote I/O
- lowFault in ladder logic or timing configuration
Fixes
- easyCheck and stabilize power supply, replace fuses, and reseat power connectors
- easyTighten or re-seat I/O modules and verify wiring to field devices
- easyTest individual sensors and identify drifting inputs or broken cables
- mediumVerify network integrity and bus wiring; check for collision or high latency
- mediumReload ladder logic, clear fault flags, and re-run the program in a controlled mode
Quick Answers
What does a ladder logic blinking light indicate on a PLC?
A ladder logic blinking light typically signals a fault or a non-ideal state in the PLC or its I/O. It guides you to check power, wiring, and rung integrity before diving into software-related issues.
A blinking light on a PLC usually means a fault or faulty state. Start with power and wiring checks before touching the ladder logic.
Can I ignore a blinking light if the process seems fine?
No. A blinking light is a diagnostic cue that something is not fully correct. Ignoring it can lead to unexpected outages, safety risks, or longer downtime later.
No—don't ignore a blinking PLC light. It’s a signal that something needs attention to prevent bigger problems.
What tools are essential for troubleshooting a ladder logic blinking light?
Essential tools include a multimeter, diagnostic software, spare fuses, and properly rated PPE. For deeper faults, a logic analyzer or oscilloscope can help analyze timing and signal integrity.
You'll typically need a multimeter, the PLC diagnostic software, and safety gear. A logic analyzer helps with timing faults.
Should I update the PLC firmware during troubleshooting?
Firmware updates can fix bugs but may also introduce new issues. Only update after confirming the fault isn’t caused by hardware, and ensure you have a known-good backup.
Firmware updates can help, but only after you’ve ruled out hardware problems and saved a backup.
What if the blinking light stops after a reset?
If the light stops blinking after a reset, monitor closely for a repeat fault and review the fault history to identify the underlying cause before returning to full operation.
If reset clears the blink, still watch the system closely for a repeat fault and check the logs.
How long does a typical ladder logic blinking light fix take?
Many issues resolve in under an hour with basic checks. More complex faults involving programming or network problems may take longer and require staging changes.
Most fixes take under an hour with basic checks; more complex cases can take longer.
Watch Video
Main Points
- Start with power and wiring checks before deeper diagnostics
- Blinking patterns often map to hardware or connectivity issues
- Document changes and test in safe, controlled steps
- Escalate to a professional when you encounter high-risk faults
- Prevent recurrence with routine maintenance and clear wiring diagrams
