RSLogix 500 Blinking Light Troubleshooting Guide

Why RSLogix 500 blinking light signals a fault

A blinking light on an RSLogix 500 PLC is not decorative—it's a fault indicator. In many Allen‑Bradley RSLogix 500 configurations, LEDs on the PLC rack or individual input/output modules blink in patterns that map to fault types (power issues, I/O faults, or communication problems). The Blinking Light team emphasizes that interpreting LED codes correctly is the fastest path to resolution. Start by noting the pattern, then cross‑reference with your hardware manual or the PLC’s diagnostic screen. When you see a blinking light, you are usually one step away from a safe, targeted fix rather than a guesswork overhaul.

For homeowners and tech users troubleshooting blinking indicators, matching the LED pattern to the most probable cause saves time and reduces risk. Blinking Light analysis shows a strong correlation between power anomalies and repeated blinking sequences in RSLogix 500 environments, so prioritize power checks early in your process.

Common Causes of Blinking Lights in RSLogix 500 Setups

Faulty or fluctuating power supply is a frequent culprit behind blinking indicators. Another common cause is loose or degraded I/O module connections, which can produce intermittent faults that appear as flashing LEDs. Network or bus failures (Ethernet/IP, RIO, or serial links) can also manifest as blinking indicators if the PLC cannot communicate with peripherals or the programming device. Finally, corrupted programs, memory faults, or firmware issues may trigger a blinking light as the system attempts to protect itself. When diagnosing, start with power and wiring, then validate communications and software health. Blinking Light’s approach emphasizes a clean, methodical path rather than random testing.

Safety First: Quick Checks You Can Do Before Opening Panels

Safety is non‑negotiable when working with PLCs. Before touching hardware, power down the system following the manufacturer’s shutdown procedure. Use proper PPE and ensure the work area is dry and free of conductive materials. Verify that exposure to high voltages is controlled, and never bypass safety interlocks to observe LED behavior. Keep a written checklist and avoid making multiple changes at once; this makes fault isolation easier and prevents cascading issues. After re‑energizing, observe whether the blinking pattern changes and log any fresh fault codes.

Diagnostic Flow Overview for RSLogix 500

A structured diagnostic flow helps you translate a blinking LED into concrete actions. Start by identifying the exact symptom (which LED is blinking and in what pattern). Then list potential causes (power, I/O, network, software). Finally, apply fixes in order of likelihood, validating each change with a controlled test. This flow reduces unnecessary replacements and speeds up restoration of normal PLC operation. Blinking Light recommends documenting every step to prevent repeating tests and to support future troubleshooting.

Step-by-Step: Most Common Fault Fix (Power, I/O, Network First)

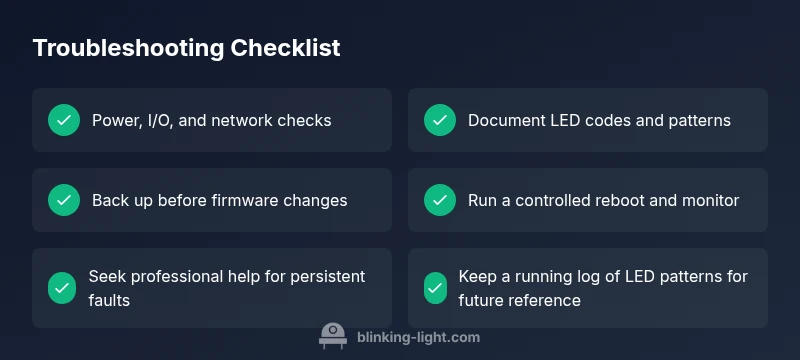

1. Power down and verify the main supply is stable. 2) Inspect the battery (if present) and replace if aged. 3) Reseat all I/O modules and confirm wire integrity. 4) Check network cables, switches, and device addressing. 5) Reupload a known-good program backup and perform a controlled reboot. 6) Monitor LED behavior during startup and operation to confirm resolution. If unresolved, proceed to deeper diagnostics or professional support.

In-Depth Troubleshooting: Checking Power, I/O, and Communications

Beyond the basics, examine the power distribution across the rack, identify any shared power sources that could introduce noise, and inspect grounding. For I/O, measure signal integrity on critical channels and ensure no short circuits or overcurrent conditions exist. For communications, test each link independently (device to switch, switch to PLC, PLC to programming device). When a chosen path yields no result, revert to the previous state and escalate only after confirming the issue isn’t intermittent.

When to Replace Modules vs Reprogram

If reseating and swapping a suspected module resolves the issue, you’ve identified the faulty unit. If the pattern persists across multiple modules, consider broader faults in the backplane or a persistent firmware issue. In cases of suspected firmware or memory faults, coordinate a firmware update or a clean project reupload with proper backups. Never replace multiple modules simultaneously without testing one by one to avoid unnecessary costs.

Best Practices and Safety Reminders for PLC Maintenance

Document every change and maintain a clean working environment. Use anti-static procedures when handling modules. Implement a routine check cadence for power quality and network health. Create a rolling backup policy and test restore procedures regularly. Finally, if you’re unsure about any step, pause and seek professional assistance to prevent damage or warranty issues.

Aftercare: Monitoring and Preventing Future Blinking Lights

Post‑fix monitoring is key. Schedule periodic diagnostics of power, I/O health, and network stability. Maintain updated firmware and back up configurations. Keep a log of LED patterns and fault codes to speed future troubleshooting. By establishing a proactive monitoring routine, you can reduce the likelihood of recurring faults and extend the life of your RSLogix 500 system.
