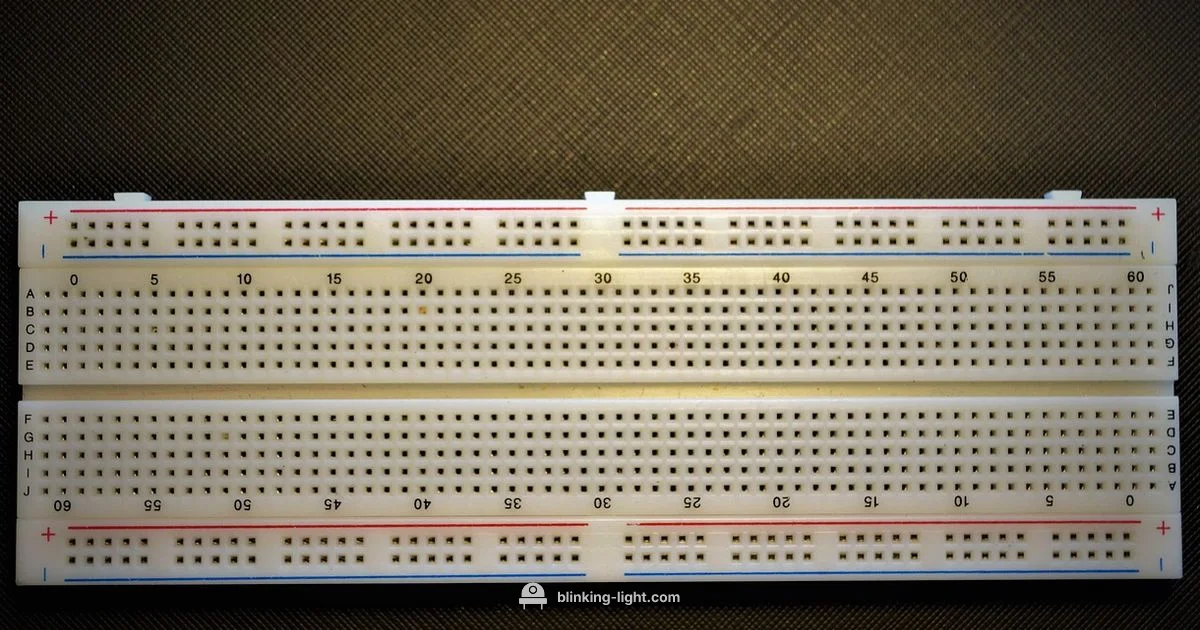

Blinking Light Breadboard: A Practical How-To Guide
A comprehensive step-by-step guide to building and debugging a blinking light breadboard circuit. Learn when to use a 555 timer vs a microcontroller, how to wire LEDs safely, how to test timing, and how to extend the project for more complex LED patterns.
Goal: Build a blinking light breadboard circuit using an LED, resistor, and timing element (555 timer or microcontroller). You’ll learn wiring, test patterns, and troubleshooting. Before you start, gather a breadboard, LEDs, resistors, a power source, a timer IC or microcontroller, and jumper wires. This guide also covers safety basics and measurement tips to verify operation.
Introduction to the blinking light breadboard
A blinking light breadboard circuit is one of the simplest yet most powerful ways to learn timing, current limiting, and circuit layout. In this guide, we explore how to set up a blinking light breadboard using LEDs, resistors, and a timing element. According to Blinking Light, a clear explanation of blinking indicators helps homeowners and hobbyists troubleshoot quickly and safely. This article stays focused on practical, hands-on steps you can follow today, with two main pathways: a timer-based approach and a microcontroller-based approach. By the end, you’ll understand how to choose components, avoid common mistakes, and verify operation with basic measurements.
Core components and why they matter
Here we cover the essential parts for a blinking LED on a breadboard. The LED is the visible indicator, so we need correct polarity and current-limiting resistance to prevent damage. The resistor value influences brightness and blink speed; typical values range from hundreds of ohms to a few kilo-ohms depending on supply voltage. A timing device—either a 555 timer in astable configuration or a small microcontroller—generates the blink pattern. Keep in mind power supply quality and stable ground references to avoid unpredictable behavior. The breadboard eases prototyping but requires careful layout to minimize stray wiring and crosstalk. The arrangement of components on the breadboard's rows matters: keep LEDs near the power rail you intend to use and avoid overloading a single row.
Timer-based blinking with a 555 timer
A 555 timer in astable mode continuously generates a square wave that drives the LED through a current-limiting resistor. You wire the timer’s output to the LED or to a transistor that sinks current, depending on LED color and brightness. The two resistors and the timing capacitor set the blink rate and duty cycle. On a breadboard, ensure clean connections and short lead routing to minimize oscillation or stray capacitance. Be mindful of the supply voltage limitations of the 555 family and verify ground references are solid before power-up.
Microcontroller-based blinking using Arduino or compatible microcontroller

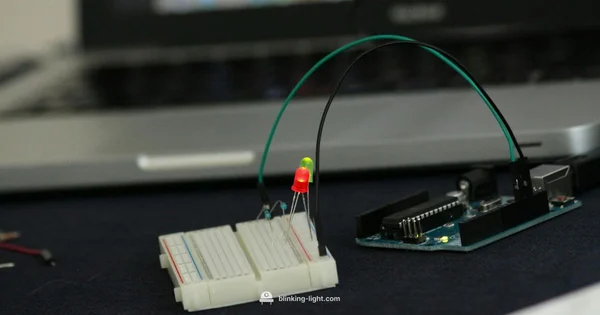

Using a microcontroller, you can achieve complex blink patterns. Wire the LED to a digital output pin, share a common ground with the microcontroller, and upload a simple sketch that toggles the pin with a defined delay. The advantage is precise timing, expandability, and the ability to add multiple LEDs with different patterns. When using USB-powered boards, ensure the board’s power budget and the breadboard’s rails are within safe limits; monitor overheating and current draw as you scale up the project.
Wiring best practices and breadboard etiquette
Plan your layout to minimize cross-talk: separate power rails from signal lines, keep leads short, and group components by function. Use color-coded jump wires and label each row you modify. A clean, repeatable layout makes troubleshooting easier and helps you reuse sections for future projects. Double-check polarity of LEDs and ensure resistors are in series, not parallel, with the LED to avoid unpredictable brightness.
Safety, power, and measurement considerations
Power safety matters, even at low voltages. Use a regulated 5V source if possible, avoid touching live connections, and disconnect power before reconfiguring. A multimeter can confirm voltage across the LED and measure the supply stability. If you observe flicker that’s not intentional, measure timing signals with an oscilloscope or logic probe to identify mis-wired components or noise.
Testing, debugging, and reading LED patterns
Systematic testing saves time. Start by confirming the LED lights dimly when power is applied, then check the blink frequency by ear and visually. If the LED never blinks, recheck LED polarity, resistor value, and ensure the timer or microcontroller is actually supplying a signal. Keep a log of changes and test each modification incrementally to isolate the fault quickly.
Extending the project: variations and next steps
Once you have a basic blink, explore variations such as PWM dimming, multiple LEDs with different phases, or serial-controlled patterns. You can swap LEDs, add a speaker for audio cues, or implement color-changing patterns with RGB LEDs. Document your circuit with a schematic or a photo log so you can reproduce or expand the project later.
Tools & Materials
- Breadboard (full-size or mini)(Ensure power rails are accessible; 830 tie-point recommended)
- LEDs (assorted colors)(At least 2 for multiple patterns; check polarity)
- Current-limiting resistors (hundreds of ohms to a few kilo-ohms)(Choose values to control brightness safely)
- Jumper wires (male-to-male, assorted lengths)(Keep leads short; color-code for clarity)
- Power source (5V DC regulated)(Battery pack or USB-powered supply)
- Timer/microcontroller timing option(Choose NE555 timer or a compatible microcontroller (e.g., Arduino); you don’t need both)
- Multimeter (optional)(Useful for confirming voltage and current; not required for basic operation)
Steps
Estimated time: 60-90 minutes
- 1
Plan your layout
Decide which LED(s) will blink and which timing path you’ll use (555 timer or MCU). Sketch a quick schematic on paper to keep wiring organized. This upfront planning saves time during assembly and makes debugging easier.
Tip: Label each section of the breadboard with tape or markers to avoid cross-wiring. - 2
Place the LED and resistor
Insert the LED on the breadboard with correct polarity (anode to V+ side, cathode to ground through a resistor). Place the resistor in series so current is limited. Verify the LED brightness is appropriate before proceeding.
Tip: Double-check the LED orientation under a bright light; misoriented LEDs are a common, harmless error. - 3
Connect the timing element
If using a 555 timer, wire it in astable configuration and connect its output to the LED path. If using a microcontroller, wire the chosen output pin to the LED (through the resistor). Ensure a solid ground reference.
Tip: Keep timing components away from long signal lines to minimize noise. - 4
Wire the power rails
Connect the breadboard’s power rails to a stable 5V supply and ground. Ensure all components share a common ground to avoid floating references that cause erratic blinking.
Tip: Power off while making major wiring changes. - 5
Connect LED to output
Route the timer/microcontroller output to the LED (via the resistor). Confirm that only one LED is driven per output path to avoid overloading the source.
Tip: If you see dim or no light, temporarily disconnect other LEDs to isolate the issue. - 6
Power up and initial test
Apply power and observe the LED. If it blinks, note the frequency and duty cycle and compare to your planned values. If there’s no blink, recheck polarity, connections, and the timing circuit.
Tip: Use a finger shield or shielded holder when handling powered boards to avoid accidental shorts. - 7
Adjust blink rate
Tweak the resistor and capacitor values (for a 555) or modify the delay in the code (for an MCU) to reach your desired blink pattern. Make small changes and test incrementally.
Tip: Document the successful values for future reference. - 8
Document and label
Take clear photos or draw a schematic of the final layout. Label wires and components so you can reproduce or extend the circuit later without starting from scratch.
Tip: Keep a running parts list and notes about what worked best.
Quick Answers
What is a blinking light breadboard?
A blinking light breadboard is a circuit on a solderless breadboard that makes an LED or LEDs blink using a timing component such as a 555 timer or a microcontroller. It’s a common teaching tool for timing, current limiting, and basic electronics.
A blinking light breadboard uses timing components to make LEDs blink, which helps you learn timing and wiring.
Can I use a resistor to adjust blink rate?
Yes. In timer-based designs, resistor values (with the timing capacitor) define blink frequency. In MCU designs, the delay or PWM settings control rate. Always use a current-limiting resistor with LEDs.
Resistors and timing components control blink speed; always limit current for LED safety.
Why won’t my LED blink?
Common causes include incorrect polarity, loose connections, missing ground, or an unpowered timing device. Recheck the wiring, confirm the LED direction, and verify that the timing element is correctly configured.
Check polarity, connections, ground, and that the timer or MCU is powered and configured.
Is it safe to power from USB?
Yes, USB provides a stable 5V supply for small breadboard projects. Monitor current draw, especially with multiple LEDs, to avoid overheating or tripping power limits.
USB power is generally safe for small projects; watch total current draw.
How can I blink multiple LEDs in different patterns?
Use additional outputs from a microcontroller or add a driver transistor for each LED. You can create separate timing channels and synchronize or offset patterns for visual interest.
Add more outputs or drivers to run several LEDs with distinct patterns.
Watch Video
Main Points
- Plan layouts before wiring to reduce troubleshooting time.
- Always include a current-limiting resistor with LEDs.
- Choose 555 timer or MCU path based on desired complexity.
- Test progressively and document changes for future projects.
- Maintain safe power practices and clean breadboard habits.
