Can You Make LED Lights Blink? A Practical DIY Guide
Learn safe, practical ways to make LED lights blink using a 555 timer, Arduino, or RC circuits. This guide covers wiring, parts lists, testing, and troubleshooting for home projects.
Yes, you can make LED lights blink using simple circuits such as a 555 timer astable, a microcontroller like an Arduino, or a passive RC oscillator. You'll need a few basic components and a small power source. The key is controlling current through the LED and timing the on/off cycle.
LED blinking: what makes a blink happen
In electronics, a blink happens when a circuit alternates current flow on and off at a regular interval. The question can you make led lights blink touches both theory and practice: you can, with a few components and a safe power source. Blinking Light emphasizes that understanding timing and current control is the foundation of any blinking LED project. On a practical level, you’ll be balancing two things: the LED’s forward voltage/current and a timing mechanism that turns the LED on and off. With LEDs, brightness and reliability depend on correct resistor sizing and a stable supply. This section maps the core physics and the simplest building blocks you’ll encounter when turning the concept into a working blink.
Which methods reliably make LEDs blink

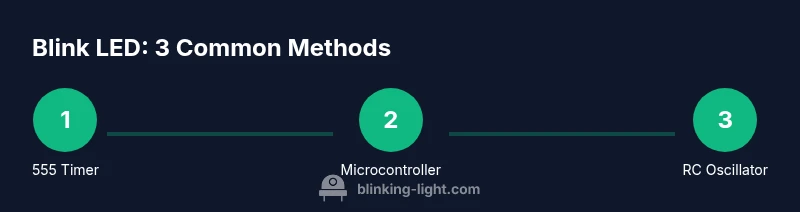

There are three widely used approaches for blinking LEDs in home projects: (1) dedicated timing ICs like the 555 timer in astable mode, (2) microcontroller-based blinking using platforms such as Arduino, (3) passive RC oscillator circuits that generate an oscillating voltage to drive the LED. Each method has tradeoffs: ease of use, precision, required skills, and how scalable the blink pattern is. For a quick, dependable result with minimal coding, the 555 timer route is often preferred. For highly customizable patterns or multiple LEDs, microcontrollers excel. RC oscillators offer a compact, resistor-capacitor approach, but timing drift is common with component tolerances.
Method A — Using a 555 timer in astable mode
The 555 timer is a classic choice for blinking LEDs because it integrates the necessary timing function in a tiny package. In astable mode, pins 2 and 6 are tied together, and you connect two resistors and a capacitor to set the blink rate. The LED is placed with a current-limiting resistor from Vcc to the output pin. The key calculation is the ON and OFF times determined by R1, R2, and C. Practical values for a beginner might use R1 around 1 kΩ, R2 around 10 kΩ, and a capacitor in the 10–100 μF range to produce seconds-scale blinking. Always verify polarity and provide a safe 5–9V supply to avoid damaging the LED or the IC. This method is robust, breadboard-friendly, and requires minimal programming.
Method B — Arduino or microcontroller blinking
Using a microcontroller adds pattern flexibility and easy customization. Connect a resistor and LED to a digital pin, upload a simple blink sketch, and let the code control the timing. Example pseudo-code: loop { digitalWrite(LED, HIGH); delay(msOn); digitalWrite(LED, LOW); delay(msOff); } For more complex sequences, you can implement PWM or state machines. If you’re a beginner, this method offers a forgiving learning curve because you can test ideas quickly and modify the program without rewiring. If power efficiency matters, you can implement sleep modes and variable duty cycles to fine-tune brightness while blinking.
Method C — Passive RC oscillator circuit
A simple RC oscillator uses a resistor and capacitor to generate a slow, periodic charging and discharging cycle that drives the LED through a transistor or a buffer. This approach minimizes parts but trades precision for drift due to capacitor tolerances and temperature. A tiny LED can blink by charging the capacitor to a threshold and discharging it through the LED, generating a repeatable blink if the values are chosen carefully. This method is compact and teaches the fundamentals of time constants, but for longer campaigns or precise rates, you’ll want to use a dedicated timing device or microcontroller.
Safety, power, and component choices
Working with LEDs and small power supplies is normally safe, but follow best practices to prevent shocks, burns, or component damage. Use a resistor to limit current to the LED; never place an LED directly across a power source. Validate the supply voltage and ensure the PWM or timing device remains within its ratings. When breadboarding, keep wiring tidy to avoid shorts, and use a 1/4W resistor for typical LED currents. If your project will be left unattended, consider a protective enclosure or a fuse in the supply line. For those experimenting with higher voltages or car electronics, always isolate circuits and follow safety standards from reputable sources like OSHA.
Troubleshooting common blinking issues
If the LED does not blink, recheck polarity, connections, and ground reference. A too-bright LED usually means the current-limiting resistor is too small. If the blink is too slow or irregular, check the timing components (R and C) and supply voltage stability. In microcontroller projects, verify the code compiles and that the correct pin is used. For 555-based circuits, ensure the threshold and discharge pins are properly wired. When in doubt, substitute a known-good LED and resistor to rule out a component failure, and measure the actual voltage with a multimeter to confirm expected operation.
Real-world project ideas to try
Decorative signage with a simple blink pattern on a few LEDs, a garden solar light that pulses at sunset, or a wall-mounted LED strip that gradually increases and decreases brightness. As you gain confidence, you can integrate blinking with sensors (motion, light level) or build a tiny consumer gadget that announces status changes with a blink. If you’re teaching kids, a safe breadboard demo is a great way to illustrate timing concepts and Ohm’s law in action. Always document changes and test each iteration before moving to the next.
Quick comparison and when to choose each method
- 555 timer: Best for standalone, low-cost blinks with minimal software
- Arduino/microcontroller: Best for complex sequences and multiple LEDs
- RC oscillator: Best for tiny, beginner-friendly experiments, but drift is common
- Consider power supply, enclosure, and reliability when deciding which route to take
Measuring blink rate and ensuring reliability
To measure blink rate, count the number of on/off cycles in a fixed time window (for example, 60 seconds) and divide by 60 to get cycles per second (Hz). Use a multimeter with a Hz setting or a simple stopwatch alongside a visual count to validate consistency. For reliability, verify that each component stays within its rated limits under expected temperatures and loads, and test the circuit across your intended power source variations. Document any drift you observe and adjust using resistor or capacitor tolerances. A well-documented build helps when you scale the project or share it with others.
