How to Make a Blinking Light: Step-by-Step Tutorial
Learn a safe, beginner-friendly way to make a blinking light using a 555 timer or a microcontroller. This guide covers materials, wiring, code, testing, troubleshooting, and real-world tips for reliable LED blinking in home devices.
By the end of this guide, you’ll be able to build a blinking light using a simple LED circuit powered by a low-voltage source. Choose your method (555-timer astable or a microcontroller), gather essential components, and wire the circuit safely. This quick answer covers essential steps, safety considerations, and common troubleshooting tips.
What is blinking light and why it matters
A blinking light is a visual signal used on devices to indicate status, power, alerts, or mode. You may see a tiny LED blink on a router, a dashboard indicator in your car, or a warning lamp on appliances. For homeowners and tech enthusiasts, understanding how blinking indicators are generated helps you diagnose, reproduce, and troubleshoot in a safe, controlled way. According to Blinking Light, blinking indicators are usually produced by simple, repeatable circuit patterns that you can reproduce on a breadboard. The most common approaches are a passive RC timing network driven by a transistor or flip-flop, or an active circuit powered by a small microcontroller. By learning these patterns, you can create reliable signals for DIY projects and smart-home indicators.
Two reliable methods to create blinking light
There are two widely used methods for making a blinking light: a 555 timer in an astable configuration and a microcontroller-driven blink. The 555 timer method uses a simple RC network to generate a periodic pulse, which drives an LED on and off. The microcontroller method relies on software timing to toggle the LED, offering more flexibility (color, brightness, patterns). Both approaches are beginner-friendly if you follow a safe, breadboard-based setup. Choosing between them depends on your goals: rapid setup and low component count vs. programmable patterns and future expandability.
Safety and prerequisites
Before you start, ensure you work on a non-conductive surface and keep liquids away. Use a low-voltage power source (5V or less is typical for desk-top experiments) and avoid mains power unless you have proper training and equipment. Always verify your circuit on a breadboard before any soldering, and never touch circuit wires while powered. If you’re new to electronics, begin with the microcontroller approach that you can simulate in software first, then move to a hardware prototype. Basic math and Ohm’s law are helpful: calculate LED current as (V - Vf) / R to prevent excess current that can burn the LED.
Materials and planning
Plan out your build by listing the essential parts: LED, current-limiting resistor, breadboard, jumper wires, power source, and one timing method (555 timer or microcontroller). For the 555-based version, you’ll need a 555 timer IC, a couple of resistors, and a capacitor to set the blink rate. For the MCU version, you’ll need a compatible microcontroller board and basic programming cable. Keep a spare LED and resistor values in a small kit, and use a multimeter to verify voltages during testing. This upfront planning saves time and reduces guesswork during assembly.
Method A: 555 timer astable blinking
In the 555 timer astable configuration, the LED is connected to the timer’s output pin, so every timing cycle turns the LED on and off. Start with a safe power supply of 5V and preserve current with a resistor in series with the LED. The RC network comprises two resistors and a capacitor; typical ranges are R1 1k–10k Ω, R2 1k–100k Ω, and C 0.01–100 μF. You’ll adjust R1 and R2 to set the blink rate and duty cycle. Mount the 555 on a breadboard, wire pins 1 GND, 8 VCC, 4 RESET high, 2/6 THRESHOLD and TRIGGER tied to the RC network, and 3 OUTPUT to the LED through its resistor.
Method B: microcontroller blinking
Using a microcontroller gives you flexible control over blink rate, duty cycle, and patterns. Wire the LED to a digital output pin through a resistor, supply Vcc and GND, then upload a simple blink routine. A minimal sketch toggles the pin HIGH/LOW with a delay to create the blink. For example, on an Arduino-compatible board, you might use
Tools & Materials
- LED (standard 3V forward, 5mm)(Choose color you like; ensure forward voltage is compatible with your supply.)
- Resistor (220 Ω)(Current-limiting for LED; adjust if you change supply.)
- Breadboard(For safe prototyping; no soldering required.)
- Jumper wires (assorted male-to-male)(Use to connect components on the breadboard.)
- 555 timer IC (optional)(Used for RC timing in the 555-based method.)
- Microcontroller board (optional)(e.g., Arduino or compatible; for code-based blinking.)
- Power source (battery pack or USB power)(5V recommended; ensure capacity for your LED.)
- Multimeter (optional)(Verify voltages and current during testing.)

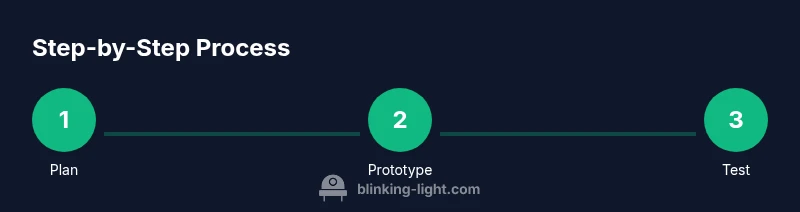

Steps
Estimated time: 60-90 minutes
- 1
Choose your method
Decide between the 555 timer astable method and the microcontroller method. Your choice will guide wiring, components, and testing steps. If you want quick assembly with minimal code, start with the 555 timer. If you want programmable patterns, go with a microcontroller.
Tip: Note which approach fits your goal: speed of setup vs. flexibility in pattern. - 2
Gather materials
Collect LED, resistor, breadboard, jumper wires, and your chosen timing method (555 timer or MCU). Keep extra components on hand in case you need quick substitutions. Having a small parts kit speeds up experimentation.
Tip: Lay out parts in an organized workspace to avoid misplacing components. - 3
Set up the breadboard layout
Place the LED and current-limiting resistor on the breadboard and create a safe power rail for your circuit. Ensure the LED is oriented correctly (anode to positive, cathode to ground).
Tip: Double-check polarity before applying power to avoid damaging the LED. - 4
Build the 555-timer circuit
If using the 555 approach, connect the timer on the breadboard with pins 1 GND, 8 VCC, 4 RESET tied high, and 2/6 THRESHOLD and TRIGGER linked to your RC network. Attach LED through a resistor to the OUTPUT pin.
Tip: Start with conservative RC values (e.g., R1 1k, R2 10k, C 10μF) and adjust for the desired blink rate. - 5
Wire the microcontroller circuit
If using a microcontroller, wire Vcc and GND, connect the LED via a resistor to a digital pin, and upload the blink sketch. Ensure the pin you choose matches your code (e.g., D13 on many boards).
Tip: Test code with a simple delay loop before attempting longer patterns. - 6
Power and test the circuit
Apply power safely and observe the LED. If it doesn’t blink, recheck connections, polarity, and resistor values. Use a multimeter to confirm supply voltage is correct.
Tip: If there’s no blink, try the other method to isolate whether the issue is hardware or software. - 7
Adjust blink rate and pattern
Tweak resistor values or code delays to alter blink speed. Common starting points are delays of 250-1000 ms for noticeable but comfortable blinking.
Tip: Document each change so you can revert if needed. - 8
Finalize and document
Once the blink is stable, consider sealing the prototype on a perfboard or keeping it on the breadboard for testing. Note your component values and code version for future projects.
Tip: Label your build and store components for reuse in future projects.
Quick Answers
What is the simplest way to make a blinking light for a beginner?
The simplest way is to use a 555 timer in an astable configuration on a breadboard with a current-limiting resistor for the LED. This approach teaches timing concepts without heavy coding. You can start with a common RC setup and adjust the blink rate by changing resistor or capacitor values.
A breadboard with a 555 timer and a few components is the easiest way to begin blinking LEDs without writing code.
Can I blink a light without a 555 timer or a microcontroller?
Yes. A purely RC network can produce a basic blink using transistors and resistors, but it’s less common for beginners because it requires careful component matching and may be less stable. The 555 timer method is typically recommended for reliability.
You can use a simple RC network, but the 555 timer approach is usually more reliable for beginners.
What blink rate is appropriate for a basic indicator?
A visible blink rate is typically in the range of 1–2 seconds per cycle (on for about 0.5–1 second, off for 0.5–1 second). Adjust the RC values or code delays to hit your preferred rhythm based on the project.
Most people find a one-second blink comfortable and easy to observe.
Is it safe to handle the circuit while powered?
Only work on low-voltage circuits (5V or 3.3V) and keep liquids away. Avoid touching exposed conductors, and disconnect power before swapping components. Use proper insulating practices when prototyping.
Yes, but keep it safe by using low voltage and disconnecting power when adjusting components.
How do I change the blink pattern besides just on/off?
With a microcontroller, you can implement multiple patterns (e.g., blink, double-blink, or chasing LEDs) by adding more code paths or delays. With a 555 timer, you’d typically adjust RC values to shift the rate or use a second timer for more complex patterns.
Use longer or shorter delays in code to create different patterns.
What are common mistakes that stop blinking from working?
Wrong LED polarity, incorrect resistor value, or incorrect wiring are frequent issues. For MCU setups, incorrect pin assignments or boot issues can prevent code from running. Double-check connections and test with a known-good example.
Most issues come from wiring or incorrect code configuration.
Watch Video
Main Points
- Decide between 555 timer or MCU method based on goals.
- Always use current-limiting resistor with LEDs.
- Test with a breadboard before soldering; verify polarity.
- Adjust RC values or code delays to tailor blink rate.
- Document values and code for easy future reuse.
