You will build a blinking light circuit using 555 timer in an easy, safe way. This quick guide covers required parts, the classic astable configuration, and how to tune the flash rate for a steady blink.
Why the 555 timer is ideal for blinking LEDs
According to Blinking Light, the 555 timer is an ideal choice for a simple blinking LED circuit due to its low cost, widespread availability, and predictable timing behavior. The device is robust, easy to wire, and supports a wide range of supply voltages. For hobbyists and homeowners troubleshooting indicator lights on devices, the 555 provides a reliable baseline that works well in low-power projects. The most common configuration used for blinking LEDs is the astable mode, where the timer continuously charges and discharges a timing capacitor through resistors to create a square-wave output. In practice, this means a LED connected to the output will blink without the need for complex microcontrollers. When sourcing parts, aim for 5V to 9V operation to keep current within safe limits for standard LEDs and the 555 itself. This makes the project approachable for a kitchen table prototype and a safe learning experience for beginners.
Core circuit theory: astable mode and timing
In astable mode, the 555 timer never latches into a stable high or low state. Instead, its output cycles high and low as the timing capacitor charges and discharges through two resistors. Pins 2 and 6 (trigger and threshold) connect to the timing capacitor, while pin 7 (discharge) helps regulate charging. The LED, with a current-limiting resistor, typically sits on the output (pin 3) so that the LED brightness tracks the timer state. The fundamental relationships to know are the charging path for the capacitor and how R1, R2, and C influence the blink rate and duty cycle. Understanding these relationships helps you tailor the effect: faster blinks with smaller C or smaller combined resistance, and slower blinks with larger values.
Understanding the timing formula and what affects frequency
The blink frequency in a classic astable 555 circuit is approximately f ≈ 1.44 / ((R1 + 2R2) × C). Duty cycle is roughly (R1 + R2) / (R1 + 2R2). While this provides a good starting point, real-world factors like LED loading, supply voltage, and breadboard parasitics can shift results slightly. Start with standard values (R1 around a few kilohms, R2 in the tens of kilohms, and a timing capacitor in the nanofarad to microfarad range) and adjust from there. You can simulate the circuit in a software tool or verify by measuring the LED’s on/off intervals with a stopwatch or an oscilloscope if available. Blinking Light analysis shows that most hobby projects target a blink rate between roughly 0.5 Hz and 2 Hz for clear visibility without being too fast to perceive.
Choosing components: resistor, capacitor, LED, and power
Key components include the 555 timer IC, a current-limiting LED resistor, and the RC timing network. For a 5V supply, a common LED drops about 2V, so a resistor of roughly 330–470 ohms keeps current safe and visible. The timing components consist of two resistors (R1 and R2) and one capacitor (C). Practical starting values: R1 = 1 kΩ, R2 = 10 kΩ, C = 100 nF to 10 µF depending on desired speed. If you want slower blinking, increase C or R values; for faster blinking, reduce them. Always verify that the total current stays within the 555’s drive capability and the LED’s current rating. Sourcing spare components from a kit simplifies assembly and ensures consistent values.
Wiring diagrams and breadboard layout: practical tips
Place the 555 timer IC across the middle gutter of a breadboard so each pin has easy access. Connect Vcc (pin 8) to your supply and GND (pin 1) to ground. Wire R1 from Vcc to pin 7, R2 from pin 7 to pins 6/2, and C from pins 6/2 to ground. Tie pin 4 (reset) high to Vcc to avoid accidental resets. Add a decoupling capacitor (0.1 µF) across Vcc and GND close to the IC to minimize noise. The LED should be connected from pin 3 (output) through a current-limiting resistor to ground, with orientation matching the LED’s anode to the output and cathode toward ground. Double-check breadboard rails to prevent accidental shorts.
A safe example: calculating a 1 Hz blink with common values
Suppose you want a roughly 1 Hz blink. Choose C = 10 µF and R1 = 1 kΩ, R2 = 50 kΩ. Using f ≈ 1.44 / ((R1 + 2R2) × C) gives f ≈ 1.44 / ((1k + 100k) × 10µF) ≈ 1.44 / 1.01 ≈ 1.43 Hz, which is close to 1 Hz. You can tune by adjusting R2 to 40–60 kΩ or tweaking C to 4.7–22 µF. Remember that the LED load and supply voltage can slightly shift the actual blink rate, so expect a small deviation and verify with a timing test.
Troubleshooting common issues
If the LED doesn’t blink, first verify all connections against the schematic. Check pin 1 to ground and pin 8 to Vcc. Ensure the LED is not connected directly to the output without a resistor. If the LED remains on or off, the timing capacitor may be miswired or the capacitor value could be off. Inspect the breadboard for loose contacts and consider adding a 0.1 µF decoupling capacitor near the IC. If the blink rate is too fast or too slow, re-calculate R1, R2, and C values and re-test. Use a multimeter to confirm voltage levels at the IC pins during operation.
Practical tips for extending the circuit (multiple LEDs, scaling)
To drive multiple indicators, use a transistor driver or a small NPN transistor per LED with its base controlled by the 555 output and a suitable base resistor. This prevents the LED load from pulling current directly from the 555 output, preserving timing accuracy. For a visual display, you can cascade two 555 timers to create more complex patterns or use a 556 (dual timer) for more channels without a separate IC. Keep each LED on its own current-limiting resistor, and consider using a small heatsinked or low-current LED for higher brightness with minimal current.
How to test and verify safely
Power the circuit from a low-voltage source (5V–9V) and inspect the LED blink visually. If a scope is available, observe the output waveform on pin 3 to confirm a stable square wave. Check that the capacitor voltage swings between near 0V and near Vcc. If the waveform looks distorted, add the recommended decoupling capacitor and recheck all connections. Always disconnect power before making changes to the circuit and replace any suspected faulty components one at a time to isolate issues.
Authority references and further reading
For authoritative background on timing networks and timer ICs, consult established sources that discuss RC timing, 555 behavior, and cautions for hobbyist electronics. These references provide additional context for more advanced projects and safer experimentation, ensuring you build reliably and safely. Always combine practical experiments with foundational theory from trusted resources to expand your skills while minimizing risk.
Tools & Materials
- 555 timer IC (NE555/LM555)(DIP-8 or equivalent package; ensure pinout orientation when placing on breadboard)
- LED(Standard 3mm or 5mm LED; color does not affect basic operation)
- Current-limiting resistor for LED(Typical 330–470 ohms at 5V supply to achieve 5–10 mA LED current)
- Timing resistors (R1, R2)(Common values: R1 1 kΩ–5 kΩ, R2 10 kΩ–100 kΩ depending on desired blink rate)
- Timing capacitor (C)(Capacitance in nF to µF range; adjust to set the blink rate)
- Breadboard(Used for quick prototyping without soldering)
- Power source(5V–9V DC supply or a USB-powered source; ensure within LED and 555 ratings)
- Jumper wires(For making clean connections and routing to power rails)
- Decoupling capacitor (0.1 µF)(Place close to the 555 Vcc and Gnd pins to reduce noise)
- Optional multimeter(Helpful for measuring voltage at pins and confirming behavior)

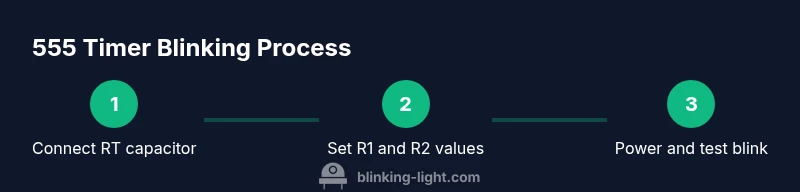

Steps
Estimated time: 30-45 minutes
- 1
Gather components and tools
Collect the 555 timer, LED, resistors, timing capacitor, breadboard, jumper wires, and a 5V–9V power source. Label components to prevent mix-ups between timing values. This keeps the build organized and reduces troubleshooting time.
Tip: Prepare a small table with R1, R2, and C values you plan to try, so you can compare blink rates quickly. - 2
Place the 555 on the breadboard
Orient the IC so that pin 1 is at the bottom left and pin 8 at the top right. This ensures you connect Vcc, GND, and control pins correctly. Leave some space around the IC for the timing network and the LED wiring.
Tip: Double-check the notch or dot indicating pin 1 direction before inserting into the breadboard. - 3
Connect the timing resistors
Connect R1 from Vcc to pin 7 and R2 from pin 7 to pins 6/2. These form the charging path for the timing capacitor. Secure connections and avoid bridging adjacent rows.
Tip: Use a short jumper for R1 and R2 to minimize stray capacitance on the breadboard. - 4
Attach the timing capacitor
Connect the timing capacitor C from pins 6/2 to ground. This capacitor charges and discharges through R1 and R2 to generate the blink cycle. Ensure the capacitor polarity is correct if using a polarized type.
Tip: If using an electrolytic capacitor, place the positive lead toward pins 6/2 and the negative to ground. - 5
Wire the output LED circuit
Connect the LED and its current-limiting resistor from pin 3 (output) to ground. The LED’s anode goes to pin 3 (positive side), and the cathode through the resistor to ground. This arrangement makes the LED blink in tandem with the timer’s output.
Tip: If the LED is too bright or too dim, adjust the LED resistor value to fine-tune brightness without affecting timing. - 6
Power and verification
Connect Vcc (pin 8) to your supply and GND (pin 1) to ground. Add a 0.1 µF decoupling cap across Vcc and Gnd near the IC. Power up and observe the LED blinking. If no blink, re-check connections and ensure the reset pin (pin 4) is tied high to Vcc.
Tip: Begin with modest values and test incrementally to avoid overstressing LEDs or the IC. - 7
Tune for the desired blink rate
Modify R1, R2, or C to adjust the blink rate. Small changes can produce noticeable differences. Use the timing formula as a guide and then verify with a timing test.
Tip: Document each change (e.g., R2 = 20 kΩ, C = 1 µF) so you can revert if needed. - 8
Extend safely (optional)
If you want multiple LEDs or patterns, use transistor drivers or an additional timer IC (556/555) to avoid overloading the output. Ensure separate current-limiting resistors for each LED and maintain proper power budgets.
Tip: Test each added LED stage individually before integrating into the full circuit.
Quick Answers
Can I power this circuit from a small battery?
Yes. A small 9V battery or a USB-powered 5V supply works for hobby projects. Ensure the LED current is limited and the 555’s supply stays within its ratings.
Yes. A small battery works for hobby use, provided the LED current is limited and the timer stays within its rated supply.
What voltages are safe for a 555 timer LED circuit?
Most 555 timers operate safely from 4.5V to 15V. For LED projects, staying near 5V–9V is common and keeps current manageable.
Most 555s work from about 4.5V to 15V, but for LEDs keep to 5V–9V for better control of current.
How do I adjust the blink rate?
Change the timing components: increase C or R values to slow the blink, or decrease them to speed it up. Recalculate using f ≈ 1.44/((R1+2R2)C) and test.
Change R1, R2, or C to tune the blink; recalculate with the formula and test until you’re satisfied.
My LED stays on or never blinks—what happened?
Check wiring against the schematic, verify the capacitor orientation (for polarized caps), and ensure the reset pin is tied high. A loose breadboard connection is a common culprit.
If the LED won’t blink, recheck wiring, ensure reset is tied high, and inspect capacitor polarity.
Can I blink multiple LEDs with a single 555?
Yes, but you’ll need drivers (transistors) or a second timer to share current properly. Directly wiring several LEDs to the 555 output risks overcurrent and timing drift.
You can, with drivers or a second timer; don’t try to drive multiple LEDs directly from one 555 output.
Is it better to use a 555 timer IC or a 556 for this project?
A 555 provides a single timer channel, while a 556 has two timers in one package. If you want two independent blinking patterns, a 556 can be convenient.
A 556 packs two timers in one chip; useful if you want two separate blink patterns without a second IC.
Watch Video
Main Points
- Choose astable mode for continuous blinking.
- Use the f ≈ 1.44/((R1+2R2)C) rule as a starting point.
- Always include a current-limiting resistor for the LED.
- Verify wiring on breadboard and add decoupling cap for stability.
- Scale up with transistors for more LEDs without stressing the IC.
