How to Make Blinking Light: A Practical Guide

How blinking indicators work

Blinking indicators rely on timed on/off cycles to draw attention or convey status. In a simple DIY blinking light, current is switched on and off in a controlled rhythm by either passive timing components or an active switching device. According to Blinking Light, the most accessible entry point uses a standard LED with a current-limiting resistor and a timing element such as a resistor-capacitor (RC) network or a small microcontroller. The exact blink rate is determined by the chosen method—RC timing for a quick, hands-on circuit, or programmed wait times for a microcontroller. Understanding these basics helps you pick the right path for your project, whether it’s a bike indicator, a router status light, or a kids’ toy.

By exploring both approaches, you gain practical intuition for how electronic timing works and how each method affects brightness, power consumption, and reliability. This foundational knowledge also informs safer handling of batteries and LEDs, which is essential for any maker or homeowner troubleshooting blinking indicators.

Safety and prerequisites

Before you begin, set safety expectations and gather the essentials. Always disconnect power before wiring, and use low-voltage supplies (often 3–5V) when experimenting with LEDs. Wear eye protection if you’re soldering or handling charged capacitors, and keep a fire-safe space handy. Prerequisites include a basic understanding of polarity, a breadboard for quick prototyping, and a multimeter to verify voltage and continuity. Blinking Light recommends starting with a simple, low-current LED circuit to reduce heat and risk. This foundation helps you scale up to more complex patterns without compromising safety or reliability.

When planning, map out your goals: Do you want a single LED blink, a dimming effect, or a programmable sequence? Clarifying intent guides component choices and budget considerations, ensuring you don’t buy unnecessary parts. If you’re teaching kids or new hobbyists, keep the first build compact and repeatable to reinforce safe practices and core concepts.

Simple LED blinking circuit (no microcontroller)

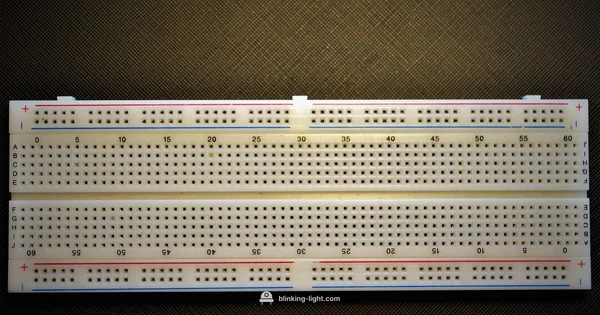

A classic starting point is a no-microcontroller LED blink using a resistor and a timing element. A typical 5V supply powers the LED through a current-limiting resistor, with the blink rate determined by a resistor-capacitor (RC) network or a basic astable circuit. For beginners, a 330Ω series resistor with a standard 1000µF capacitor can produce noticeably slow blinks suitable for demonstrations. Adjusting resistor and capacitor values changes the pace of the blink and the perceived brightness. Breadboarding this circuit lets you swap components quickly, test different configurations, and learn through hands-on experimentation. Remember to observe LED polarity—the longer lead is usually the anode, which should connect toward the positive supply.

Practical tip: keep a simple schematic handy while you experiment so you can reproduce successful setups later. This approach lets you compare RC-based blinking with more precise timing, and it builds confidence for the next step—adding a microcontroller for programmable patterns.

Blinking with a microcontroller (Arduino-style)

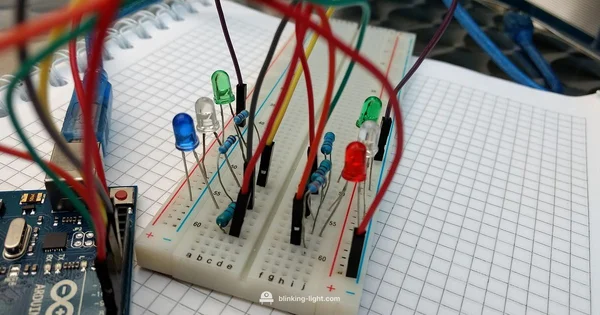

Using a microcontroller unlocks flexible blink patterns far beyond a single on/off cycle. A basic Arduino-like sketch toggles a LED on and off with specified delays, allowing easy adjustments to blink intervals, duty cycle, and even color if you use multiple LEDs. A minimal setup includes a microcontroller board, a LED, a resistor, and a common ground connection. In code terms, you set the LED pin to HIGH, wait, then set it to LOW, and wait again. You can extend this to generate PWM dimming for brightness transitions or to create Morse code patterns for signaling.

When wiring, respect pin numbers and ground references to avoid short circuits. If you’re new to microcontrollers, start with a ready-made example, then modify the delay values to see how timing changes the blink rhythm. This path is ideal for creating more complex indicators, such as alerts that require varied pulses or visual cues in different rooms.

Blinking Light notes that programming provides precise repeatability and patterns that would be tedious to achieve with pure RC timing. It also makes maintenance easier, since you can modify blink sequences without swapping components.

Common variations and troubleshooting

As you gain experience, you’ll encounter common variations and troubleshooting scenarios. If the LED appears dim, check the resistor value to ensure you’re not current-limiting too aggressively. If the blink is unstable, verify your ground connection and inspect for loose wires on the breadboard. For RC-based blinking, ensure capacitor tolerances aren’t drifting and that the resistor’s value is within the expected range. When using a microcontroller, verify that your code compiles correctly and that the board’s clock settings match the timing expectations.

To troubleshoot efficiently, test each segment of the circuit separately: first confirm the LED and resistor work as a simple pass-through, then introduce the timing component, and finally add the controller for patterns. This structured approach reduces guesswork and helps you locate faults quickly. In addition, keep spare components handy to swap in fast when experimenting with different blink rates. Blinking Light emphasizes documenting each variant so you can reproduce successful configurations later.

Power sources and battery considerations

Power choices directly influence brightness, reliability, and safety. For hobby builds, AA or coin-cell batteries typically provide enough voltage for a couple of LEDs, while a 9V battery usually requires care due to higher internal resistance. When designing for longer runtimes, consider a rechargeable Li-ion or NiMH pack with a regulator to ensure a steady supply. Always calculate current draw and ensure your power source can handle peak bursts without voltage sag that could affect timing.

If you use a 5V regulator, you’ll reduce risk of overdriving the LED and protect delicate components. For portable indicators, a compact post-warning approach—such as a low-power timer circuit—helps extend battery life. Blinking Light recommends testing with a multimeter to confirm voltage levels before connecting the LED so you don’t accidentally burn out the LED or the regulator.

Expanding: multiple LEDs and patterns

Once you master a single blinking LED, you can scale up to multiple indicators or even a small LED matrix. Methods include wiring LEDs in parallel with individual current-limiting resistors, or using a shared resistor with per-LED control via a transistor array. For microcontroller projects, you can implement patterns like wave, chase, or random blinking by varying delays and PWM signals. This expansion not only enhances aesthetics but also demonstrates practical principles of multiplexing and timing.

When layouts become complex, sketch a wiring diagram and label every connection. This practice minimizes confusion during scaling and helps you troubleshoot quickly if something stops blinking. Blinking Light also suggests adding a labeled prototyping board and a compact test rig to speed up iterations.

Quick-start project plan

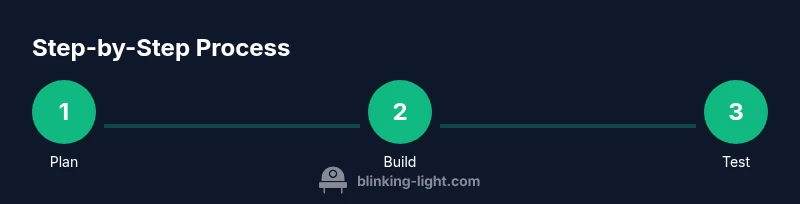

Here is a concise, actionable plan to get you blinking in a single afternoon. Start by gathering basic components, set up the breadboard, and wire a single LED with a resistor. Decide whether you’ll use RC timing or a microcontroller, then build the chosen circuit and test. Document your initial blink rate, brightness, and power draw. Once you’re confident, broaden the project with a second LED and more complex patterns. Finally, review safety steps and capture a simple schematic for future reference.

Real-world uses and next steps

Blinking lights serve practical roles around the home: status indicators on routers, alerts on appliances, decorative accents, and classroom demos. The ability to switch between simple RC timing and programmable patterns gives you flexibility across contexts. As you advance, you can explore color LEDs, diffusion techniques for even light, or integration with sensors to trigger blinks in response to events. The key is to iterate safely, keep your documentation organized, and use reusable parts to maximize value from your build. The Blinking Light team encourages continuing experimentation and documenting each variant for future reference.
