How to Make a Blinking Light in Tinkercad
Learn how to create a blinking light in Tinkercad, using either a 555 timer or an Arduino blink sketch. This hands-on guide covers wiring, timing formulas, testing in the simulator, and troubleshooting for beginners.
In Tinkercad you can make a blinking light using either a 555 timer circuit or a simple Arduino blink sketch. You’ll wire a LED with a current-limiting resistor, set timing with RC values or a short code sequence, and run the built-in simulator to verify the blink. This hands-on approach builds foundational electronics skills for beginners.
Understanding blinking indicators and why Tinkercad is a great learning sandbox
Blinking indicators are a universal signal in electronics, telling you when a circuit is alive, active, or in a standby state. For many homeowners and tech enthusiasts, learning how to recreate a blinking light helps demystify timing, current limiting, and basic wiring. Tinkercad Circuits offers a safe, online sandbox to experiment with LEDs, resistors, capacitors, and microcontrollers without any hardware risk. According to Blinking Light, starting with a simple blinking LED in a simulated circuit builds intuition for how timing components and software interact to produce a visible on/off pattern. As you explore, you’ll gain confidence diagnosing issues like a stubborn blink or a dim LED, and you’ll learn how to adjust speed, brightness, and duty cycle to match real-world needs.
In the broader landscape of indicator lights—whether on a car dashboard, a router, or a kitchen appliance—the basic blinking pattern is a reliable first project. By mastering a couple of core techniques in Tinkercad, you’ll be prepared to translate virtual designs into real-world hardware later. This guide uses two parallel paths: a 555 timer-based blinker (no microcontroller) and an Arduino-based blink sketch, so you can choose the approach that matches your interests and available components. Blinking Light’s methodology emphasizes clarity, repeatability, and safe practice, so you’ll learn fundamentals you can reuse across many projects.
Quick comparison: 555 timer vs. Arduino for blinking LEDs in Tinkercad
- 555 timer path: Great for learning RC timing and discrete components. It tends to be robust and requires fewer lines of code. You’ll configure an astable circuit to generate a steady on/off waveform, then drive an LED through a current-limiting resistor. This route is excellent for understanding how timing and resistance influence blink speed.
- Arduino path: Best for those who want to practice programming. You’ll write a simple sketch (e.g., digitalWrite or analogWrite for PWM brightness) and connect an LED to a digital pin. The Arduino route makes it easy to experiment with more complex blink patterns and conditional behavior.
Both paths teach essential concepts: how current flows, how timing components influence cadence, and how to validate circuits in a simulator. The Blinking Light team recommends starting with the 555 timer to grasp hardware timing, then moving to Arduino for flexible, code-driven patterns.

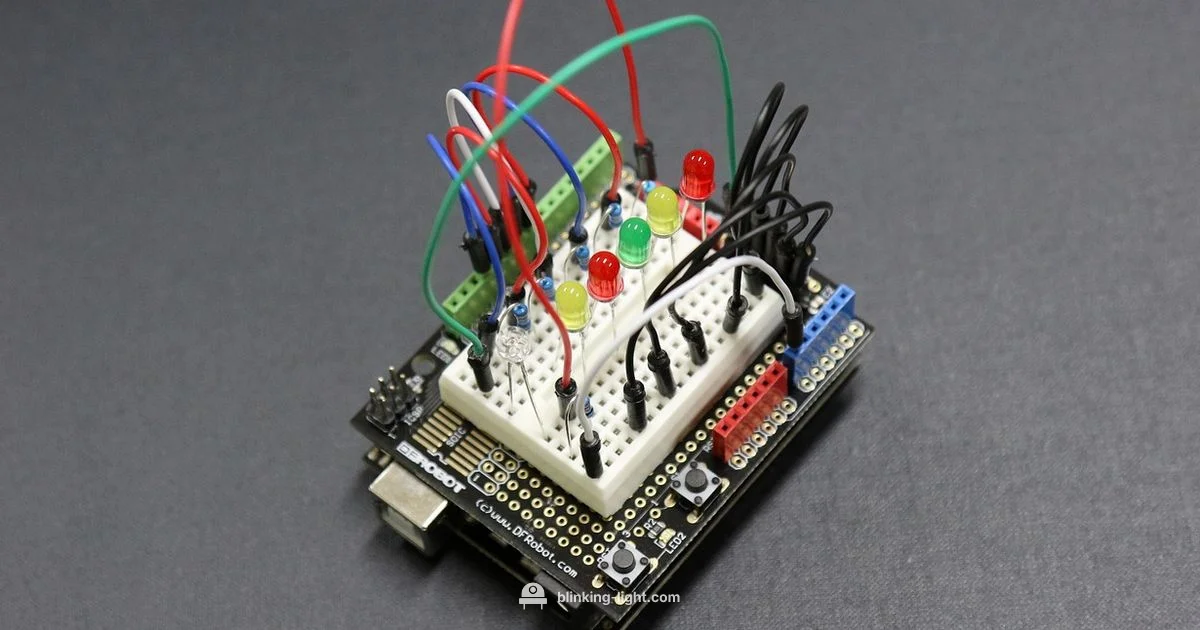

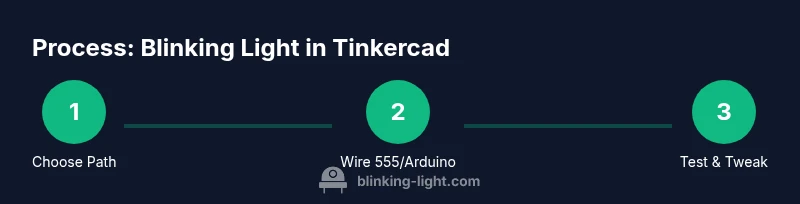

Step-by-step overview: preparing your Tinkercad workspace and choosing your path
Before diving into wiring, decide which route you’ll take. If you prefer a hardware-focused approach, the 555 timer path will teach you about resistors, capacitors, and the relationship f ≈ 1.44/((R1+2R2)C). If you’re excited about coding, the Arduino path unlocks rapid experimentation with software timing and PWM.
In either case, you’ll use a standard LED with a current-limiting resistor to protect the LED. Keep in mind safety and proper polarity: the longer leg is the anode, and the LED should be connected so current flows from Vcc (or the Arduino pin) toward ground through the LED. Testing in the Tinkercad simulator lets you iterate quickly and safely.
Option A: Build a 555 timer blinker circuit (no microcontroller)
The 555 timer IC in astable mode can blink a LED without any programming. You’ll connect Vcc (pin 8) and ground (pin 1), tie the discharge (pin 7) to the timing network (R1 and R2), and place a timing capacitor (C) between trigger/threshold pins (2/6) and ground. The LED, with a series resistor, is driven from the output pin 3. A typical goal is about 1 blink per second, which you can achieve by selecting RC values that give roughly a 1 Hz frequency. In Tinkercad, you’ll assemble: NE555, LED + resistor, R1, R2, C, breadboard, and power rails. For a 1 Hz blink, try R1 ≈ 1 kΩ, R2 ≈ 10 kΩ, C ≈ 100 µF to slow the cycle; you can adjust values to fine-tune the cadence. Remember to add a small decoupling capacitor across Vcc and GND if your simulation shows noise. The key is to confirm the LED toggles on and off with a clean, stable rhythm.
Tip: Start with R1 = 1 kΩ, R2 = 10 kΩ, C = 100 µF as a baseline, then swap values to slow down or speed up the blink.
Option B: Build an Arduino-based blinking LED in Tinkercad
The Arduino path introduces simple software timing. Place an Arduino Uno, a 220–330 Ω resistor for the LED, and connect the LED to a digital pin (commonly D13) with the short leg to ground. Load a minimal sketch that toggles the LED every 1 second using delay(1000). In Tinkercad, you’ll type the code in the Arduino IDE, click Run, and watch the LED blink in the simulator. This route is ideal if you want to experiment with varying blink rates, PWM-based brightness control, or more complex patterns like SOS or heartbeat pacing. Remember to select the same ground reference for the Arduino and the LED circuit, and ensure the resistor is in series with the LED to limit current. The Blinking Light approach emphasizes safe coding practices and readable, well-commented sketches so you can replicate or extend the example in future projects.
How to test and verify blinking behavior in the Tinkercad simulator
Regardless of path, testing is essential. In the 555 timer setup, ensure the LED blinks with a consistent cadence and that the voltage across the LED remains within its safe range. If the rhythm is too fast, increase C or R values; if too slow, decrease them. In the Arduino setup, verify the code compiles without errors, confirm the LED on D13 toggles as programmed, and use the serial monitor to log timing if you’re adding diagnostics. In both cases, watch for flicker or uneven brightness, which can indicate wiring issues, poor connections on the breadboard, or incorrect wiring of power rails. Keep a log of adjustments so you can reproduce a specific blink pattern across different projects.
Troubleshooting common issues in Tinkercad circuits
- LED does not blink: double-check polarity and ensure the LED resistor is correctly placed in series. Verify that the LED is connected to the correct output pin (D13 for Arduino, pin 3 for 555 output).
- LED is very dim or bright: recalculate resistor values to achieve safe current (typically 5–15 mA for standard LEDs). In 555 circuits, ensure the timing network is correctly wired and that the capacitor polarity is correct when using electrolytics.
- No simulation or errors: ensure the power rail is enabled and that components are placed on a common ground. For Arduino projects, confirm the code is uploaded and that the board model is selected in the simulator.
- Frequency drift during testing: live variables like capacitor tolerance can affect timing. Use a stable capacitor value and consider a more precise resistor if your deadline requires consistent cadence.
- Complex patterns: if you want fancy blink patterns, start with the Arduino route and progressively add timing logic or PWM for brightness control. This keeps the project approachable while expanding capabilities.
Authority sources and further reading
For deeper fundamentals, consult credible sources that cover timing circuits and microcontroller basics. The following references provide foundational knowledge and advanced details you can apply to future electronics projects:
- https://www.nist.gov
- https://www.mit.edu
- https://www.berkeley.edu
Authority Sources
The following sources provide foundational timing and electronics concepts used in this guide. While you experiment in Tinkercad, these references help connect virtual practice to real-world electronics principles.
- NIST: https://www.nist.gov
- MIT: https://www.mit.edu
- UC Berkeley: https://www.berkeley.edu
Tools & Materials
- Breadboard (solderless, full-size)(At least 400 tie-points)
- LED (any color)(Prefer standard 5 mm LED; identify anode/cathode)
- Current-limiting resistor (LED, typically 220–330 Ω)(Choose 1 resistor per LED path)
- 555 timer IC (NE555 or compatible)(Need to orient correctly)
- Capacitors (0.1 µF and a larger timing capacitor, e.g., 100 µF)(Electrolytic timing cap may require polarity awareness)
- Resistors (R1, R2): 1 kΩ and 10 kΩ(Used in RC timing network for 555)
- Wires/jumper leads(For connections between components)
- Arduino Uno or similar microcontroller (optional)(Use if choosing the Arduino path)
- USB cable for Arduino (optional)(Needed to load code if tested outside simulated environment)
- Power supply (5V)(Stable supply for timer and LED)
- Multimeter (optional)(Helpful for measuring voltage/current during experiments)
Steps
Estimated time: 60-90 minutes
- 1
Open a fresh Circuits project in Tinkercad
Launch Tinkercad, create a new Circuits project, and set the workspace to a comfortable scale for breadboarding. This seeds the project with a clean slate for either 555 timer or Arduino-based blinking. Ensure you have all required components laid out nearby for quick assembly.
Tip: Label your board layout in the software to avoid mix-ups between the 555 path and Arduino path. - 2
Place the NE555 timer on the breadboard
Position the NE555 IC with the notch facing you so pin 1 is bottom-left. This establishes correct orientation and prevents pin-mapping errors during wiring. If you’re new to ICs, remember to spread the pins across the central trough of the breadboard.
Tip: Double-check the orientation against the IC’s datasheet or the notch symbol in Tinkercad. - 3
Wire the power pins and ground
Connect Vcc (pin 8) to the 5V rail and GND (pin 1) to the ground rail. A solid ground reference is essential for stable timing and consistent LED behavior. Use a short jumper to minimize stray resistance.
Tip: Keep power rails clean and avoid looping wires near the timing network to reduce noise. - 4
Configure the timing network (R1 between Vcc and pin 7)
Insert R1 between Vcc and the discharge pin (7) to form part of the RC network that sets the blink rate. In astable mode the LED cadence is driven by the charging and discharging of the timing capacitor.
Tip: Start with R1 ≈ 1 kΩ to get a visible blink before tweaking values. - 5
Add R2 and the timing capacitor (C between pins 2/6 and ground)
Place R2 between pin 7 and pins 2/6, and connect the timing capacitor from pins 2/6 to ground. These components determine ON and OFF durations together with R1. Ensure the capacitor polarity is correct if using an electrolytic type.
Tip: For a 1 Hz baseline, try R2 ≈ 10 kΩ and C ≈ 100 µF as a starting point. - 6
Connect the LED and series resistor to output
Wire the LED (anode to the 555 output, cathode to ground) with a series resistor (≈ 220–330 Ω). This protects the LED and ensures safe current flow. Check that the LED lights when the output toggles.
Tip: Verify LED orientation before powering the circuit to avoid reverse-biased LEDs. - 7
Power and observe the blink
Apply power to the circuit and watch the LED blink. If the blink is too fast or too slow, adjust C or R values accordingly and re-test. Use the simulator’s pause and reset features to repeat experiments quickly.
Tip: Document the R and C values that produce your target cadence for future projects. - 8
Switch to Arduino path for more patterns
If you want programmable patterns, replace the 555-based section with an Arduino. Connect the LED to a digital pin via a resistor and load a simple sketch that toggles the LED every 1 second. Verify timing by counting blinks.
Tip: Keep your Arduino ground shared with the LED circuit to avoid floating references. - 9
Enter a basic Arduino blink sketch
Open the Arduino editor in Tinkercad and paste a minimal loop that toggles the LED on pin 13 with a 1-second delay. This step is about adding readable, well-commented code for future enhancements.
Tip: Comment your code to remind yourself why you chose delay timing and pin assignments. - 10
Run the simulation and verify visuals
Click Start/Reset to run the circuit. Observe LED blinking and confirm that voltage levels stay within safe limits. If needed, adjust the resistor value or code delay to refine the cadence.
Tip: Use the simulation’s live console to log timings if you’re experimenting with patterns. - 11
Experiment with multiple LEDs (optional)
Add a second LED in parallel with its own current-limiting resistor to explore synchronized or alternating blink patterns. For Arduino, assign a second pin and write a second blink routine to create patterns like chase or heartbeat.
Tip: Avoid sharing a single resistor across multiple LEDs; give each LED its own current limit. - 12
Document your setup and plan next steps
Record the final circuit diagram, component values, and code snippets. Outline potential enhancements such as PWM brightness control or integrating with a sensor to trigger blinking.
Tip: Create a reusable template so you can duplicate this project for future learning.
Quick Answers
Can I make a blinking light without any microcontroller in Tinkercad?
Yes. The 555 timer path demonstrates a hardware-only approach to blinking LEDs, using RC timing to drive the LED via the chip's output.
Yes. You can blink without a microcontroller by using a 555 timer in astable mode.
How do I adjust the blink speed in the 555 timer setup?
Change the timing capacitor or one of the resistors in the RC network. Increasing the capacitor value or resistor values slows the blink; decreasing them speeds it up.
Change the RC values to tune the blink rate.
Is it easier to start with Arduino or 555 timer for beginners?
Starting with the 555 timer helps you learn hardware timing fundamentals, while Arduino is best for learning software timing and more complex patterns.
Both have their advantages; start with hardware timing for fundamentals, then try Arduino for coding.
Can I drive multiple LEDs from the same circuit in Tinkercad?
Yes, but each LED needs its own current-limiting resistor and, if using a single driver, ensure the driver can source enough current.
Yes, with proper current-limiting resistors for each LED.
What are common mistakes that prevent blinking?
Incorrect polarity, missing ground, wrong pin wiring, or resistor values that are too high or too low can stop blinking or reduce brightness.
Check polarity, ground, and correct wiring to fix most blinking issues.
